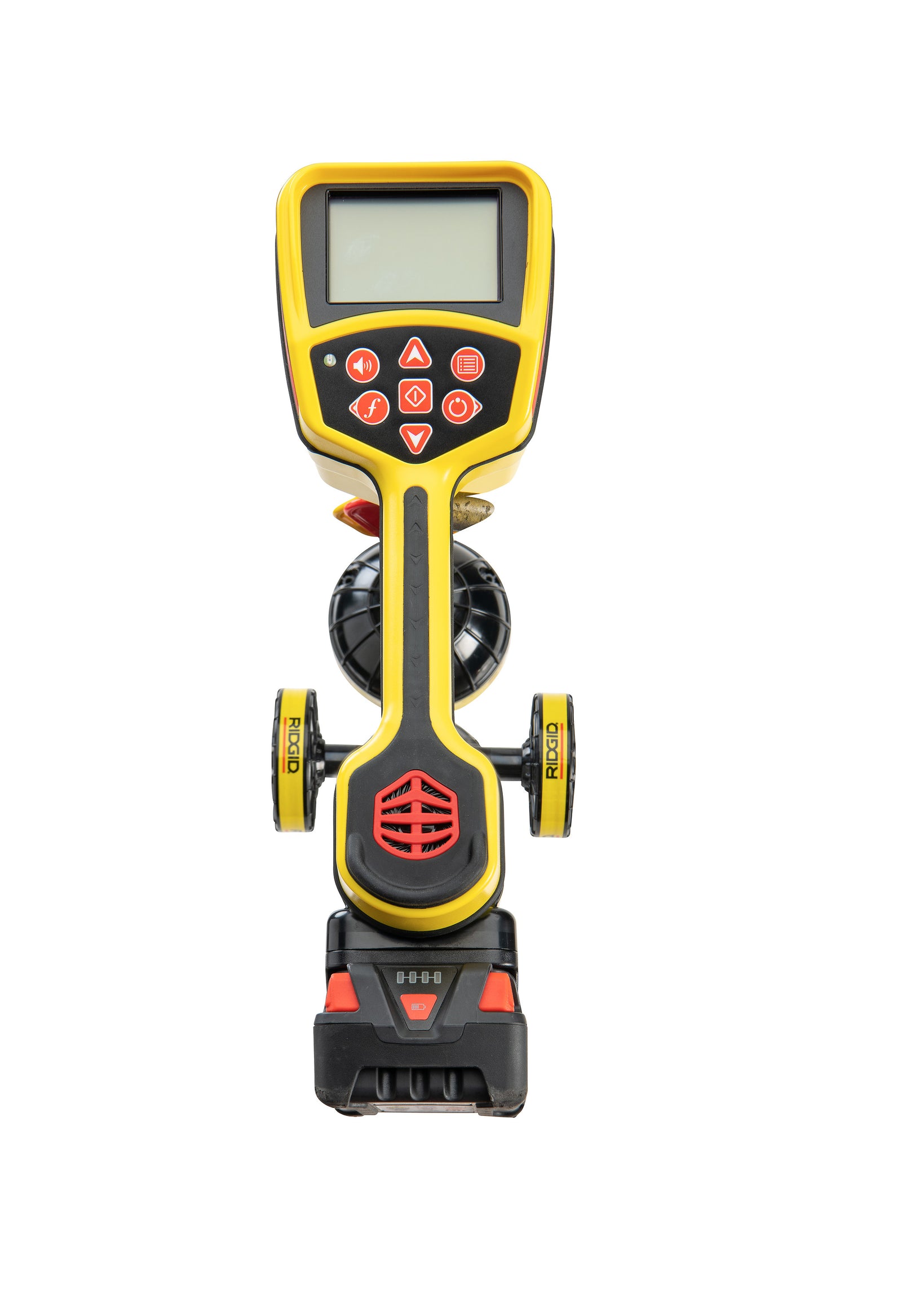

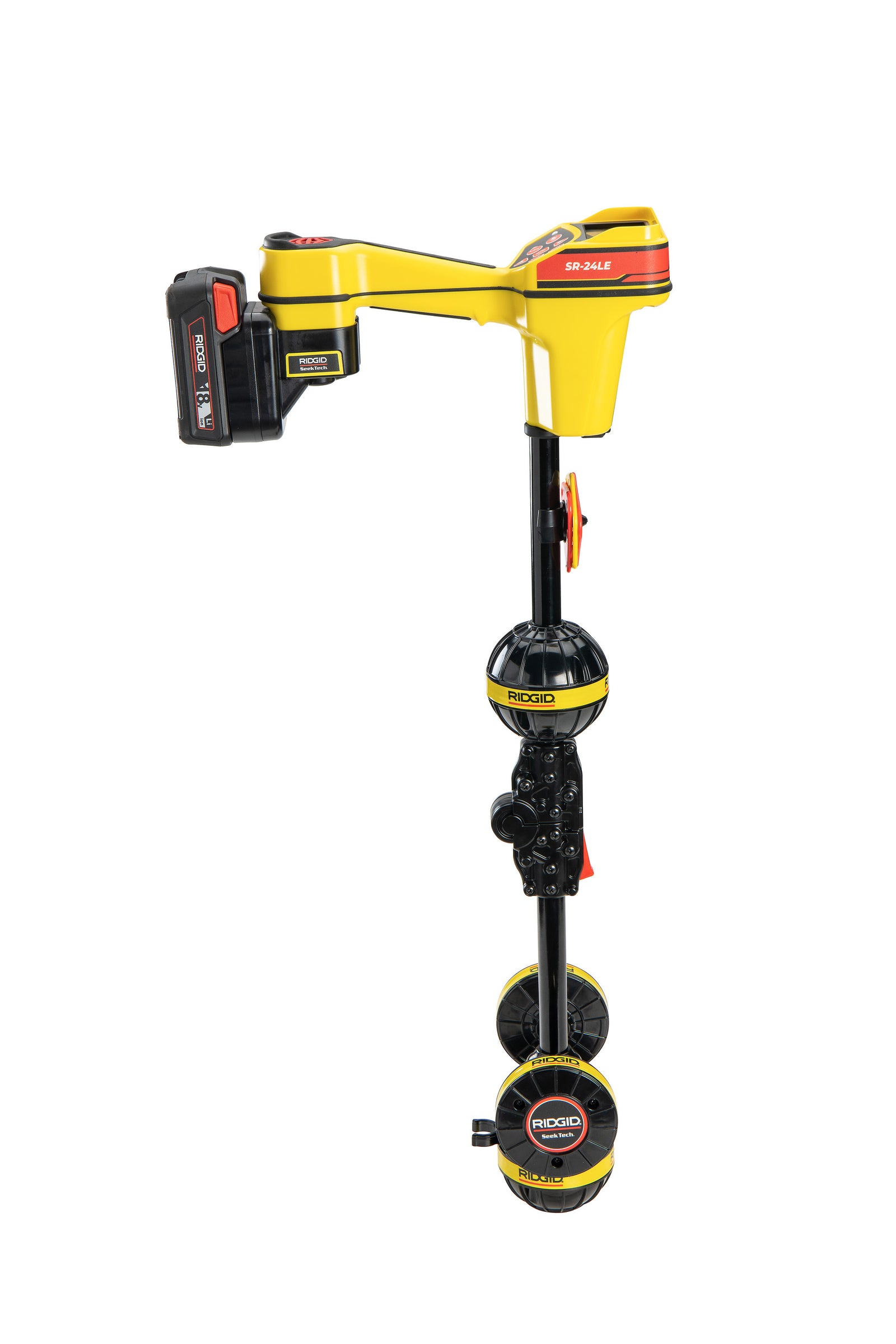

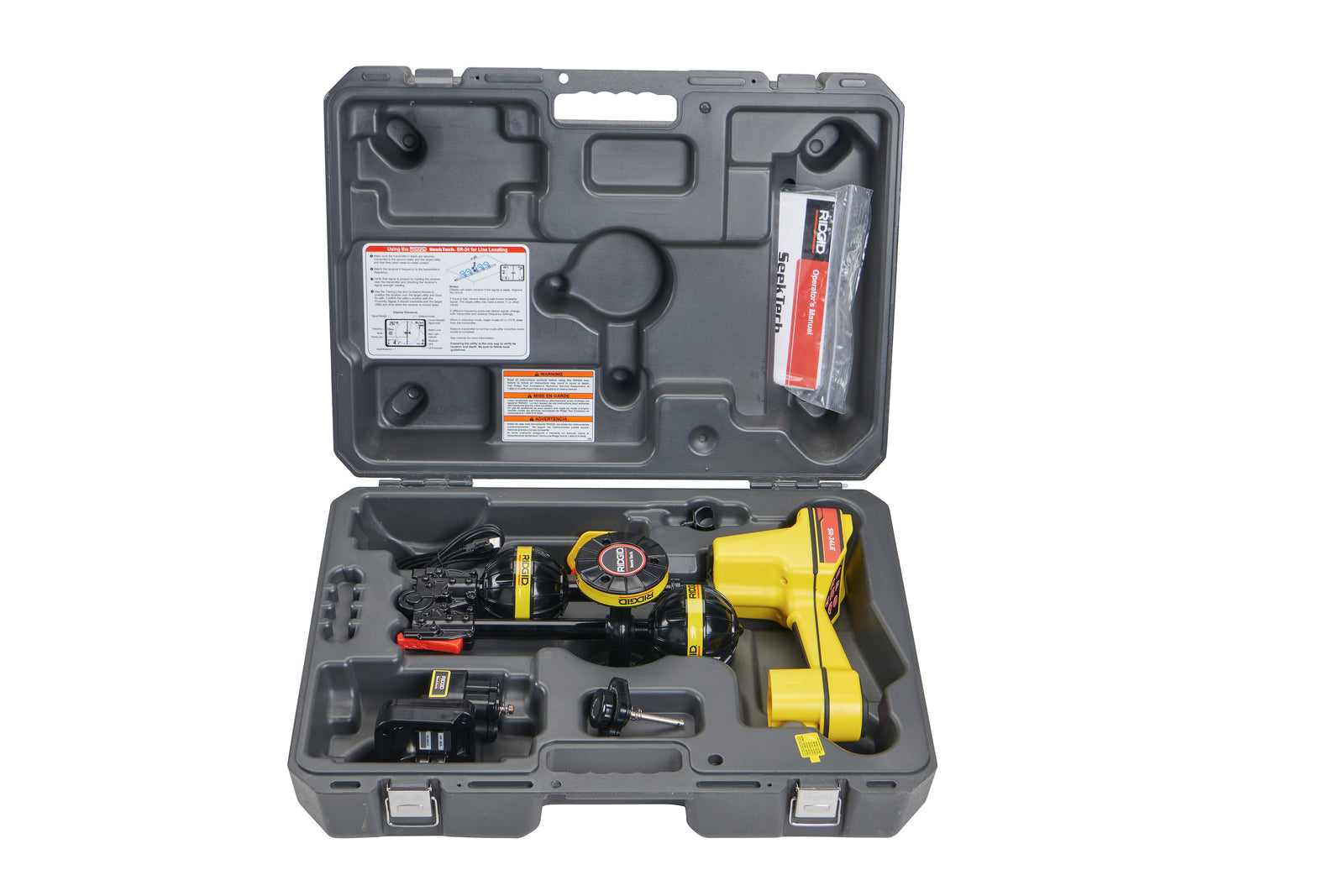

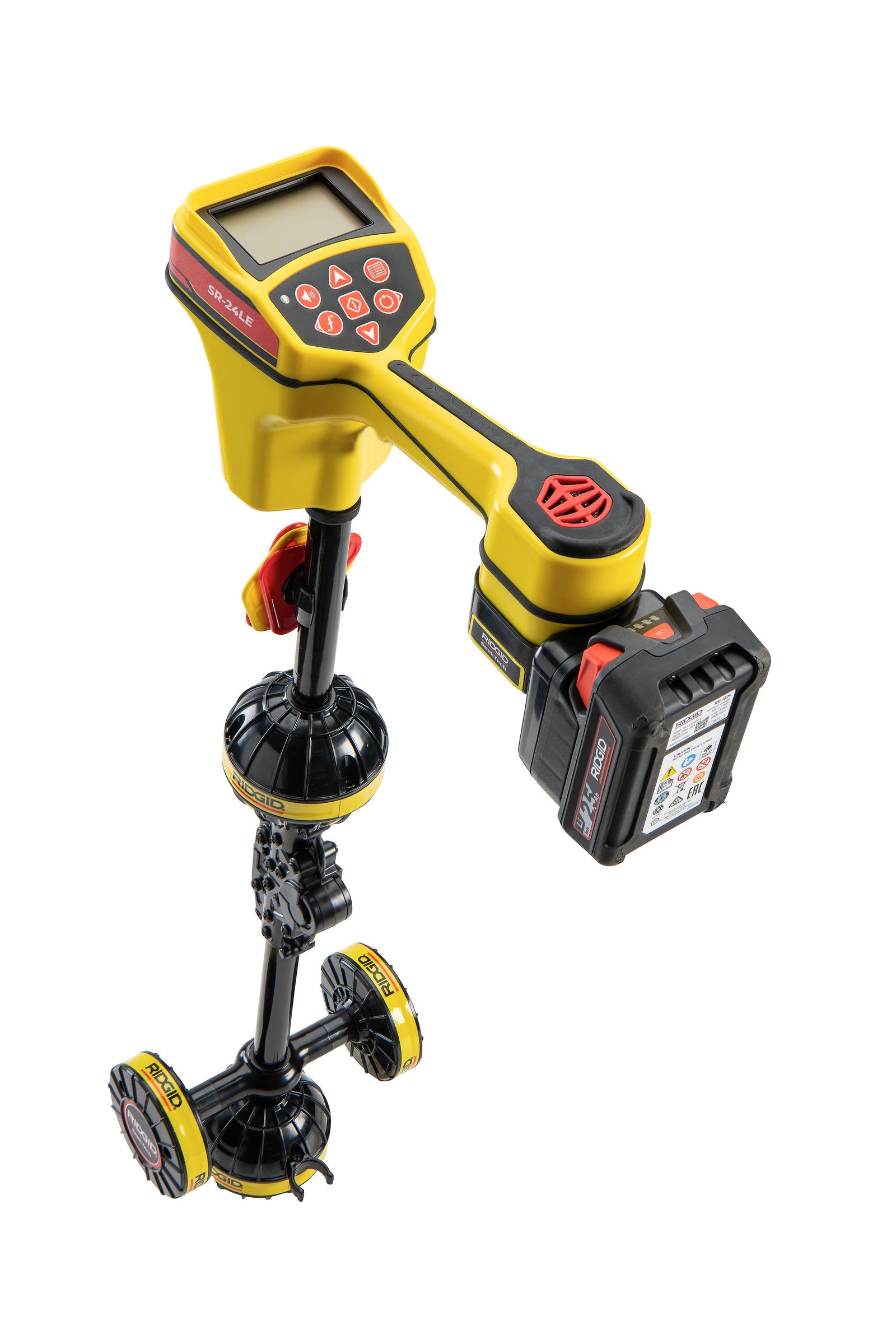

RIDGID SeekTech SR-24LE Line Locator with Bluetooth & GPS | 76898

RIDGID SeekTech SR-24LE Line Locator with Bluetooth & GPS | 76898 The RIDGID SR-24LE is a precision utility locating instrument with GPS and Bluetooth® Low Energy technology for easy integration with external data capture devices. The SR-24LE’s intuitive mapping display shows the utility's estimated position, direction and depth, while audio cues guide the operator over the utility.The RIDGID SR-24LE Line Locator combines precision locating with integrated Bluetooth® Low Energy and GPS capabilities to simplify utility mapping and documentation. Featuring omnidirectional antennas, intuitive guidance, and wireless connectivity, it helps professionals locate underground utilities quickly, accurately, and with confidence.The omnidirectional antenna array captures the complete signal field, making it easy to acquire the signal and trace its path for greater speed and accuracy as the gradient antenna pair provides left/right guidance for centering over the signal. Already equipped with a SeekTech 18V Battery Adapter, this locator is ready to power with a RIDGID 18V Lithium Ion battery (not included) for long-lasting power in the field.

Key features

• Bluetooth® Compatibility - Bluetooth® Low Energy technology streams data to smartphones, tablets or high-precision GPS instruments.
• Omnidirectional Antennas - Capture the complete signal field for faster signal acquisition and more accurate utility locating.
• Integrated Battery Adaptor - Equipped with a SeekTech Battery Adaptor for your RIDGID 18V Lithium Ion battery (battery purchased separately).
• Audio Guidance - Use audible tones and on-screen visuals to quickly center over the target utility.
• Delineation - Intuitive mapping display shows concealed utilities estimated position, direction, and depth.
• Mapping Display - View estimated utility position, direction, and depth for quick interpretation in the field.
• Omnidirectional Antennas - Capture the complete signal for greater speed and accuracy.

Specifications

• Programmable Line & Sonde Frequencies : Any from 10Hz to 35kHz
• Programmable Line & Sonde Frequencies : Any frequency from 10 Hz to 35 kHz
• Default Active Line Trace Frequencies : 128Hz, 1kHz, 8kHz, 33kHz
• Default Active Line Trace Frequencies : 128 Hz, 1 kHz, 8 kHz, 33 kHz
• Passive Power Frequencies : 50Hz, 60Hz
• Passive Power Frequencies : 50 Hz, 60 Hz
• Passive Frequency Ranges : <4kHz, 4kHz - 15kHz, 15kHz - 30kHz
• Passive Frequency Ranges : <4 kHz, 4–15 kHz, 15–30 kHz
• Programmable Line Trace Frequencies : Up to 35kHz
• Programmable Line Trace Frequencies : Up to 35 kHz
• Sonde Frequencies : 16Hz, 512Hz, 33kHz
• Sonde Frequencies : 16 Hz, 512 Hz, 33 kHz
• Wireless Technology : Bluetooth® Class 1 Low Energy
• Wireless Technology : Wireless connectivity Class 1 Low Energy
• Wireless Range : 1093 yds (1000 m)

Included

66503: 18V Locator Adaptor

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 76898
• Model: SR-24LE
• UPC / GTIN: 0095691000224

UK supply and support

Rausch UK supplies professional RIDGID equipment and can help confirm compatibility, accessories and replacement requirements before ordering.
