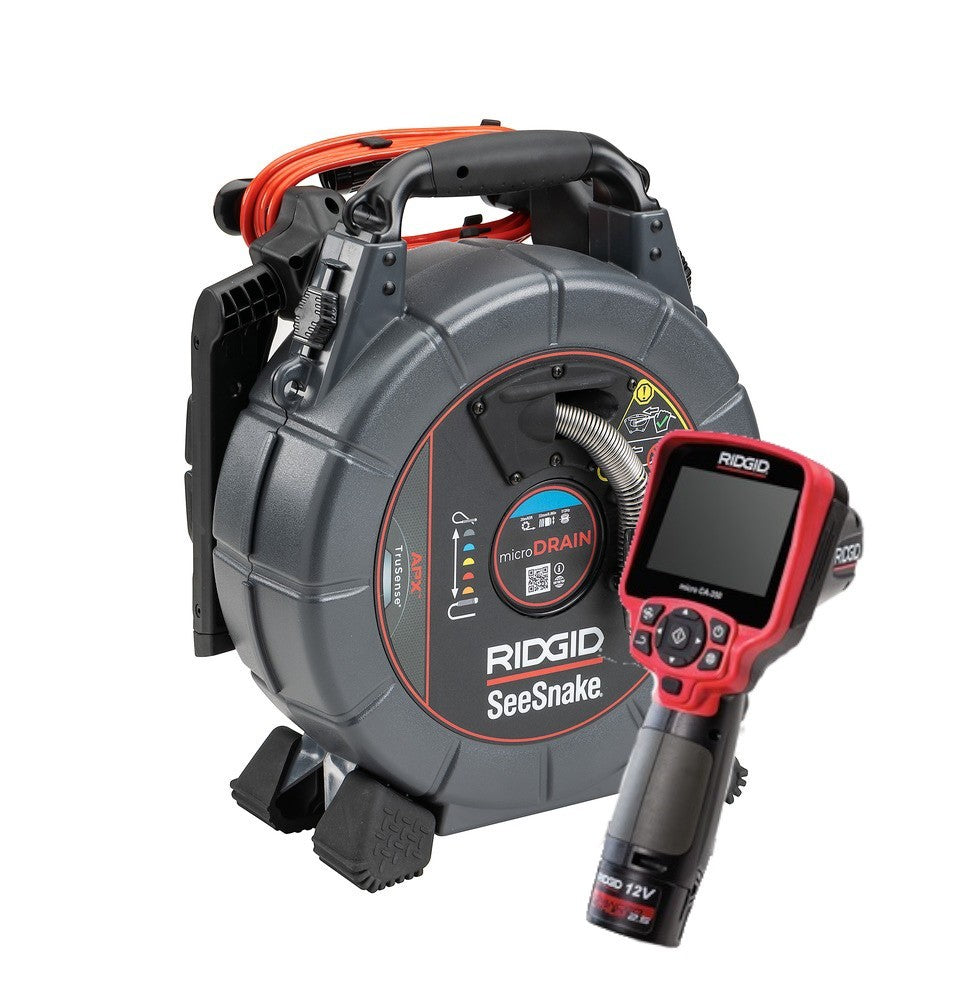

RIDGID SeeSnake® microDrain APX Inspection Camera with TruSense Technology + CA350 Monitor | 77578

RIDGID SeeSnake® microDrain APX Inspection Camera with TruSense Technology + CA350 Monitor is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

Line Capacity – 1 1/4″ to 3″ (32 mm to 75 mm)

Key features

The RIDGID SeeSnake® microDRAIN APX™ with TruSense is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexibility push cable and a small-diameter camera design allows inspection through small-diameter pipes, p-traps, and small-radius bends that other inspection systems often cannot inspect. It offers enhanced camera functionality including TruSense technology and auto-image flip for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microDRAIN APX includes a kickstand for use with the CSx Via™ and offers enhanced stability.

Standard Equipment

• 71498 – Spare, Slipring Connector

• 67307 – SeeSnake Interconnect Cord 33/10′ (10 m/3 m)

• 67808 – SeeSnake® CA-350 Adapter and Docking Handle

• 55903 – CA-350 Handheld Inspection Camera, includes 12V Battery and Charger

Key features

• Flexibility – High-flex push cable navigates tight turns and small diameter pipes – pass multiple 90° bends in most 1.5″ (40 mm) drain lines.

• Enhanced – Camera Functionality – APX camera reels offer TruSense technology with HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.

• Auto-Image Flip – Rotates camera image without any moving parts when connected to CSx Wi-Fi Connected monitor.

• Portability – Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.

• Stability – Built-in kickstand for improved ergonomics can be used upright, at a 45° angle for improved leverage on four feet to provide clearance for use with CSx Via.

• Durability – Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.

• Visibility – Camera heads feature long-lasting high-efficiency LEDs that deliver better in-pipe visibility and higher colour accuracy.

• Traceability – Integrated 512 Hz sonde allows for easy line tracing and locating.

Specifications

Camera Diameter – 22 mm

Camera Type – Auto-Image Flip

Resolution – 640 x 480 pixels

Line Capacity – 1 1/4″ to 3″ (32 mm to 75 mm)

Push Cable Length – 65 ft (20 m)

Push Cable Diameter – 0.33″ (8.3 mm)

Cable Flexibility – High Flex

Push Cable Minimum Bend Radius – 0.75″ (19.1 mm)

Sonde – 512 Hz, Integrated

Weight – 11.6 lbs (5.25 kg)

Length – 13.3 in (337 mm)

Width – 8.8 in (224 mm)

Height – 16.2 in (411 mm)

Drum Diameter – 12 in (305 mm)

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 77578
• UPC / GTIN: 095691775788
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
