RIDGID
Threading Machine

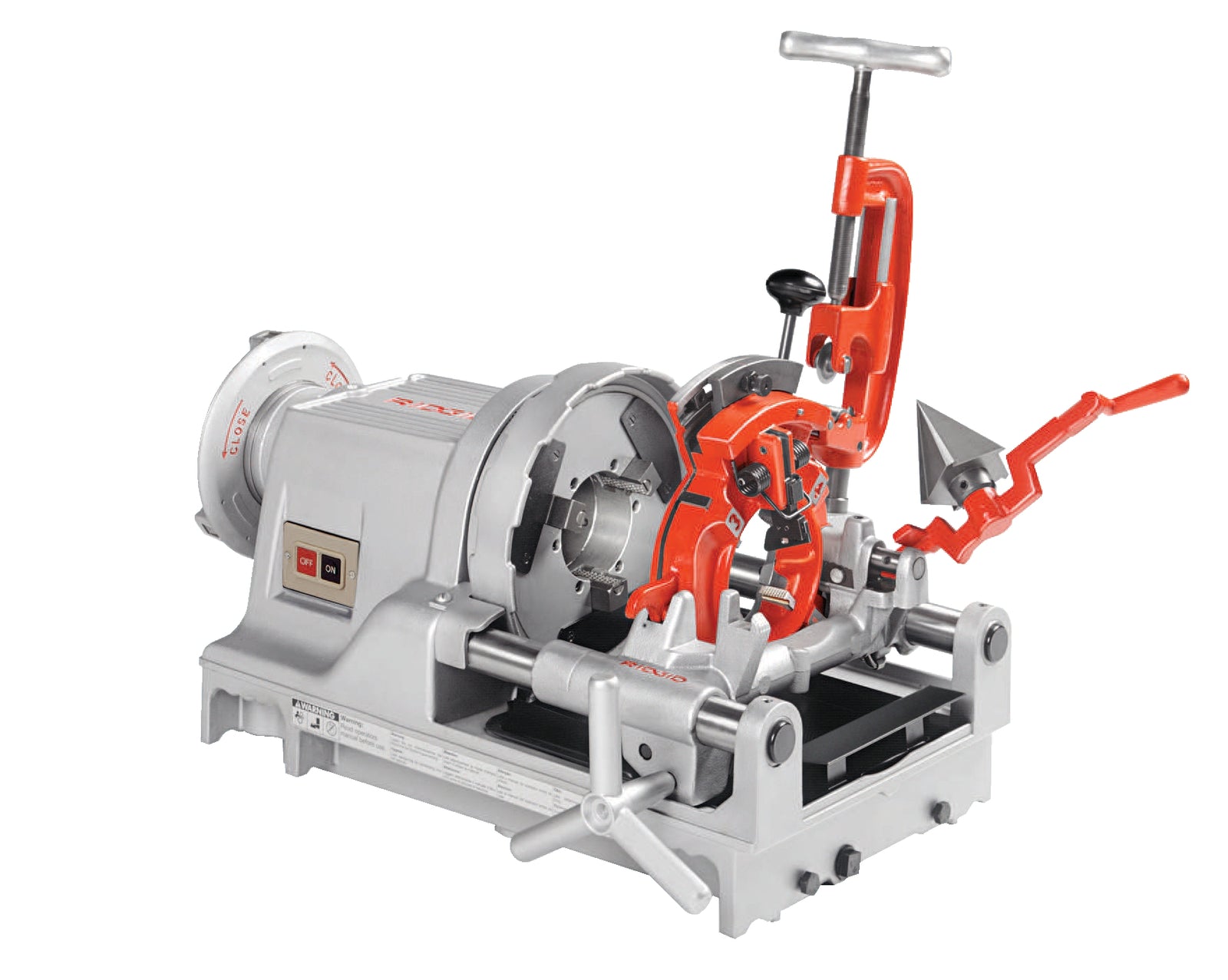

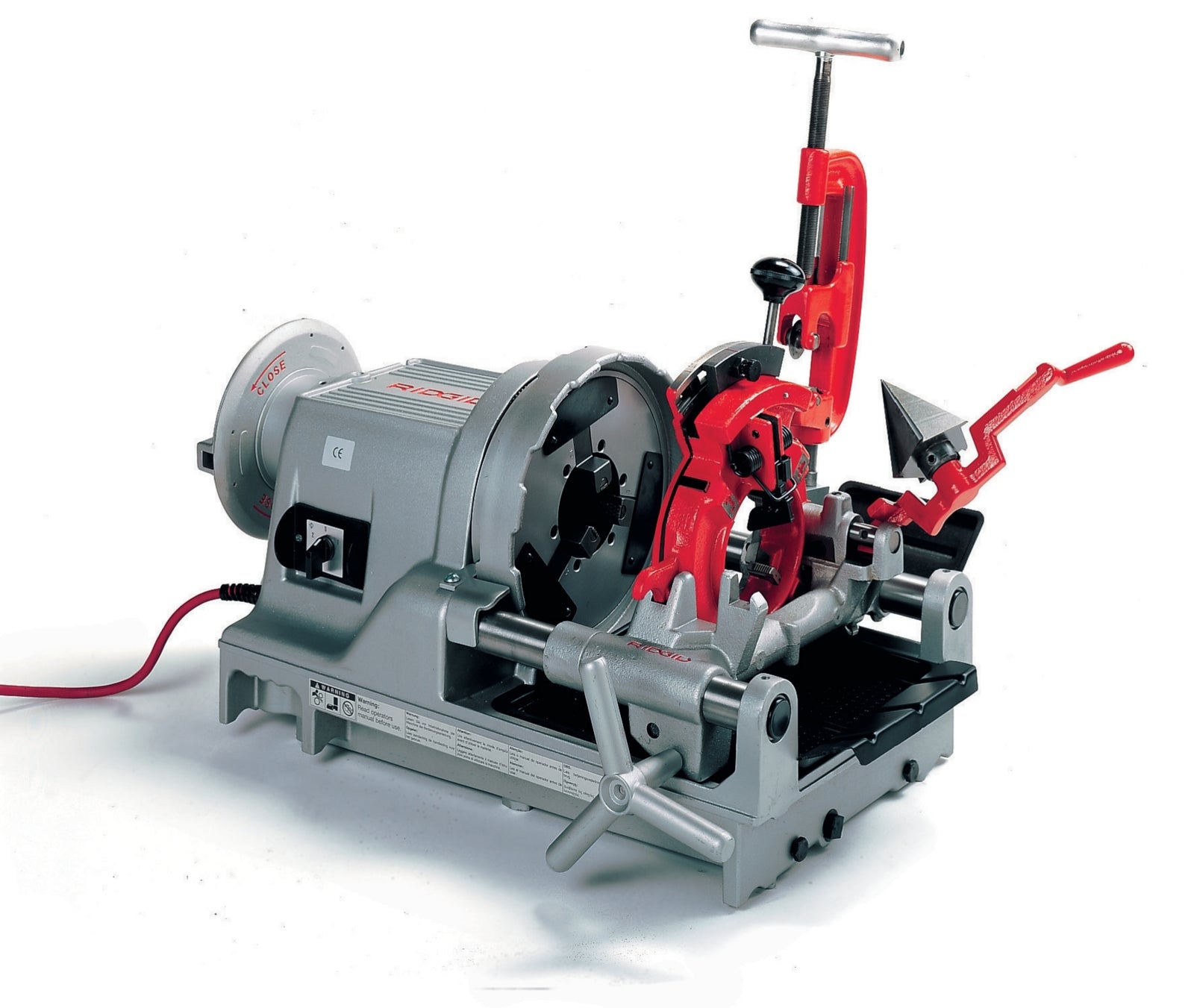

RIDGID Model 1233 Power Threader | 20215
RIDGID Model 1233 Power Threader is professional equipment for preparing and threading pipe.Switches: Reverse / Off / Forward, heavy-duty, rotary-type plus integral footswitchKey features Suitable for use with RIDGID 916 & 918 Roll Groovers Self Opening 815A Self...
£8,677.00
ex VAT
£10,412.40
inc VAT
VAT and delivery calculated where applicable.
Not sure this is the right product?
Ask the Rausch UK team before ordering. Contact us
Ask the Rausch UK team before ordering. Contact us
Rausch UK support
Technical support from our UK team
Professional equipment
Equipment for drainage, utilities and industry
Need help choosing?
Speak to our team before you order
Product information
At a glance
SKU
20215
Brand
RIDGID
Product type
Threading Machine
Product overview
About this product
Product information, features and application details.
RIDGID Model 1233 Power Threader is professional equipment for preparing and threading pipe.
Switches: Reverse / Off / Forward, heavy-duty, rotary-type plus integral footswitch
Key features
- Suitable for use with RIDGID 916 & 918 Roll Groovers
- Self Opening 815A
- Self Opening 928A
- Cat No 20215
- Model 1233 Power Threading Machine 230v
- Cat No 20220
- Model 1233 Power Threading Machine 115v
Product information
Bolt: 10-52mm up to 30 RC
Features:
Motor: 1.7 kW Universal 50-60 Hz
Switches: Reverse / Off / Forward, heavy-duty, rotary-type plus integral footswitch
Spindle Speed: 36 RPM
Chuch: Hammer-type with replaceable, rocker-action jaw inserts
Rear Centering Device: Cam action
Oiling System: Adjustable flow, through the head, with an integral oil reservoir. Self-priming, constant-flow, geroter pump
Standard Equipment:
Die Heads: Model 815A 1/8" - 2", BSPT; Model 928A 2 1/2" - 3", BSPT
Dies: 1/2" - 3/4" BSPT Alloy, 1" - 2" BSPT Alloy, 2 1/2" - 3" BSPT High Speed
Cutter: Model 763, 1/4" - 3", self-centering, with E-1032 cutter wheel
Reamer: Model 743, 1/4" - 3", 5-Fluted
Oil: 5 litres thread cutting fluid
Die Heads:
Available Options:
Product identification
- Brand: RIDGID
- Manufacturer part number / MPN: 20215
- Product type: Threading Machine
UK supply and support
Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
Technical support
Need help finding the right equipment?
Speak to Rausch UK for product advice, compatibility checks, demonstrations, spares and technical support.
