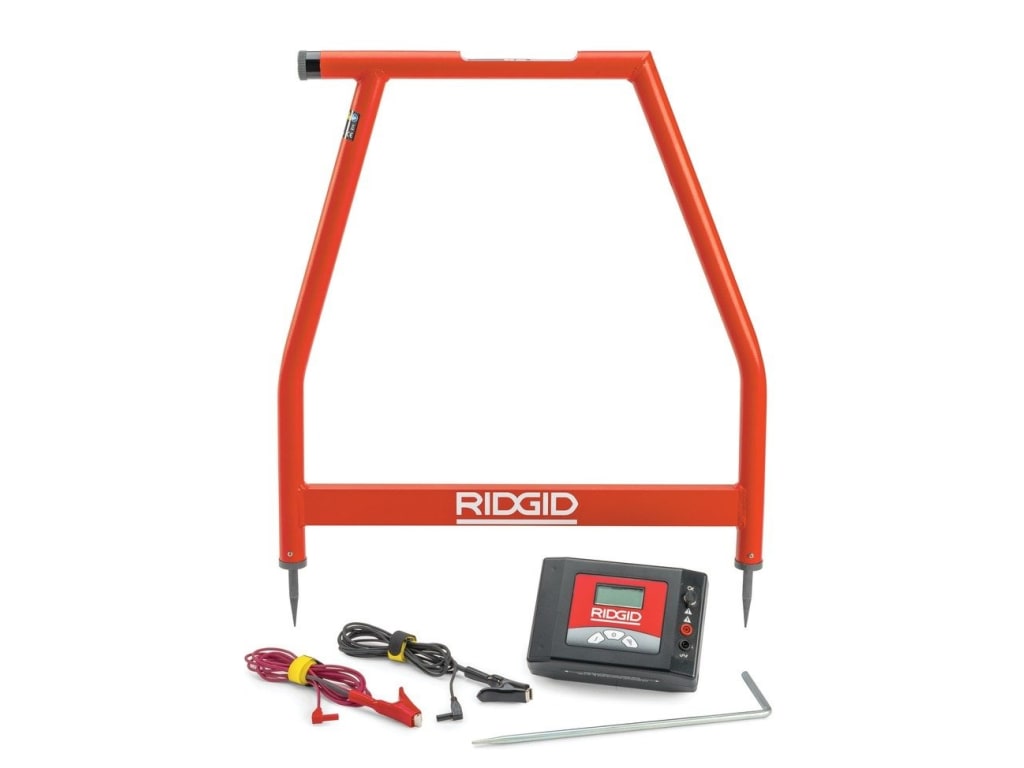

RIDGID A-Frame Fault Locator

RIDGID A-Frame Fault Locator is professional locating equipment for identifying buried utilities, cables or pipe routes.

Path locating: 128 Hz, 1 kHz, 8 kHz, 33kHz, 93 kHz

Key features

• Purpose-built directional fault finder
• Locates insulation faults up to 2 megohms
• Reference readout to determine fault location
• Durable, lightweight powder-coated aluminum frame
• Weather proof membrane buttons
• FT-103 TRANSMITTER
• Load Range 5 Ω to 2M Ω
• Output Power Up to 3 Watts (Low, medium and high settings)
• Output Voltage 5 Volts - 600 Volts
• Power Supply 8 × C-Cell Batteries (Included)
• Dimensions (LxWxH) 8.5" x 5.8" x 2.5"
• FR-30 A-FRAME RECEIVER
• Fault Finding Depth Up to 20' (depending on conditions)
• Fault Finding Length Up to 3 miles (depending on conditions)
• Display Black and White LCD
• Power Supply 6 × AA Batteries
• Dimensions (LxWxH) 30.3" x 30.4" x 1.5"

Product information

Made in the U.S.A.

Operating Frequencies Direct Fault Finding: 797 Hz - “dFF” displayed

Path locating: 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz

Direct Connect: 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz

Inductive Clamp: 8 kHz, 33 kHz, 93 kHz

Broadcast Inductive: 33 kHz, 93 kHz

Product identification

• Brand: RIDGID
• Product type: Utility Locator

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
