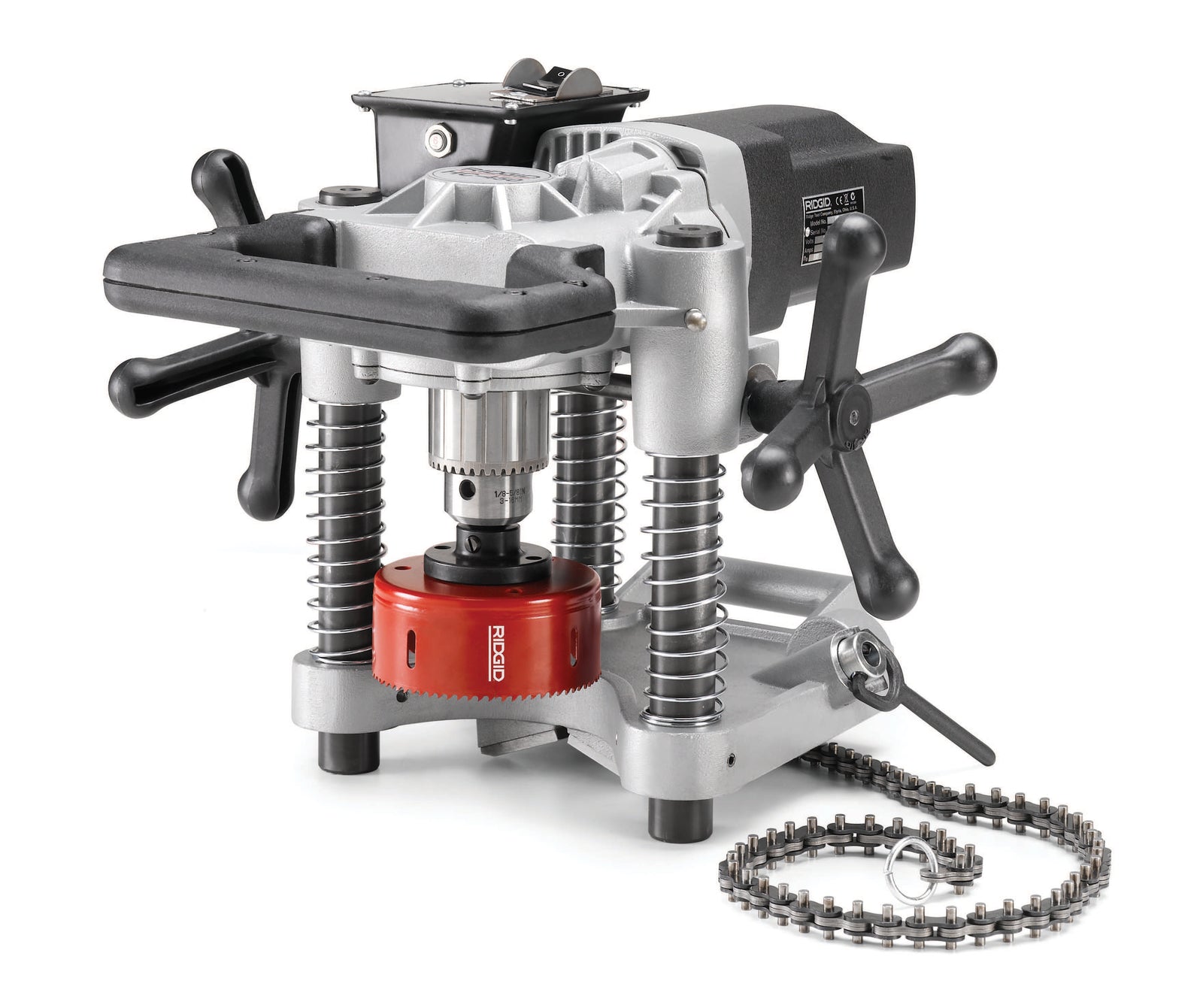

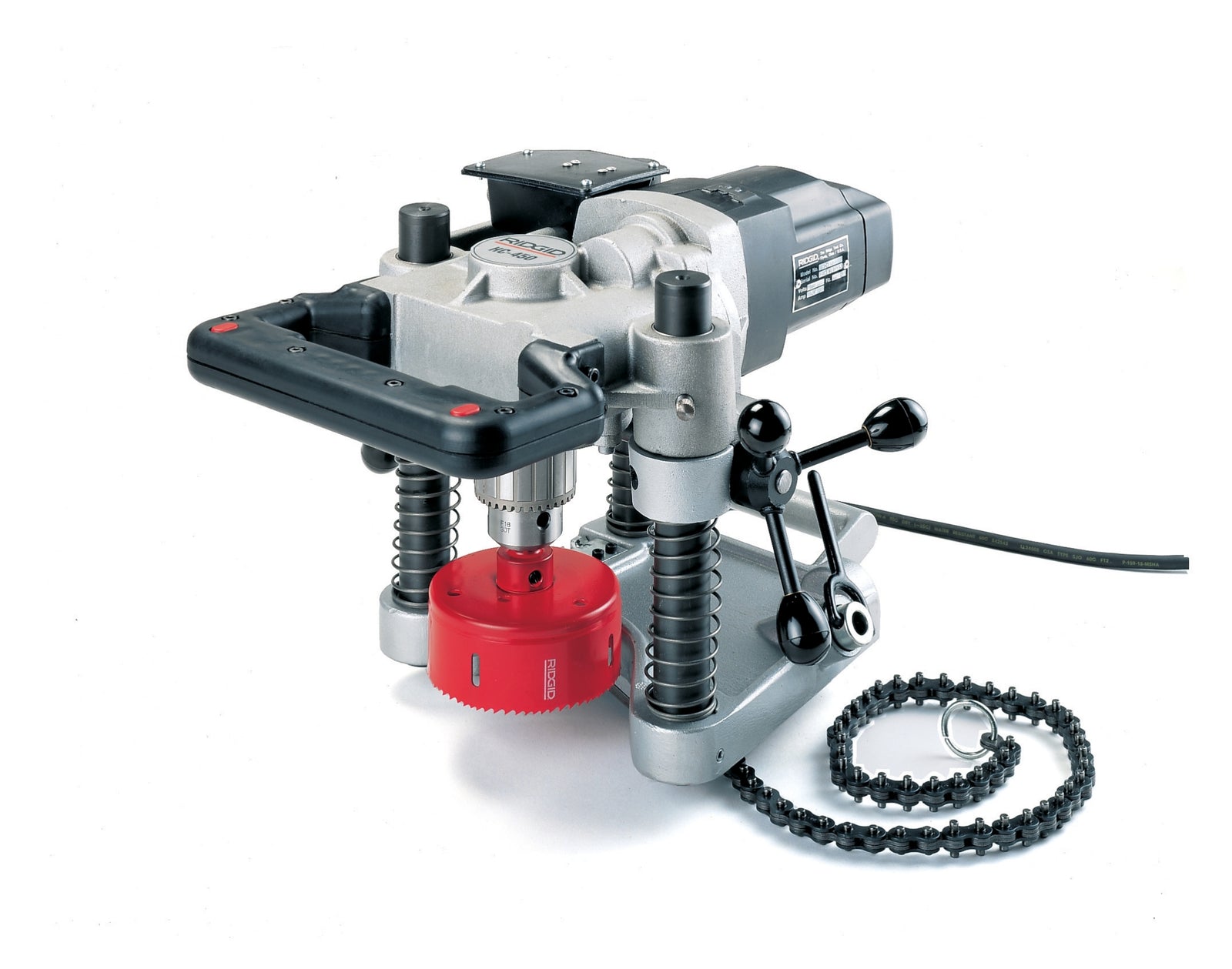

RIDGID HC450 4.75 inch (120 mm) Hole Cutting Tool 115V

RIDGID HC450 4.75 inch (120 mm) Hole Cutting Tool 115V is a hole-cutting accessory for professional drilling and installation work.

Key features

RIDGID Model HC450 is engineered for continuous 1⁄4″ (6 mm) to 43⁄4″ (120 mm) hole cutting in and up to 8″ (203 mm) diameter steel unpressurized pipe.

The built-in level ensures line up for multiple holes when branching lines using Mechanical T, Vic-O-Let fittings or welded saddles. Dual-side feed handles and switches provide easier operation from any angle. In addition, the HC450’s heavy-duty chuck accommodates 1⁄8″ (3 mm) to 5⁄8″ (16 mm) arbors.

The HC450 is ideal for mechanical, industrial maintenance and fire protection contractors since it cuts holes into a wide variety of pipe materials. No off-the-shelf drill-based hole cutter compares in performance or durability to the rugged purposed-built Model 450:

• 13 amp 1.800 W worm-gear driven motor delivers unmatched hole cutting power for both thin and thick wall pipes.
• Engineered for 1⁄4″ (6 mm) to 43⁄4″ (120 mm) continuous dry or oiled hole cutting.
• Quickly mounts onto 11⁄4″ (32 mm) to 8″ (200 mm) diameter pipe.
• RPM maximizes holesaw life and does not spray lubricant or chips.
• Only 111⁄2″ (29 cm) high for low clearance jobs.
• Dual-side controls provide easy operation.
• GFCI and a built-in breaker for operator protection.
• Chuck accommodates 1⁄8″ (3 mm) to 5⁄8″ (16 mm) arbors.
• Two carrying handles ease mounting and alignment.
• Built-in level for multiple hole alignment.

Standard Equipment

• One Hole Cutting Tool.
• One 5⁄8″ (16 mm) Arbor only for Hole Saws.
• One Chuck Key.

Specifications

• Motor: Universal, 115 V or 230 V, 1.800 W.
• RPM: 110 (no load).
• Hole Cutting Capacity: up to 43⁄4″ (120 mm).
• Chuck Size: 1⁄8″ (3 mm) – 5⁄8″ (16 mm).
• Pipe Diameter Mounting Range: 11⁄4″ (32 mm) to 8″ (200 mm).
• Weight: 42 lbs. (19 kg).
• Height: 111⁄2″ (29 cm).
• Length: 17″ (43 cm).
• Width: 17″ (43 cm).

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 25668
• UPC / GTIN: 095691256683
• Product type: Hole Saw
