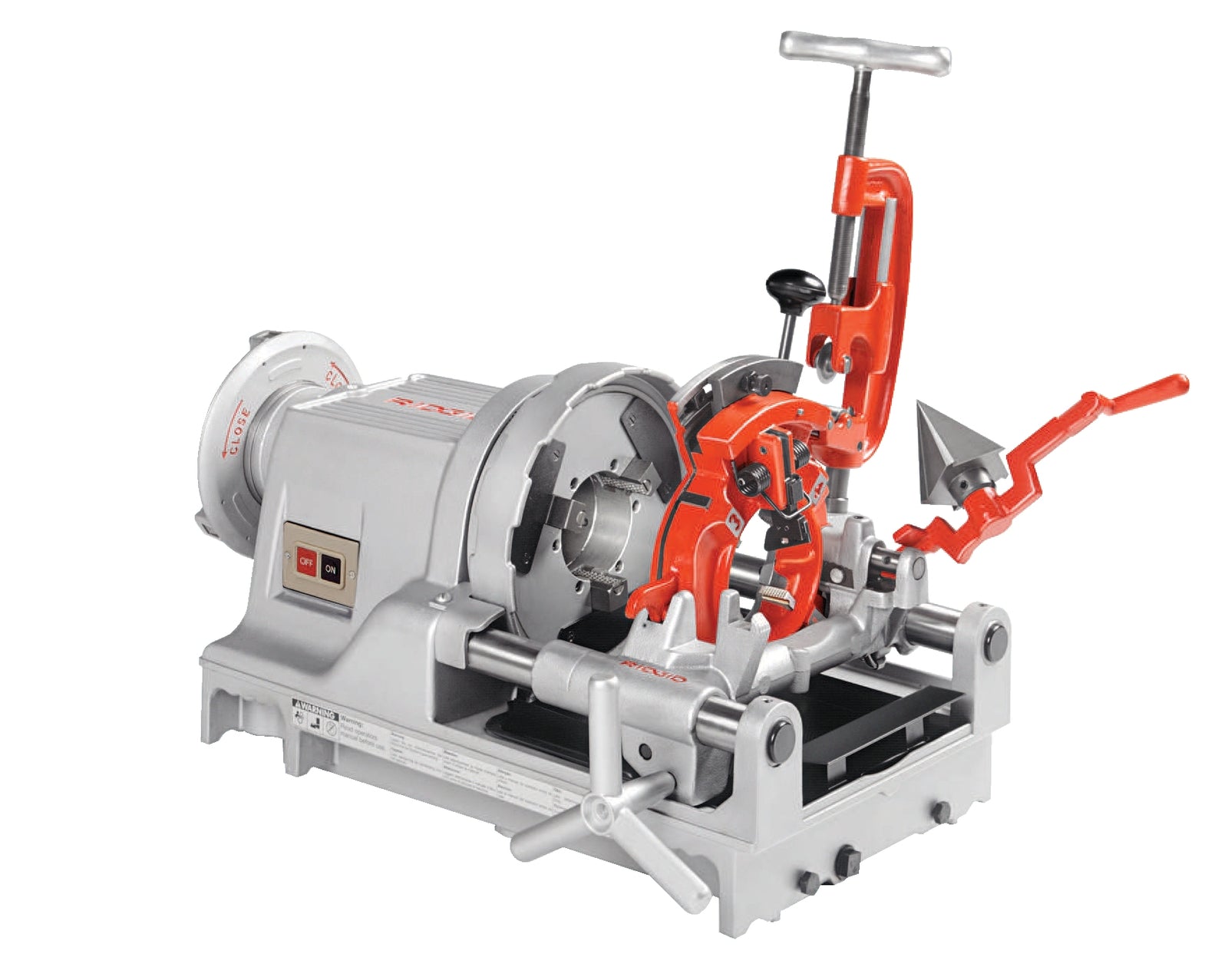

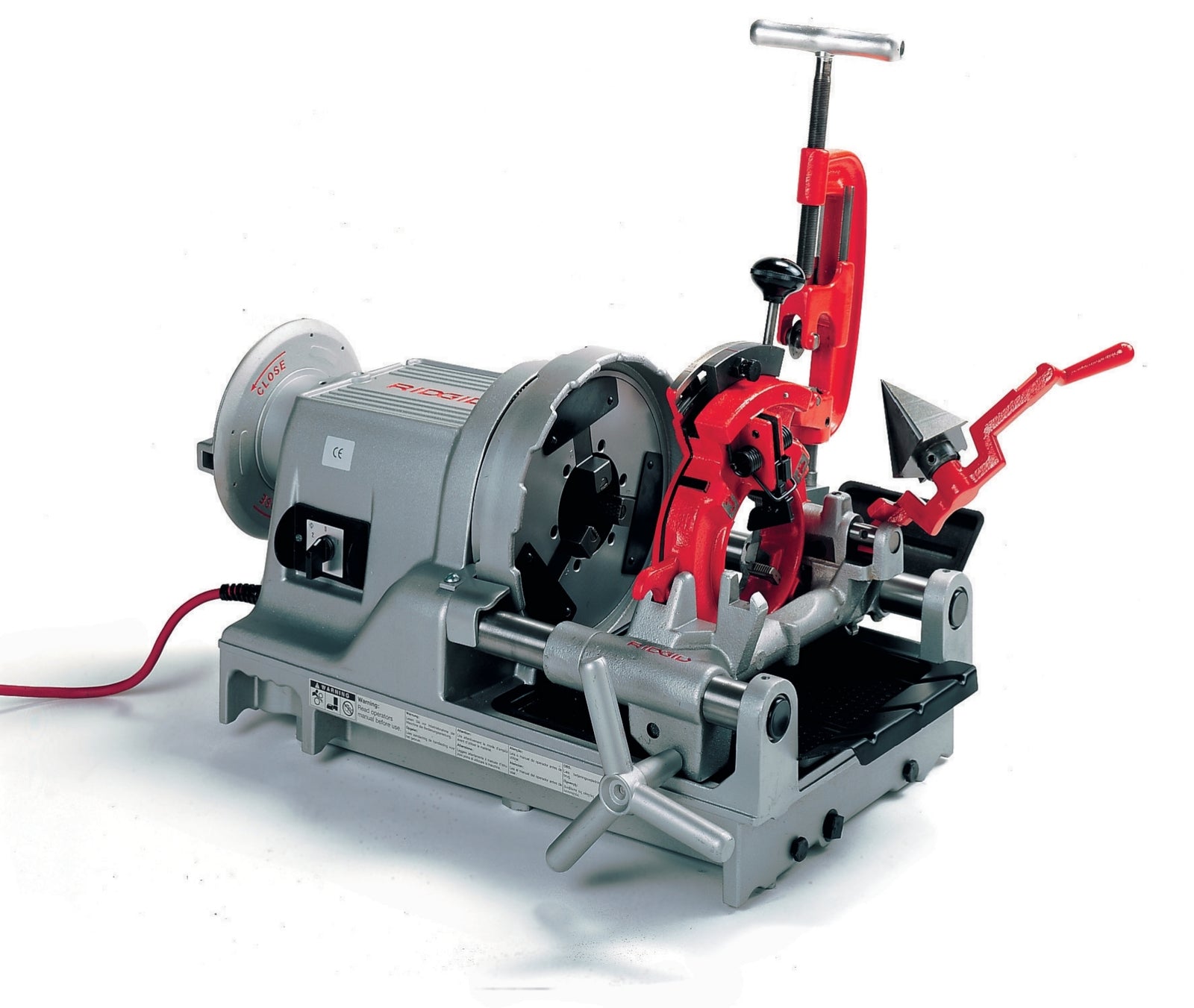

RIDGID Model 1233 115v, Universal Threading Machine | 20220

SKU: 20220 Brand: RIDGID

RIDGID Model 1233 115v, Universal Threading Machine is professional equipment for preparing and threading pipe.Key featuresCapacities Pipe: 1⁄4 – 3″ (8 – 80 mm) 21⁄2 – 4″ (65 – 100 mm) with 141 Geared Threader. Bolt: 10 –...

£6,050.00 ex VAT
£7,260.00 inc VAT

VAT and delivery calculated where applicable.

Not sure this is the right product?
Ask the Rausch UK team before ordering. Contact us
Rausch UK support Technical support from our UK team
Professional equipment Equipment for drainage, utilities and industry
Need help choosing? Speak to our team before you order

Product information

At a glance

SKU 20220
Brand RIDGID
Product type Threading Machine

Product overview

About this product

Product information, features and application details.

RIDGID Model 1233 115v, Universal Threading Machine is professional equipment for preparing and threading pipe.

Key features

Capacities

  • Pipe: 1⁄4 – 3″ (8 – 80 mm) 21⁄2 – 4″ (65 – 100 mm) with 141 Geared Threader.
  • Bolt: 10 – 52 mm up to 30 RC.

Technical Specifications

  • Motor: 1,7 kW Universal 50 – 60 Hz.
  • Switches: Reverse / Off / Forward, heavy duty, rotary-type plus integral footswitch.
  • Spindle Speed: 36 RPM.
  • Chuck: Hammer-type with replaceable rocker-action jaw inserts.
  • Rear Centering Device: Cam action.
  • Cutter: Model 763, 1⁄4 – 3″, self-centering, with E-1032 cutter wheel.
  • Reamer: Model 743, 1⁄4 – 3″, 5-Fluted.
  • Oiling System: Adjustable flow; through-the head, with an integral oil reservoir. Self-priming, constant-flow, geroter pump.

Standard Equipment

  • Die Heads: Model 815A 1⁄8 – 2″, BSPT; Model 928A 21⁄2 – 3″, BSPT.
  • Dies: 1⁄2 – 3⁄4″ BSPT Alloy. 1 – 2″ BSPT Alloy. 21⁄2 – 3″ BSPT High Speed.
  • Cutter: Model 763, 1⁄4 – 3″, self-centering, with E-1032 cutter wheel.
  • Reamer: Model 743, 1⁄4 – 3″, 5-Fluted.
  • Oil: 5 litres thread cutting fluid.

Product identification

  • Brand: RIDGID
  • Manufacturer part number / MPN: 20220
  • UPC / GTIN: 095691202208
  • Product type: Threading Machine

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
