Witson Drain Inspection Camera

Witson Drain Inspection Camera is a compact, case-mounted inspection system for drains, pipes and other confined internal spaces. Choose the camera head and cable length to suit the job.

Choose the right camera head

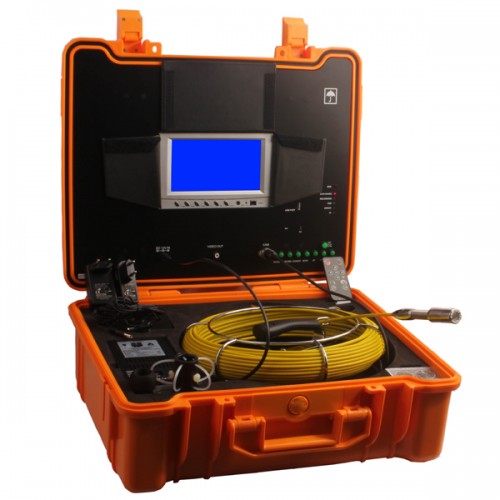

• 22mm: general-purpose drain inspection, suitable for pipes from approximately 25mm to 100mm; 420 TV line colour CMOS, 120° viewing angle and 12 LEDs.

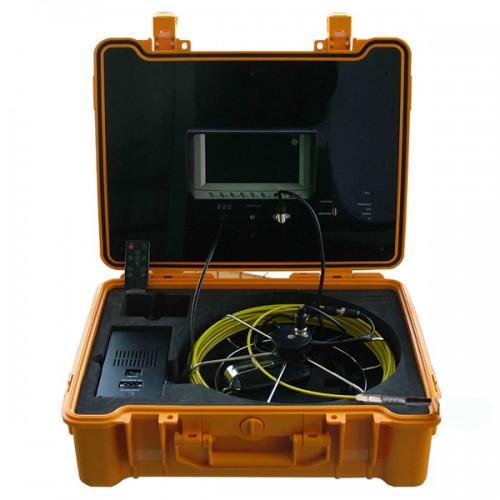

• 12mm: for smaller access points and pipework from approximately 14mm to 25mm; 420 TV line colour CMOS, 120° viewing angle and 6 LEDs.
• 13.5mm: compact higher-resolution option for pipework from approximately 15mm to 25mm; 800 TV line colour CMOS, 60° viewing angle and 8 LEDs.

System features

• 20m or 40m fibreglass push-rod cable, depending on variant
• 7" TFT LCD monitor, 800 x 480 resolution
• Video recording to USB drive or Micro SD card (up to 32GB)
• Stainless-steel camera construction with sapphire glass lens cover
• Rechargeable 12V battery with mains power option
• Remote control handset
• Protective storage case

This is the straightforward fixed-head option in the Rausch drain inspection range. For an upright picture choose the Self-Levelling Drain Inspection Camera; for locating capability choose the Drain Inspection Camera with 512Hz Sonde.

Rausch UK support

Product advice, demonstrations, UK technical support, spare parts and after-sales service are available directly from Rausch UK.
