Why Camera Head Size Matters More Than It Looks

Camera head diameter is one of the first specifications people look at when comparing drain inspection systems, but it is often treated as a simple question of whether the camera will fit into the pipe.

In practice, head size affects much more than access. It influences bend capability, image stability, centring, lighting, locating and the type of inspection the system can realistically perform.

Smaller heads are about access

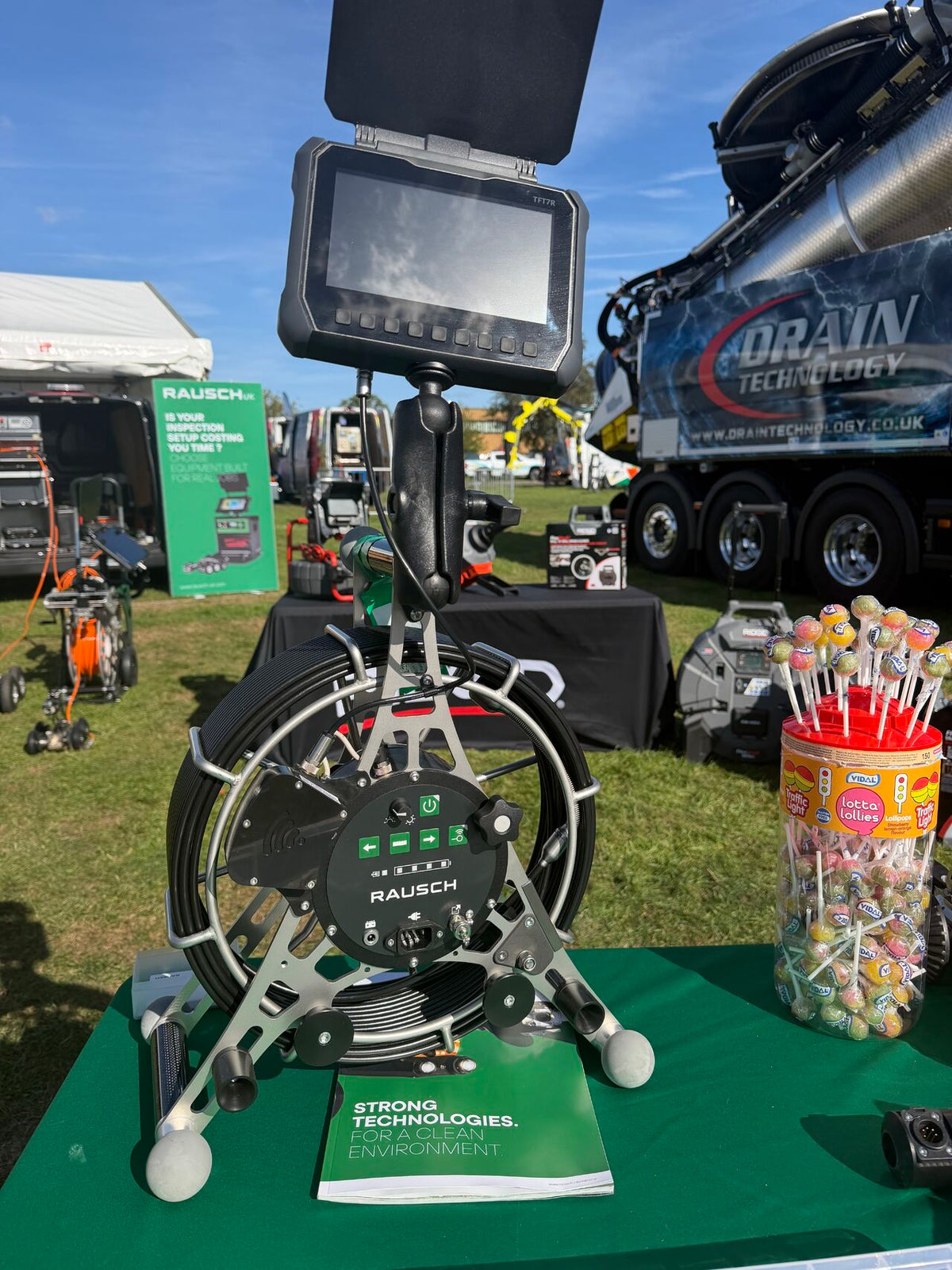

Small camera heads are useful where the inspection point is tight, bends are restrictive or the pipe diameter is small. They can reach areas that larger cameras simply cannot enter.

That can be particularly important in building drainage, small-diameter pipework and specialist applications where access is the main challenge. A smaller head can also help a push rod negotiate tighter bends.

Larger heads bring different advantages

As camera size increases, there is more room for stronger lighting, larger optics and features such as self-levelling or pan-and-tilt mechanisms. In larger pipes, a bigger camera can also be easier to centre and can provide a more useful perspective of the pipe wall.

This becomes increasingly important when the purpose of the survey moves beyond simply confirming that a pipe is open or blocked and towards detailed condition assessment.

Centring changes the inspection

A camera that sits on the bottom of a larger pipe gives a very different image from one positioned nearer the centre. Skids, spacers and roller systems can therefore be just as important as the camera head itself.

The correct centring arrangement helps create a more consistent view of the full circumference of the pipe and makes defects easier to interpret.

Do not look at diameter in isolation

A 13 mm, 18 mm, 29 mm or 50 mm camera head is not automatically better or worse than another. Each is designed around a different set of applications.

The right choice depends on the smallest access point, the bends in the run, the working pipe diameter, the required push distance and how much detail the survey needs to capture.

Match the camera to the inspection objective

If the job is simply to get visual access into a very small pipe, a compact axial camera may be exactly what is required. If the objective is a detailed survey of a larger sewer, a larger self-levelling or pan-and-tilt camera may provide much more useful information.

That is why camera head diameter should be treated as part of the whole inspection setup, not as a standalone specification. The best system is the one that gives the operator the right combination of access, control and useful image quality for the work being carried out.
