Industrial videoscopes have been used for years to inspect areas that would otherwise require components, machinery or assemblies to be opened, removed or dismantled.
They give engineers something extremely valuable: a view of what is happening inside an asset.
But there is an important difference between being able to see a feature and being able to measure it.
That is where 3D measurement changes the inspection process.
What is 3D measurement in a videoscope?
A conventional industrial videoscope provides a visual image from inside a component. An engineer can identify something that appears to be a crack, area of wear, corrosion, deformation or another feature requiring closer attention.
The challenge comes when the next question is: how significant is it?
Visual inspection alone can help identify where attention is required, but estimating dimensions from a flat image can be difficult.
A 3D measurement videoscope adds dimensional information to the inspection. The Realta 3D, for example, uses dual-camera measurement technology to create 3D inspection data from inside the component.
This allows the operator to work with measurement tools including point-to-point distance, depth measurement, area measurement and 3D surface profiling.
Why does that matter?
The value is not simply having more information on the screen.
It is what engineering and maintenance teams can do with that information.
If an inspection identifies an internal feature, the team may need to decide whether the component can remain in service, requires further assessment, needs repair or should be removed.
The better the inspection information available at that stage, the better-informed that decision can be.
Being able to measure a feature during the internal inspection can help reduce the gap between identifying something visually and understanding its dimensions.
Moving beyond a flat image
One of the key differences with 3D measurement is the ability to look at the inspected surface in different ways.
The Realta 3D can generate information including a 3D point cloud, depth map and surface profile.
Rather than relying entirely on the original camera image, an inspector can use these different views to better understand the geometry of the feature being assessed.
Measurement points can also be validated on the system, helping the operator check where measurements have been placed before using the result as part of the inspection assessment.
Where can 3D videoscope inspection be useful?
The technology is particularly relevant where access is difficult, components are valuable or dismantling adds significant time and cost.
Typical applications include aerospace component inspection, automotive engineering, power generation equipment, process industry maintenance and precision manufacturing.
In each case, the exact inspection requirement is different, but the underlying problem is similar: something important needs to be assessed in an area that is difficult to reach directly.
That might mean inspecting internal surfaces, checking wear or deformation, examining a suspected defect or gathering more information before deciding whether further work is required.
Can 3D inspection eliminate component strip-down?
Not in every situation.
There will always be applications where a component needs to be removed, opened or dismantled for further testing, repair or replacement.
The more useful question is whether that strip-down is necessary before enough information has been gathered to make the decision.
Remote visual inspection can allow engineers to investigate an inaccessible area first. Adding 3D measurement means that investigation can include dimensional information as well as imagery.
In the right application, that can help teams decide more confidently what needs to happen next without immediately moving to a more disruptive inspection method.
What should you look for in a 3D measurement videoscope?
Measurement capability is important, but it should not be considered in isolation.
The camera still needs to reach the inspection area. The operator needs to be able to navigate the probe effectively. The image needs to provide enough detail to identify the feature, and the measurement tools need to be practical to use in the working environment.
For that reason, probe diameter, length, viewing direction, depth of field, articulation and image quality all remain important when specifying an industrial videoscope.

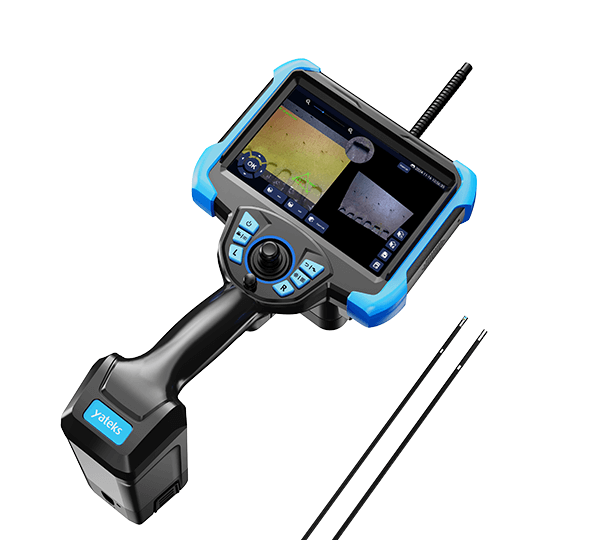

The Realta 3D combines its measurement functions with motorised omni-directional articulation, a high-resolution display and a modular probe system designed for different industrial inspection applications.
The important question is what happens after you see the defect
Industrial inspection is ultimately about helping somebody make a decision.
Finding something on the screen is only the beginning.
The engineer then needs enough information to understand what has been found and determine the appropriate next action.
That is what makes 3D measurement interesting.
It moves the conversation from: “Can we see something?”
towards: “Can we understand and measure what we are looking at?”
For industrial inspection applications where depth, geometry and dimensional information matter, that can make a significant difference to the value of the inspection.
See 3D inspection on your own application
The best way to understand whether 3D measurement is useful for a particular inspection is to test it on a real component or inspection challenge.
Rausch UK supplies and demonstrates the Realta 3D Measurement Videoscope for industrial and engineering applications across the UK.
If you have a difficult internal inspection, a feature that needs to be measured or an application where unnecessary dismantling adds time and cost, speak to our team about arranging a demonstration.
