Two people can look at the same CCTV drainage footage and reach slightly different conclusions.
That is part of the reality of visual inspection.
The operator has to recognise what is being shown, understand the pipe condition and decide which features are significant enough to record.
But there is one thing that makes that job considerably harder: poor footage.
Clear CCTV footage does not automatically produce the correct decision.
But poor footage increases the chance that important information is missed, misunderstood or simply cannot be assessed properly.
That is why image quality is important.
Not because a sharper picture looks better on the monitor.
Because somebody has to make a decision from it.
The inspection is not finished when the camera leaves the pipe
For the camera operator, the physical inspection may end when the equipment is removed from the line.
For the information gathered during that survey, the work may only be beginning.
The footage might later be reviewed by:
- a drainage surveyor;
- an engineer;
- an asset manager;
- a contractor pricing repair work;
- a water company;
- a property owner; or
- another person who was never present when the survey took place.
Those people depend on the inspection record being useful after the site visit.
The camera therefore needs to capture more than something that looked acceptable to the operator at the time.
Seeing a pipe is different from understanding its condition
A CCTV camera can travel through a pipe and produce a continuous video.
That alone does not necessarily make it a useful condition survey.
The person reviewing the footage may need to distinguish between:
- normal pipe features;
- joints;
- connections;
- deposits;
- root ingress;
- infiltration;
- deformation;
- cracking;
- displacement; and
- other visible defects or changes in condition.
The value of the inspection comes from whether the image provides enough information to make those distinctions with reasonable confidence.
Why clear footage matters
Good image quality makes inspection evidence easier to interpret.
The operator can see more detail while carrying out the survey.
The person reviewing it later can better understand what the operator was looking at.
And where a particular feature needs closer examination, a clearer image can help establish whether further action is required.
That does not mean every inspection needs the highest possible resolution.
The image simply needs to be good enough for the inspection task.
The important question is: can the person reviewing this footage actually see what they need to see?
Lighting is part of image quality
Camera resolution receives a lot of attention, but the camera still needs enough usable light.
Inside a drainage pipe there may be little or no natural illumination.
The inspection system therefore has to provide its own lighting.
Too little light can hide surface detail.
Poorly controlled lighting can create reflections or bright areas that make parts of the image difficult to interpret.
The camera, lighting and pipe environment all interact.
That is why useful image quality is about more than the number of pixels in the specification.
Camera position changes what the operator can see
A good camera image can still be limited by the angle from which the feature is being viewed.
An axial camera provides a straightforward forward-facing view and is ideal for many drainage inspections.
But some features benefit from a closer or differently angled view.
For example:
- connections entering the pipe;
- individual joints;
- areas of infiltration;
- cracks or surface damage;
- localised deformation; and
- features on the pipe wall rather than directly ahead.
In those situations, pan-and-tilt camera control can allow the operator to stop and look more closely at the feature rather than simply passing it.
Good footage should contain context
A close image of a defect can be useful.
But the person reviewing the survey also needs to understand where that defect sits within the pipe.
Context matters.
How far into the run is it?
Is it close to a connection?
What does the surrounding pipe look like?
Is the feature isolated or part of a longer affected section?
Useful inspection therefore combines detail with enough surrounding information to understand the feature properly.
Distance information makes the footage actionable
Identifying a defect is only part of the job.
If somebody later needs to repair, investigate or revisit it, they also need to know where it is.
Reliable distance information helps connect what is being seen on the screen with a physical location along the pipe.
That can support:
- repair planning;
- excavation;
- further investigation;
- repeat inspection;
- survey reporting; and
- comparison with other asset information.
The image and the position therefore work together.
Operator speed can affect inspection quality
There is always pressure to work efficiently.
But moving the camera too quickly can reduce the usefulness of the survey.
Features pass across the screen more quickly.
The operator has less time to identify something unusual.
The recorded footage may also be harder to review later.
A professional inspection needs to balance productivity with the requirement to gather useful information.
Finishing the survey quickly has limited value if another visit is needed because important detail was missed.
Stop when something needs closer inspection
One of the simplest ways of improving survey usefulness is also one of the most obvious: stop when something matters.
If a joint, connection or suspected defect needs to be understood, give the camera enough time to show it properly.
Where the equipment allows it, reposition the camera.
Adjust the view.
Capture a still image if appropriate.
Make the inspection evidence useful to the person who will later need to understand what was found.

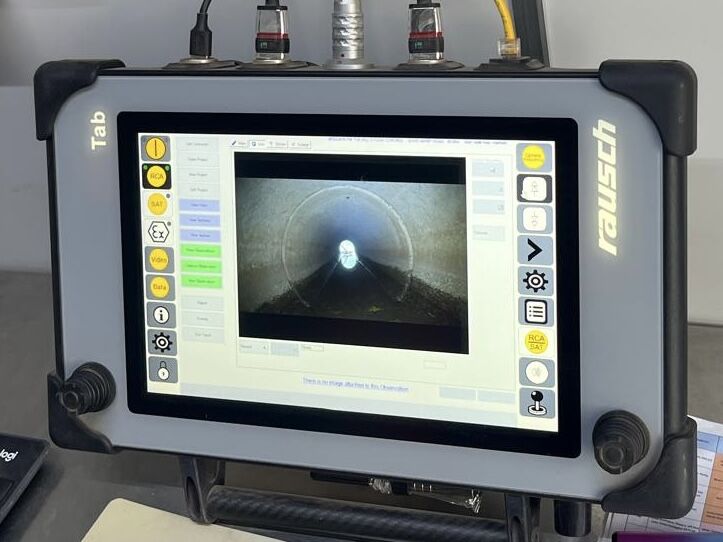

The monitor is not the final test
Footage may look acceptable while the operator is standing beside the access point.
But that small monitor is not necessarily where the final decision will be made.
The survey may later be viewed on a larger screen or incorporated into a formal report.
Checking the quality of recorded footage therefore matters.
A system should not only display a useful live image.
It also needs to preserve useful evidence for later review.
Recording reliability matters
There are few more frustrating outcomes than successfully completing a difficult inspection and then discovering that the required footage was not recorded correctly.
Recording should therefore form part of the operator's normal checks.
Is the system actually recording?
Is the storage available?
Is the file being created correctly?
Can the footage later be exported in the required format?
These may feel like basic questions, but they directly affect whether the inspection work can be used once the site visit is complete.
Clear footage does not remove interpretation
Even very good CCTV footage still needs somebody to interpret what they see.
Different inspectors may sometimes judge a feature differently.
Experience, training, survey standards and the wider context of the asset all influence that assessment.
Technology does not remove professional judgement from the process.
What better inspection technology can do is give that judgement stronger visual evidence to work from.
The purpose is not to make defects look dramatic
High-quality inspection should not exaggerate the condition of an asset.
Nor should it hide it.
The objective is to provide an accurate and useful representation of what can be seen inside the pipe.
A small feature should not be presented as catastrophic simply because the camera can show it in great detail.
Equally, a significant problem should not be missed because the footage was too poor to assess properly.
Good inspection evidence supports proportionate decisions.
Inspection quality can affect the repair decision
The person reviewing a survey may need to decide whether the next step is:
- cleaning;
- jetting;
- repair;
- rehabilitation;
- excavation;
- monitoring;
- another inspection; or
- no immediate action.
Those decisions can involve substantial differences in cost.
That is why the quality of the information behind them matters.
The CCTV survey does not make the decision automatically.
It helps provide the evidence from which that decision can be made.
Poor footage can create a second visit
One of the clearest operational consequences of poor inspection evidence is having to go back.
A customer asks for clarification.
An engineer cannot see the relevant feature.
The footage does not show the connection clearly enough.
A repair cannot be planned confidently because the location or condition is uncertain.
Now the crew has to return to a site that everyone thought had already been completed.
That is why image quality has a commercial impact as well as a technical one.
Better evidence helps different people work from the same information
A drainage inspection often passes through several hands.
The operator captures it.
A surveyor may code or report it.
A project manager may review the result.
An engineer may determine what intervention is needed.
A contractor may then carry out that work.
Clear footage gives all of those people a better chance of understanding the same underlying condition.
It does not guarantee that everybody will interpret every detail identically.
But it reduces avoidable uncertainty created simply by poor visual evidence.
The right equipment depends on the information required
Not every drainage inspection needs the same camera system.
A compact axial push camera can be ideal for straightforward small-diameter inspection.
A pan-and-tilt push camera may make more sense where defects and connections need to be examined closely.
A powered crawler becomes useful for larger pipes and longer mainline runs.
The correct system depends on:
- pipe diameter;
- inspection distance;
- access;
- required camera control;
- the type of features being assessed;
- recording requirements; and
- the way the footage will be used afterwards.
The equipment should be selected around the inspection outcome, not simply around the biggest specification available.
The camera is gathering evidence, not just video
This is the important distinction.
CCTV inspection is not valuable simply because it creates footage.
It is valuable because that footage can help somebody understand an asset they cannot otherwise see.
Clear imagery matters because the condition needs to be interpreted.
Camera control matters because important features may need closer attention.
Distance information matters because the defect may need to be found again.
Recording matters because somebody may need the evidence after the crew has left site.
All of those things contribute to the usefulness of the survey.
Clear footage is only the start
A good CCTV image is important.
But the real question comes afterwards: what can somebody confidently do with the information?
Can they understand the pipe condition?
Can they identify where attention is required?
Can they decide whether cleaning, repair or further investigation is needed?
Can they explain the condition to somebody who was not on site?
If the answer is yes, the inspection has done much more than create a clear video.
It has created useful evidence.
And that is ultimately what professional CCTV inspection should be trying to achieve.
