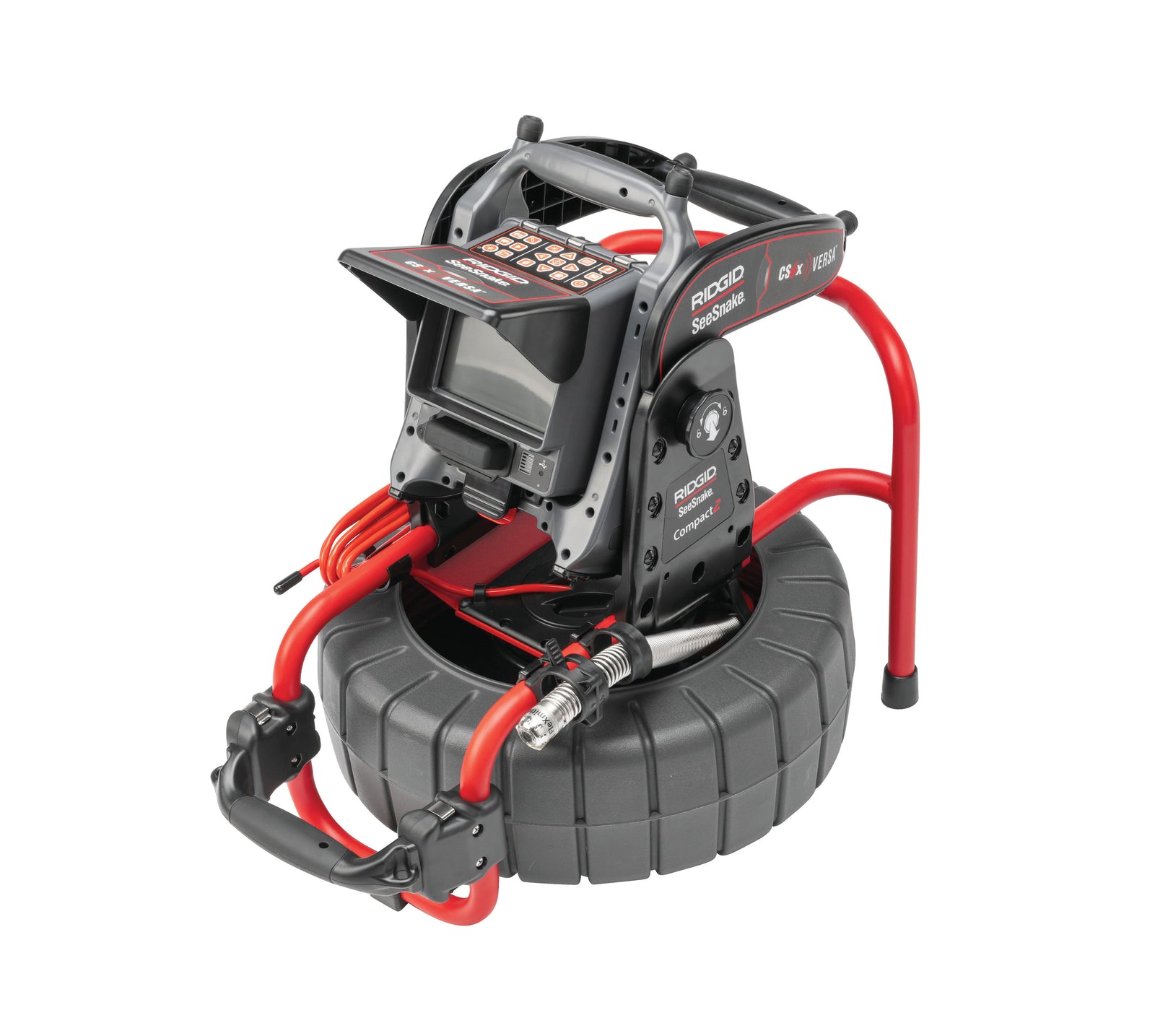

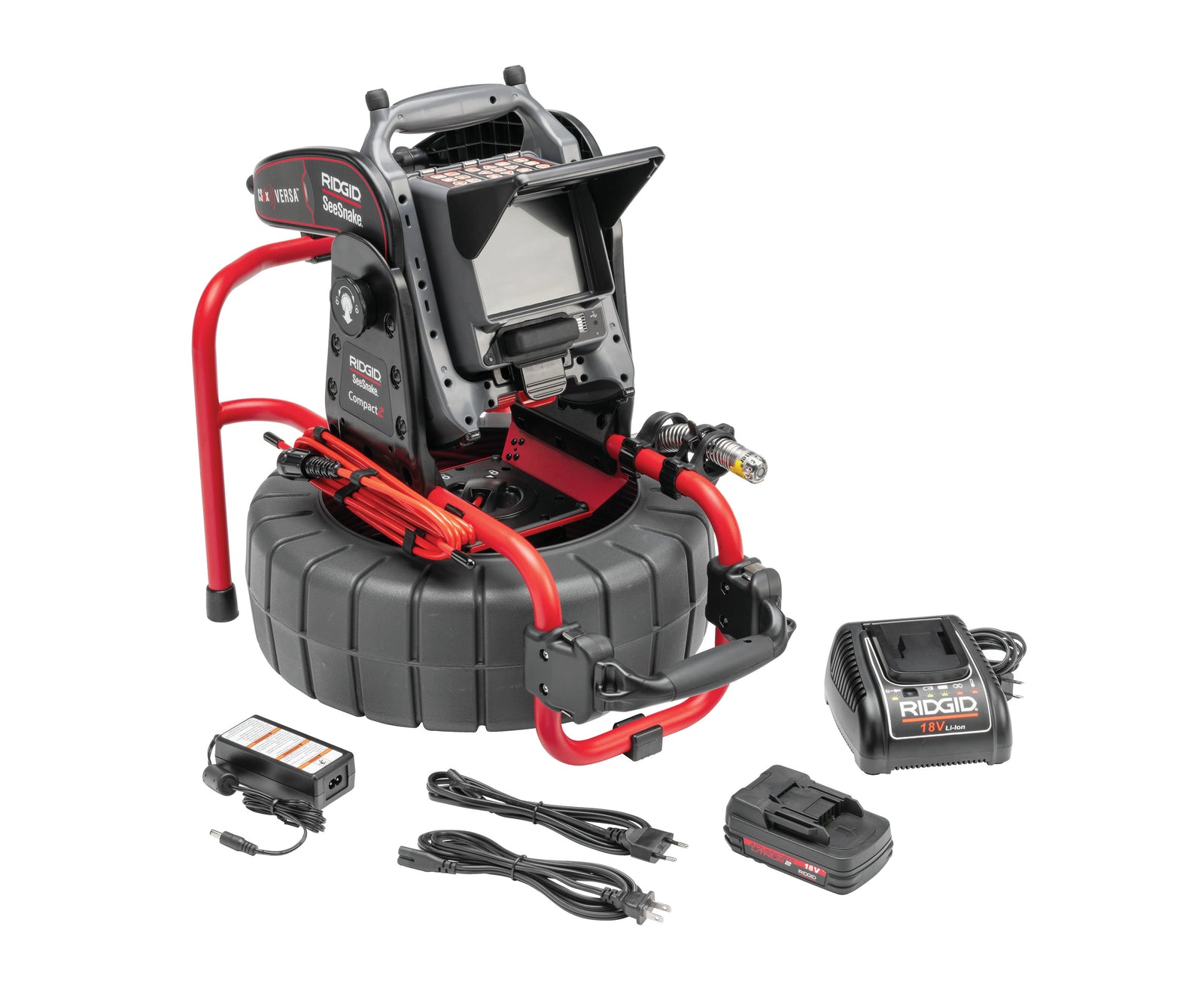

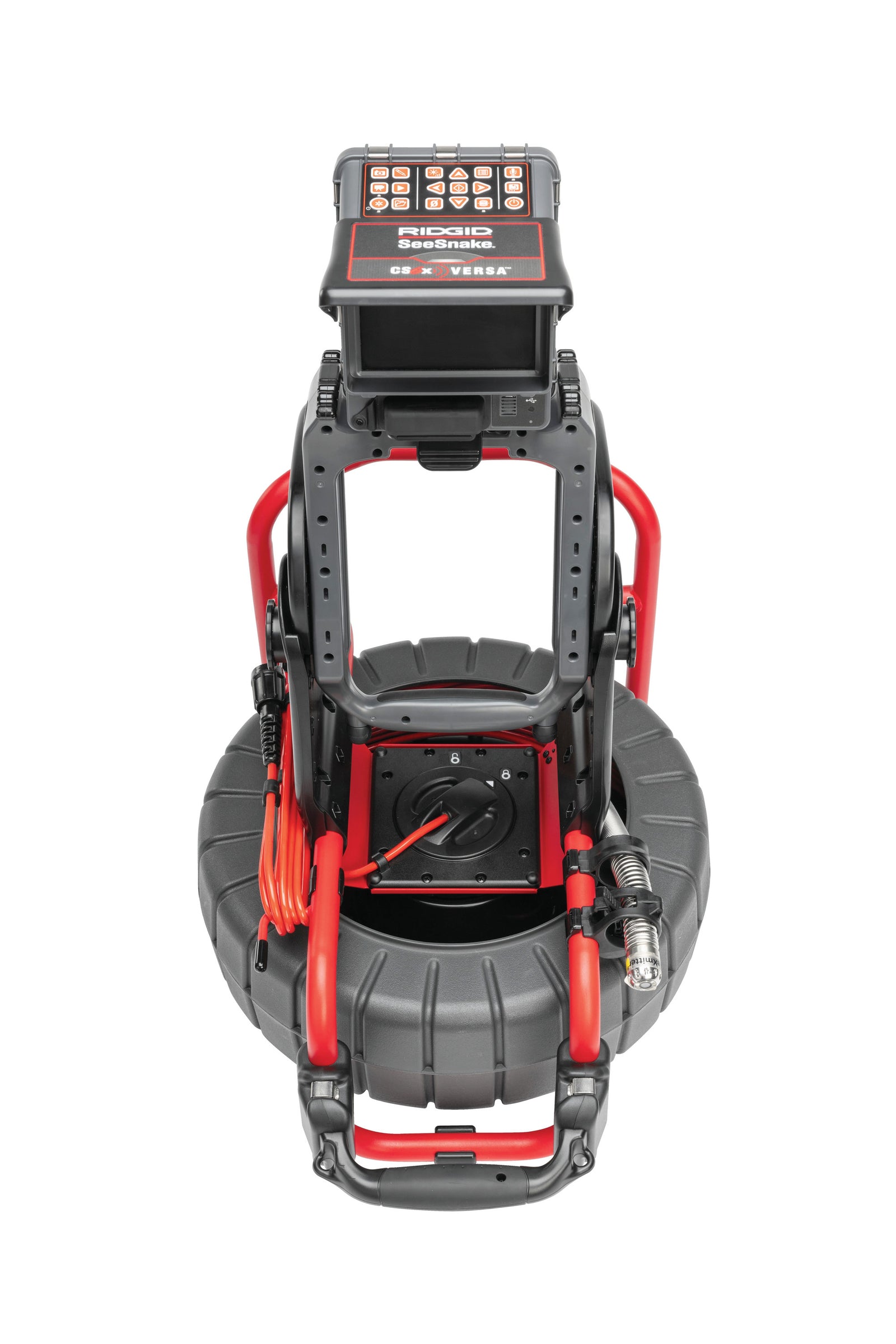

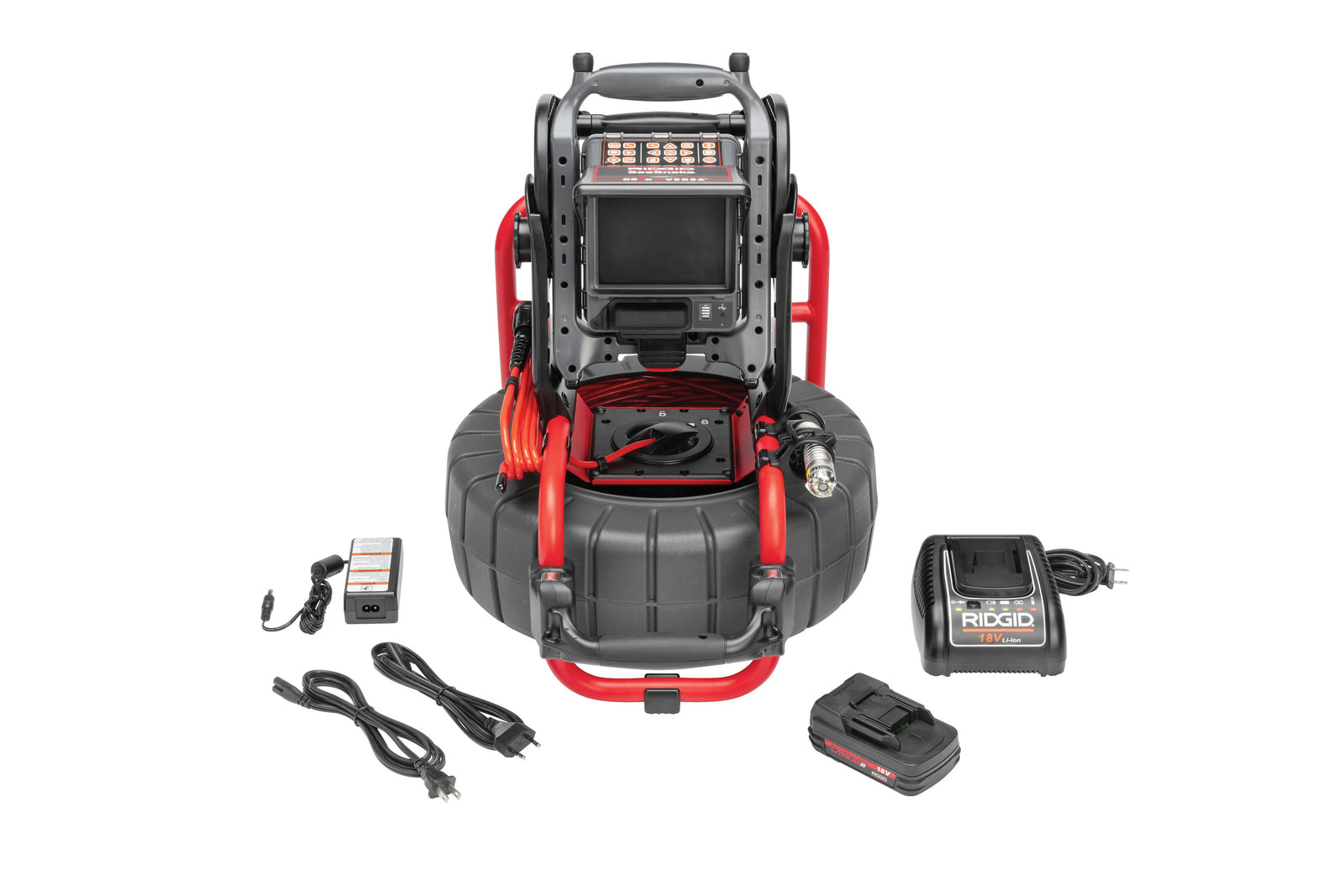

RIDGID SeeSnake Compact2 With VERSA Camera System | 48118

RIDGID SeeSnake Compact2 With VERSA Camera System is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.

Key features

SeeSnake® Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100’ (30 m) of push cable with a 2.5” (63 mm) min bend radius. Self-levelling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.

Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.

Powerful FleXmitter® sonde has long range and preserves the camera’s ability to make turns.

The Compact 2 comes in the popular Compact formfactor, combining a small package and all-in-one monitor capability (when used with the SeeSnake CS6x Versa monitor).

The Compact 2 has 100′ (30 m) of flexible push cable, providing good ability to fit in smaller diameter pipes and navigate through tight turns.

Specifications

Line Capacity	1.5″ to 6″ (40 mm to 150 mm)
Push Cable Length	100′ (30 m)
Push Cable Diameter	0.27″ (6.7 mm) with 3 mm [0.12 in] Fiberglass core
Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Weight (without batteries)	16.6 lbs. (7.5 kg)
Size	Length 25″ (63.5 cm), Width 14″ (35.6 cm), Height 17″ (43.2 cm)
Camera Type	1″ (25 mm) Self-Leveling
Resolution	656 x 492 (NTSC), 768 X 576 (PAL)
Light Source	6 LEDs
Sonde	512 Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor	IPx5

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 48118
• UPC / GTIN: 095691481184
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
