Manhole Guardian – Adjustable Manhole Opening Guard (370–900 mm)

Manhole Guardian™ is a portable, adjustable safety frame designed and manufactured in the UK by Sweetnam & Bradley. It helps reduce exposure to open manholes during drainage, sewer, utility and maintenance work while allowing operatives continued working access to the opening.

Why choose Manhole Guardian?

• Adjusts from 370 to 900 mm: suitable for many circular, square and rectangular manhole openings.
• Maintains working access: the cross-shaped frame can remain positioned while work continues.
• Fast to fit: four adjustable locating posts secure the frame against the inner edge of the manhole opening.

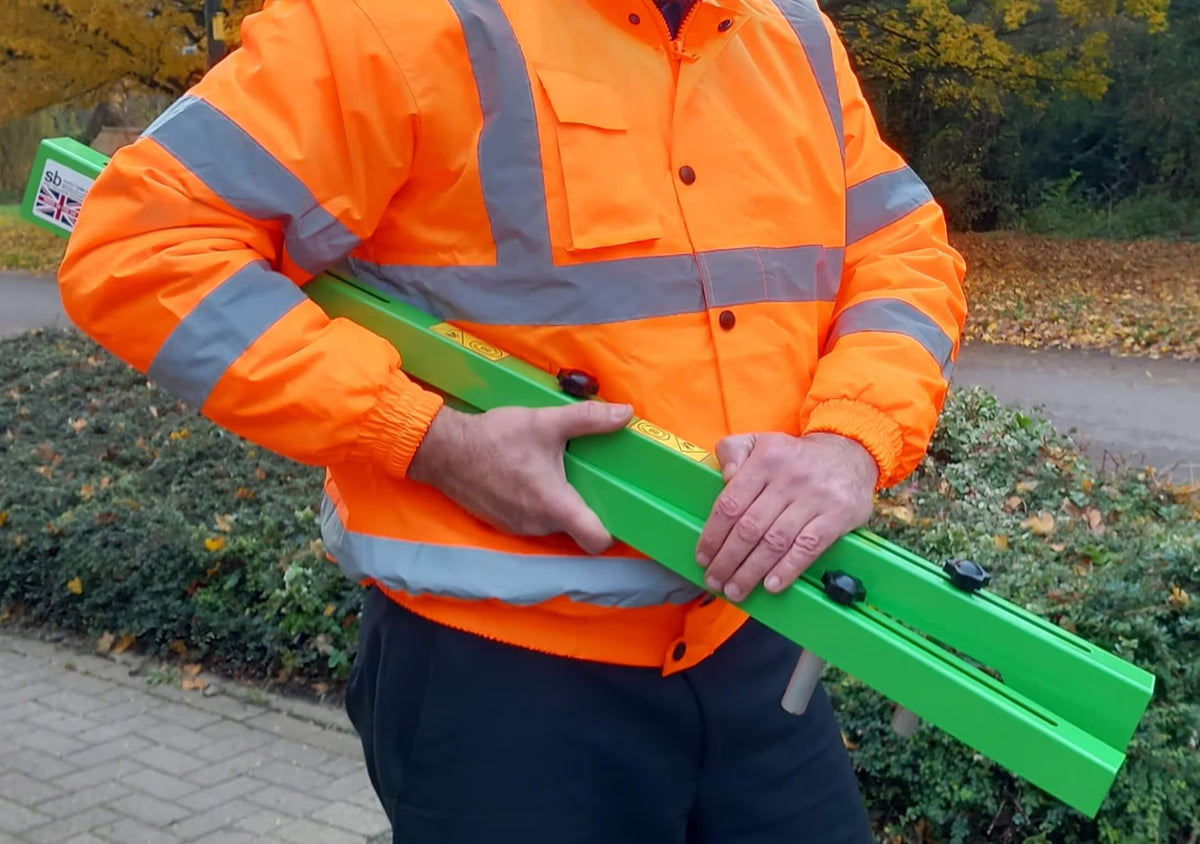

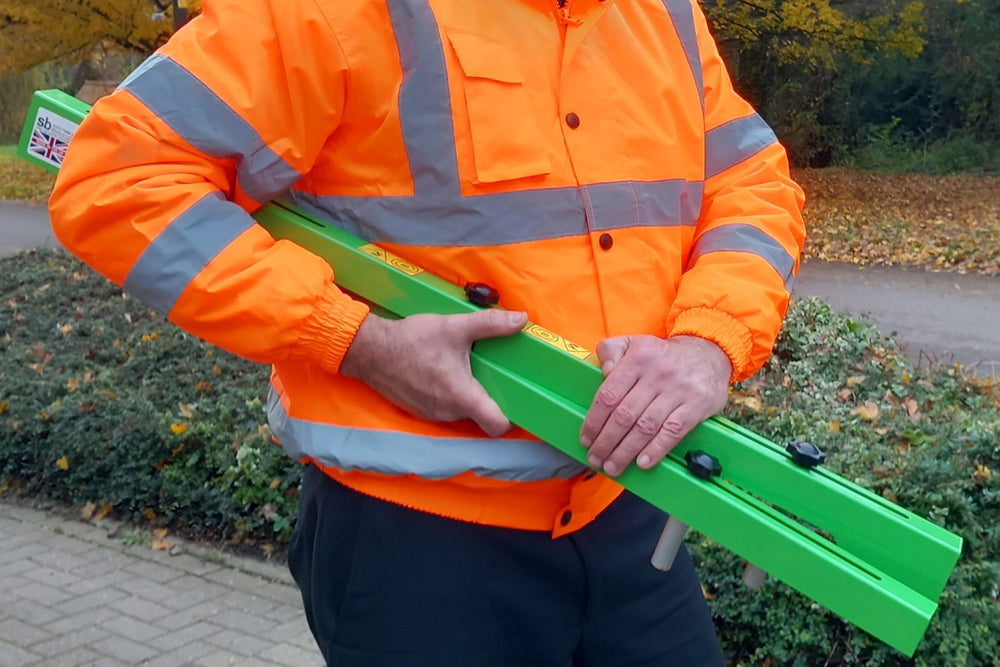

• Folds away: compact for storage in service vehicles and carrying between jobs.

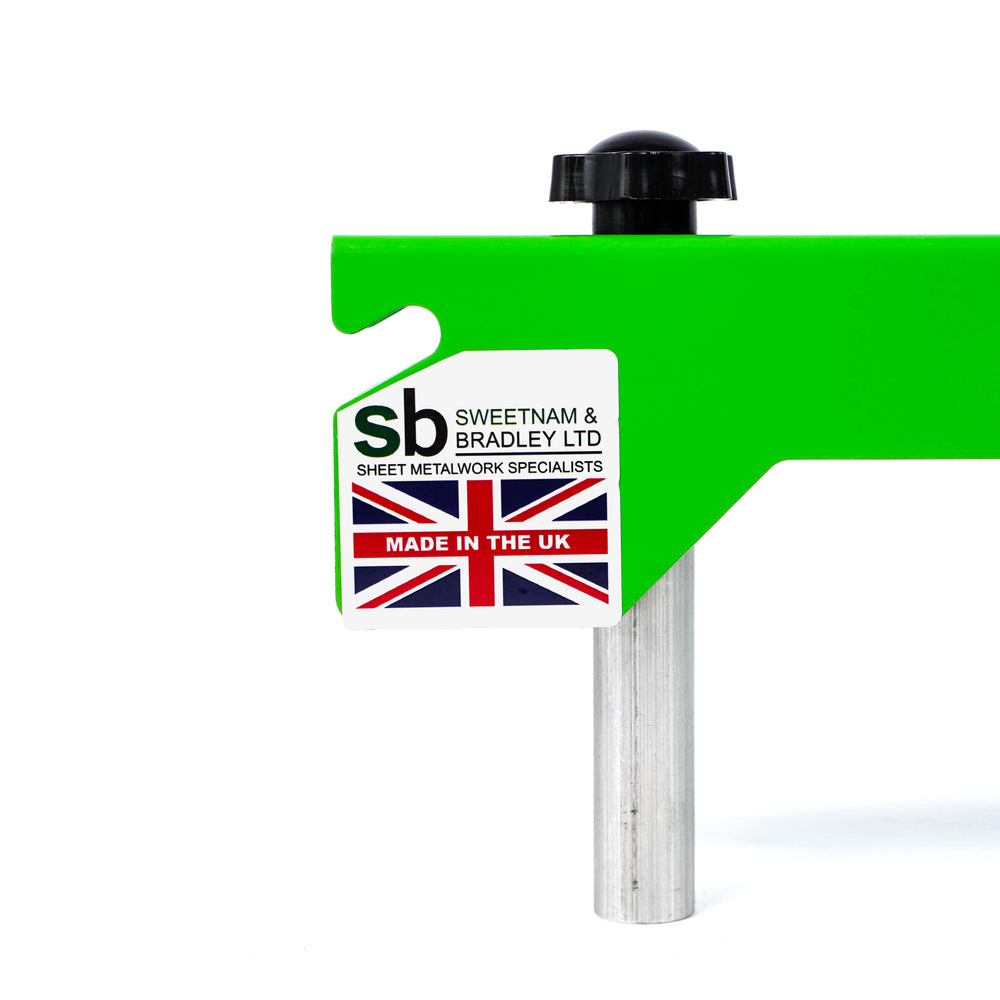

• Made for outdoor use: pre-galvanised steel with a polyester powder-coated finish for corrosion protection.
• UK design and manufacture: produced by Sweetnam & Bradley.

Specifications

• Manhole size: approximately 370–900 mm across
• Opening shapes: circular, square and rectangular
• Construction: galvanised and powder-coated steel

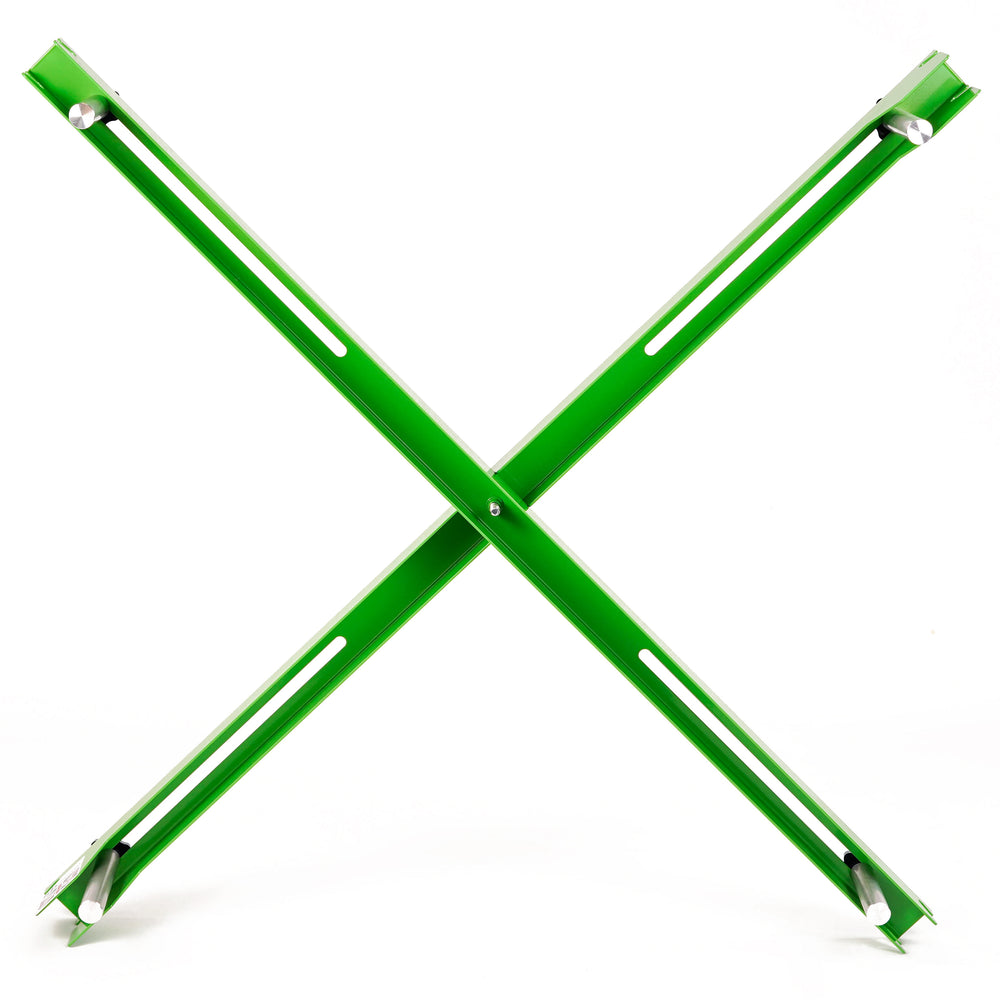

• Positioning: four adjustable locating posts with wheel bolts
• Storage: folding cross-frame design
• Manufacturer: Sweetnam & Bradley, United Kingdom

Independent static-load testing

A Certex UK report dated 16 November 2023 (reference PC99) records a Manhole Guardian sample subjected to static loads of 240 kg and 440 kg, each held for five minutes, without observed deformation. This describes the recorded test conditions; it is not a general safe working load rating or confirmation that the product is appropriate for every site.

The manufacturer also reports using finite element analysis (FEA) as part of the product design process.

How to fit the Manhole Guardian

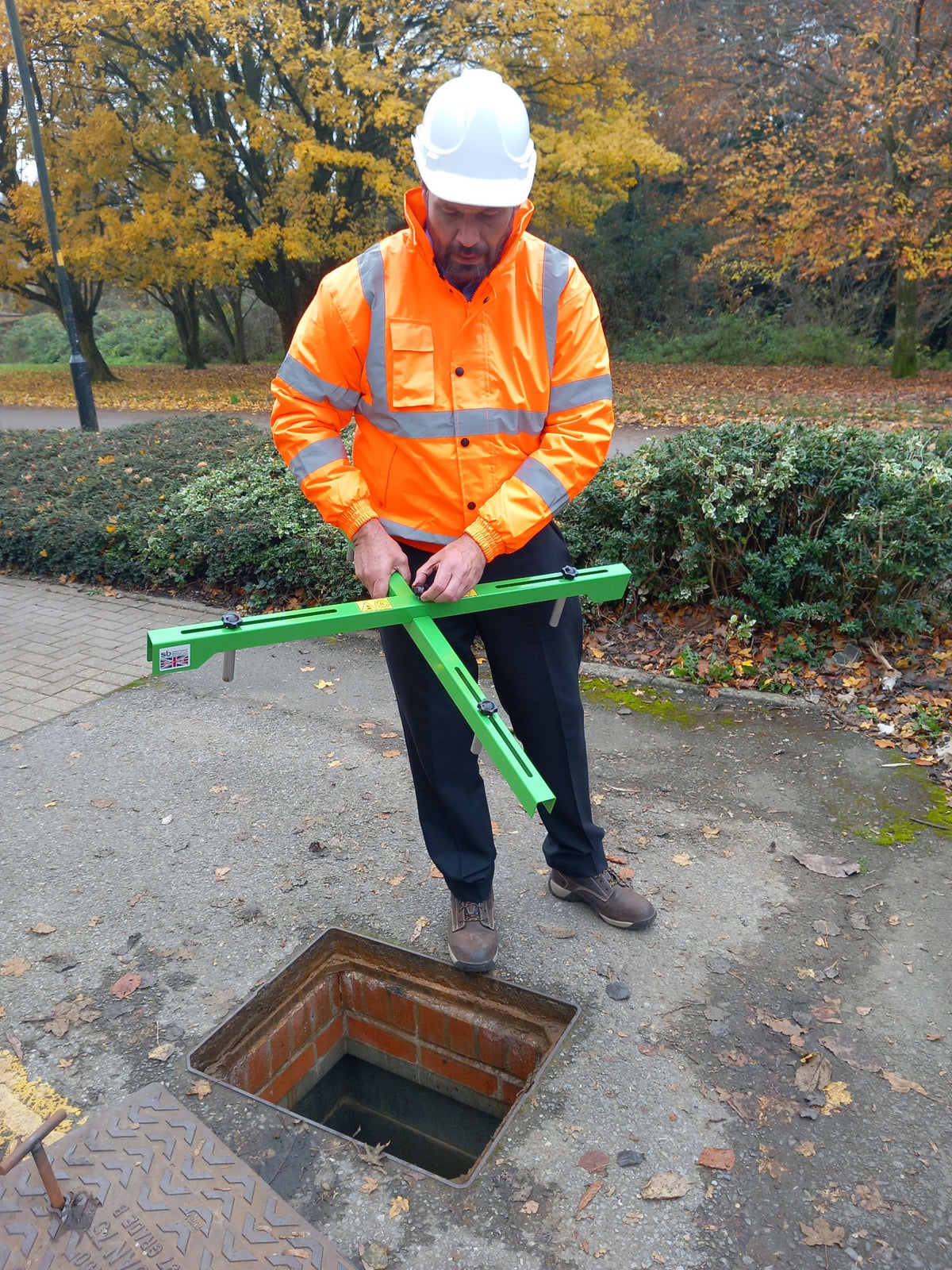

1. Loosen the four locating-post wheel bolts and slide the posts towards the centre.
2. Loosen the central wheel bolt. Rotate the upper member into a cross, locate the cut-out securely and retighten the centre bolt.

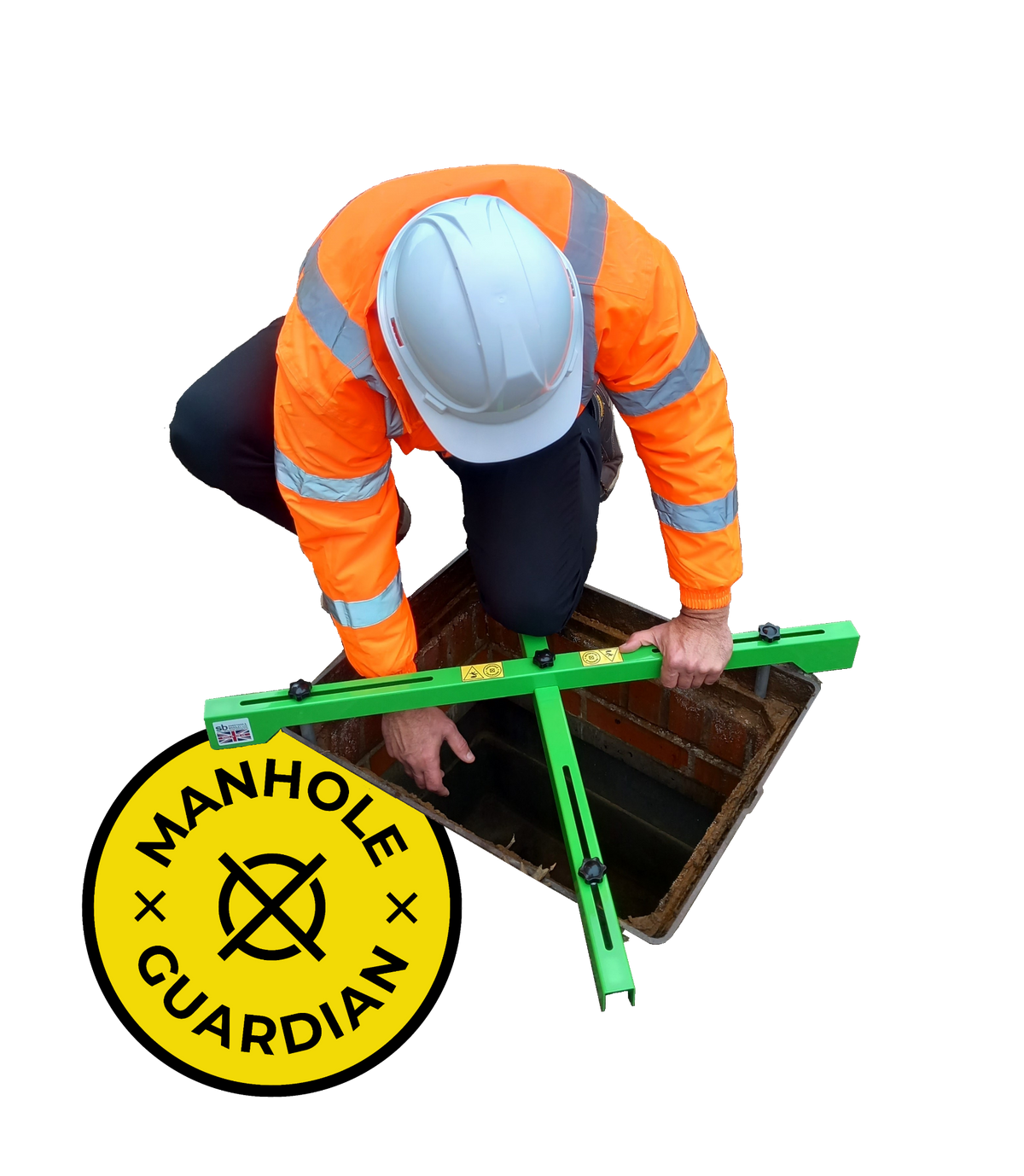

3. Set the frame over the open manhole, ensuring it rests securely on the surrounding ground.

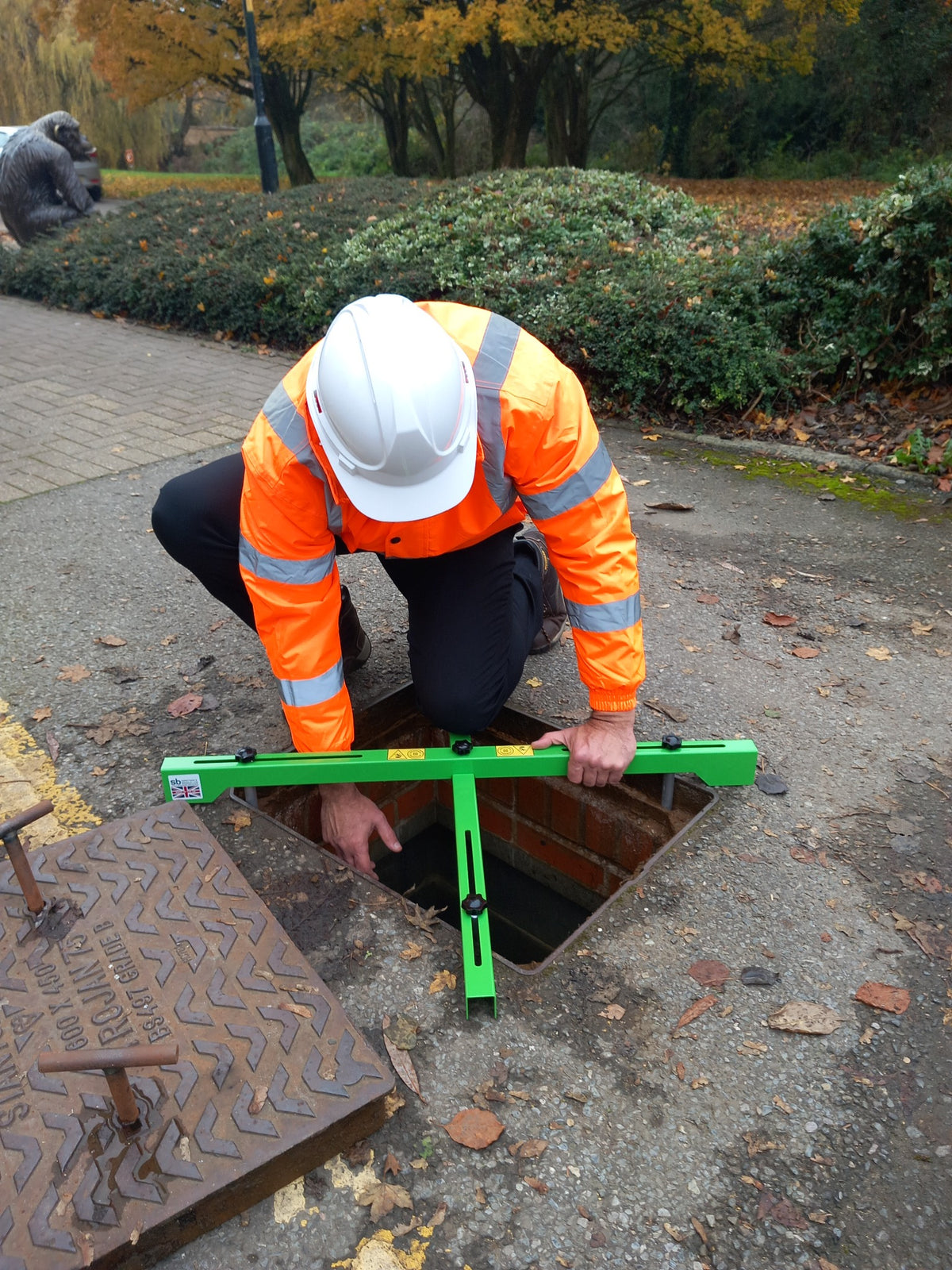

4. Slide each locating post against the inside of the manhole frame and tighten the four wheel bolts.

Refer to the manufacturer’s illustrated fitting instructions in the brochure below before use.

Safety information

The manufacturer states that Manhole Guardian is not personal protective equipment (PPE). Use it only as part of a suitable site risk assessment and safe system of work; it does not replace required guarding, traffic management, supervision or other controls. Do not leave an exposed opening unattended in a public-facing area.

Product documents

• Download Manhole Guardian manufacturer brochure and fitting instructions (PDF)
• Download Certex UK static-load test report, PC99 (PDF)

Delivery and availability

Supplied by Rausch UK and dispatched directly by Sweetnam & Bradley in the UK. The manufacturer advises that orders are typically dispatched the same working day for delivery in around two working days, subject to stock and cut-off times. Any delivery charge shown to the customer is confirmed at checkout.

Frequently asked questions

Will it fit a round manhole?

Yes. The adjustable locating posts are designed for round, square and rectangular openings within the stated 370–900 mm range.

Can work continue through the manhole?

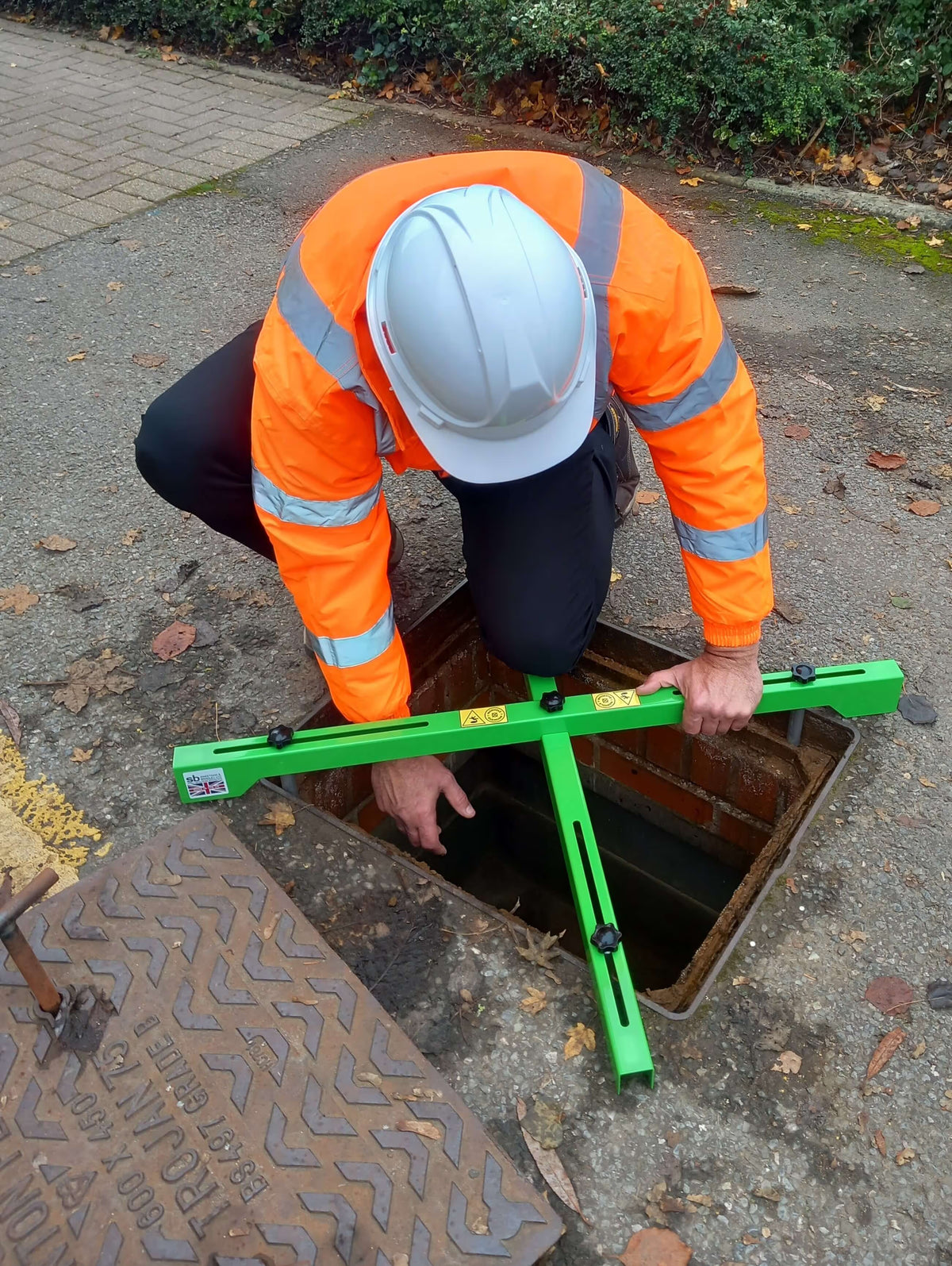

Yes. The cross-frame design maintains access through the opening while the Manhole Guardian is positioned in place.

Does the 440 kg test mean it is a 440 kg load-rated cover?

No. Certex recorded a static-load test on a sample under specified conditions. Use the full test report and your site-specific risk assessment; do not treat the test result as a universal load rating.

Is the product made in the UK?

Yes, Sweetnam & Bradley designs and manufactures Manhole Guardian in the United Kingdom.
