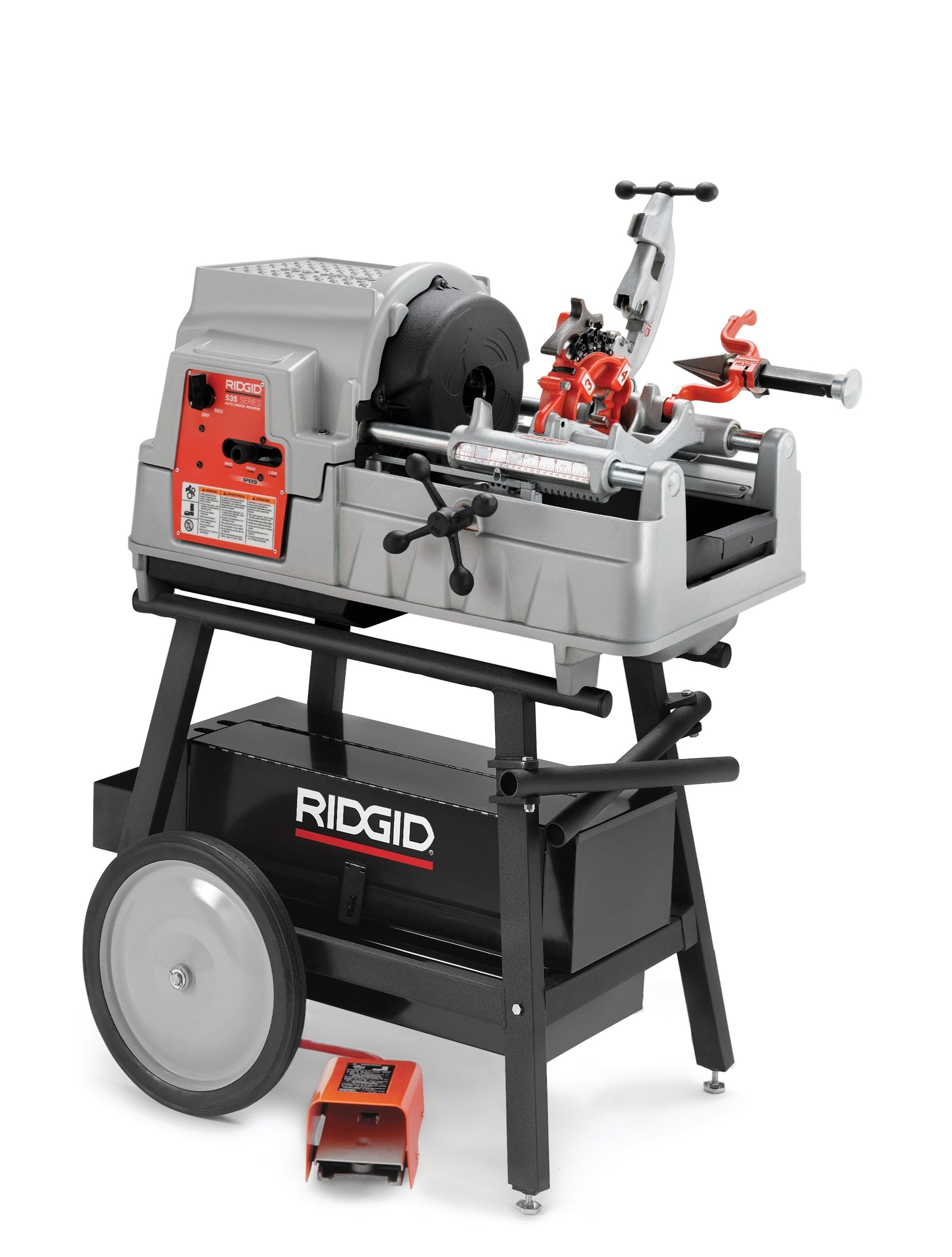

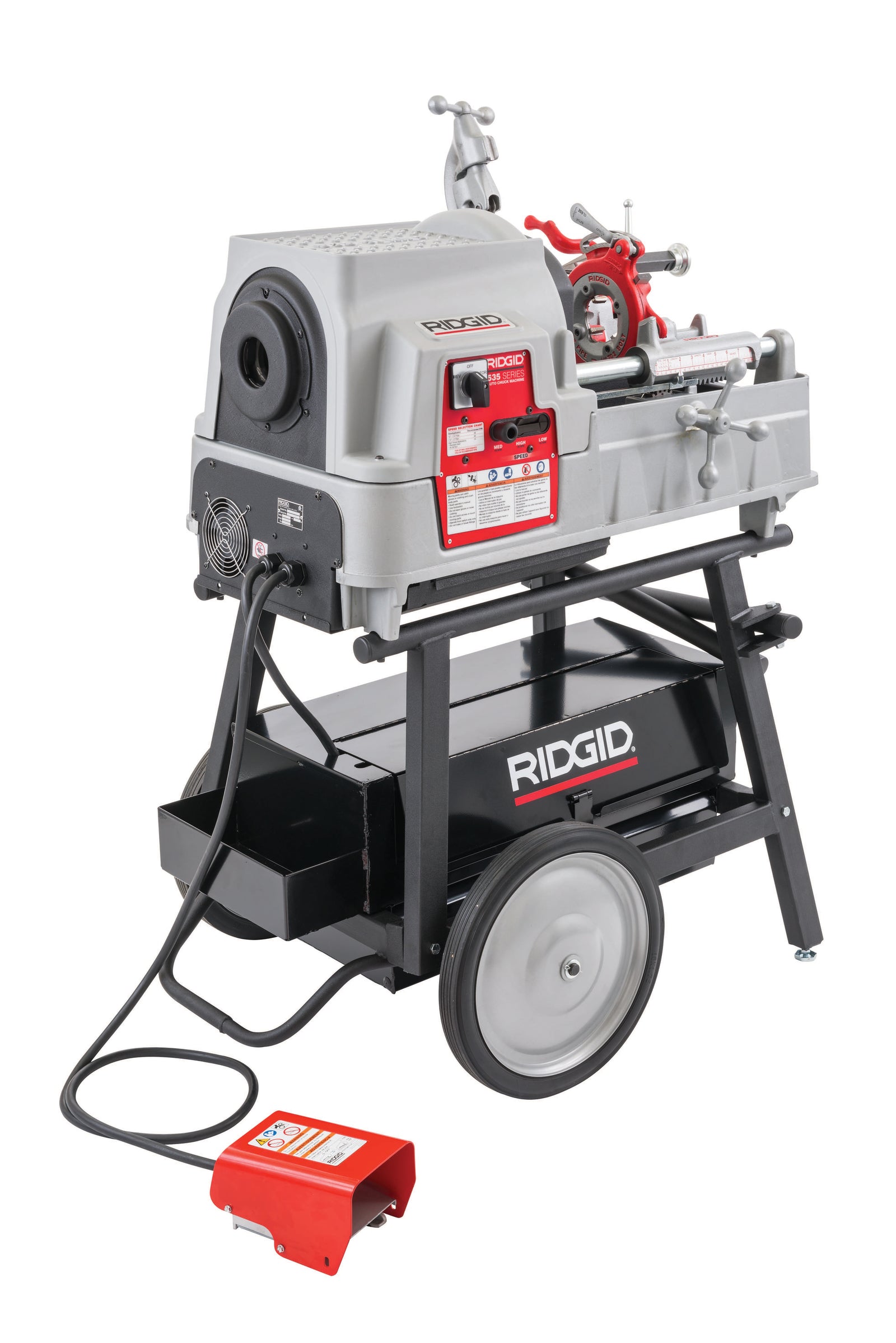

RIDGID Model 535A Automatic Threading Machine | 33471

RIDGID Model 535A Automatic Threading Machine is professional equipment for preparing and threading pipe.

Pipe capacity: 1/8" - 2"(6-50mm), 2 1/2" - 4"(65-100mm) with 141 geared threader.

Pipe capacity: 1/8" - 2"(6-50mm), 2 1/2" - 4"(65-100mm) with 141 geared threader.

Key features

• Automatic Chuck
• Large 6.6 I oil reservoir
• Large chip tray
• Generous top cover area for keeping tools & fittings handy
• High clearance carriage
• Can be used with geared threader model 141
• Uses Model 815A self opening or Model 811A quick-opening die heads
• Length guage for quick, accurate cut-off
• RH/LH combination reamer available
• Spare E-1032 cutter wheel
• 2 hex wrenches (5/32", 3/16")
• Cat No 33471
• Model 535A Automatic Threading Machine 230v
• Cat No 33481
• Model 535A Automatic Threading Machine 115v

Product information

Bolt: 1/4"-2" (8-52mm)

The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil resevoir make the model 535A ideal for longer uniterrupted threading. The model 535A features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The Model 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the manual Model 535, the Model 535A Automatic and other RIDGID equipment.

Features:

Spindle Speed: 36 (Universal) or Electrically switched 35/70 (3 Phase)

Technical Specifications:

Motor: Choice of Universal (1.5 kW) or Three Phase (1.35 / 1.7 kW) Induction Motors

Switches: Forward / Off / Reverse and integral safety foot switch

Spindle Speed: 36 (Universal) or Electrically switched 35/70 (3 Phase)

Chuck: automatic with four reversible forged jaws

Rear centering device: Cam action turns with chuck

Cutters: self-centering, full-floating

Reamer: 5-flute cone, RH

Oiling system: Adjustable self priming gerotor pump with valve for reverse operation

Standard Equipment:

Machine only:

Cutter: Model 820

Reamer: Model 341

Oil: 5l Thread cutting fluid

Machine Complete: as Machine only, plus:

Die Head: Model 811-A or 815-A

Dies: 1/2" - 3/4" BSPT Alloy, 1" - 2" BSPT Alloy (Universal). 1/2" - 3/4" BSPT HS, 1" - 2" BSPT HS (Induction)

Available Options:

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 33471
• Product type: Threading Machine

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
