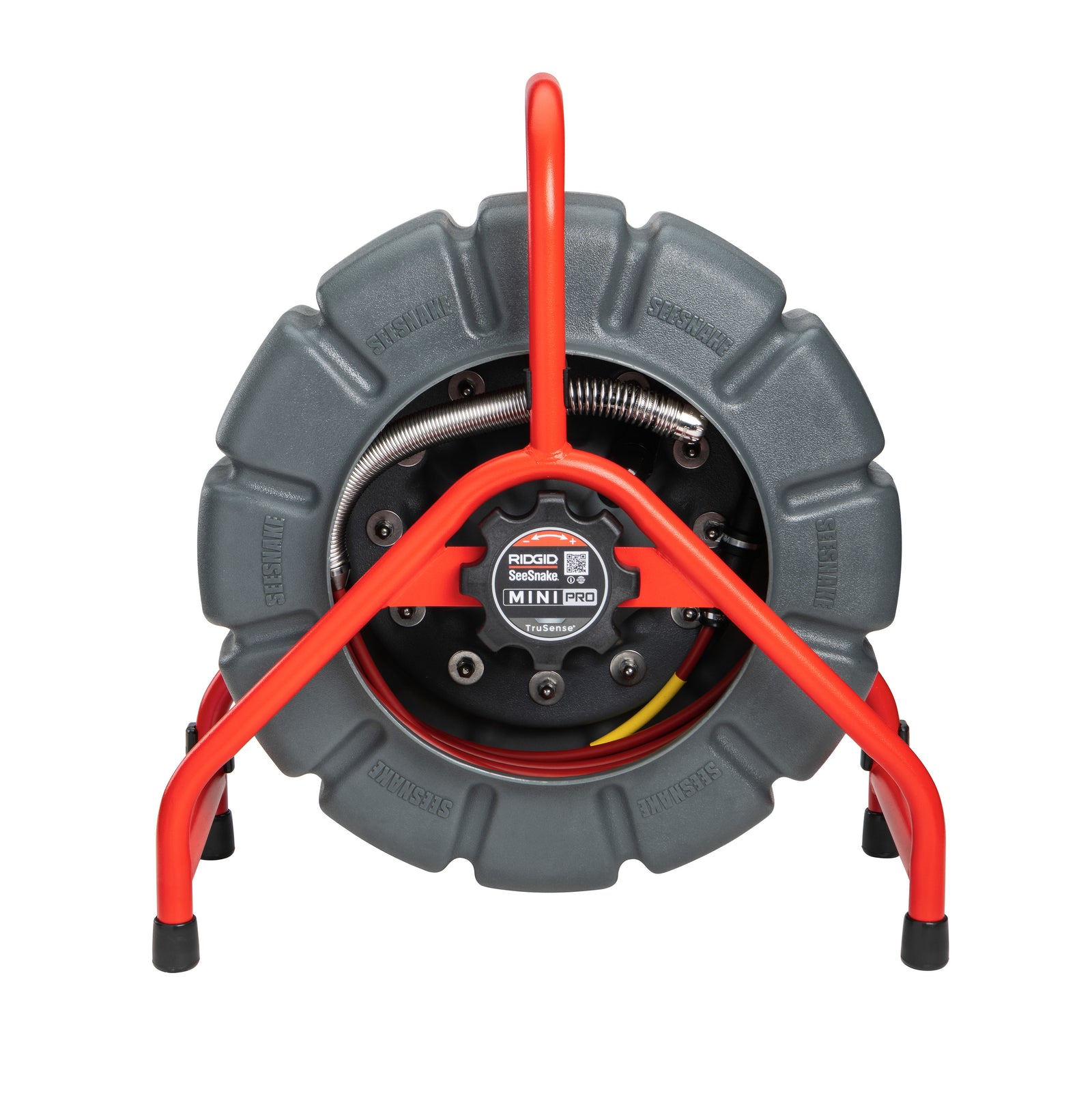

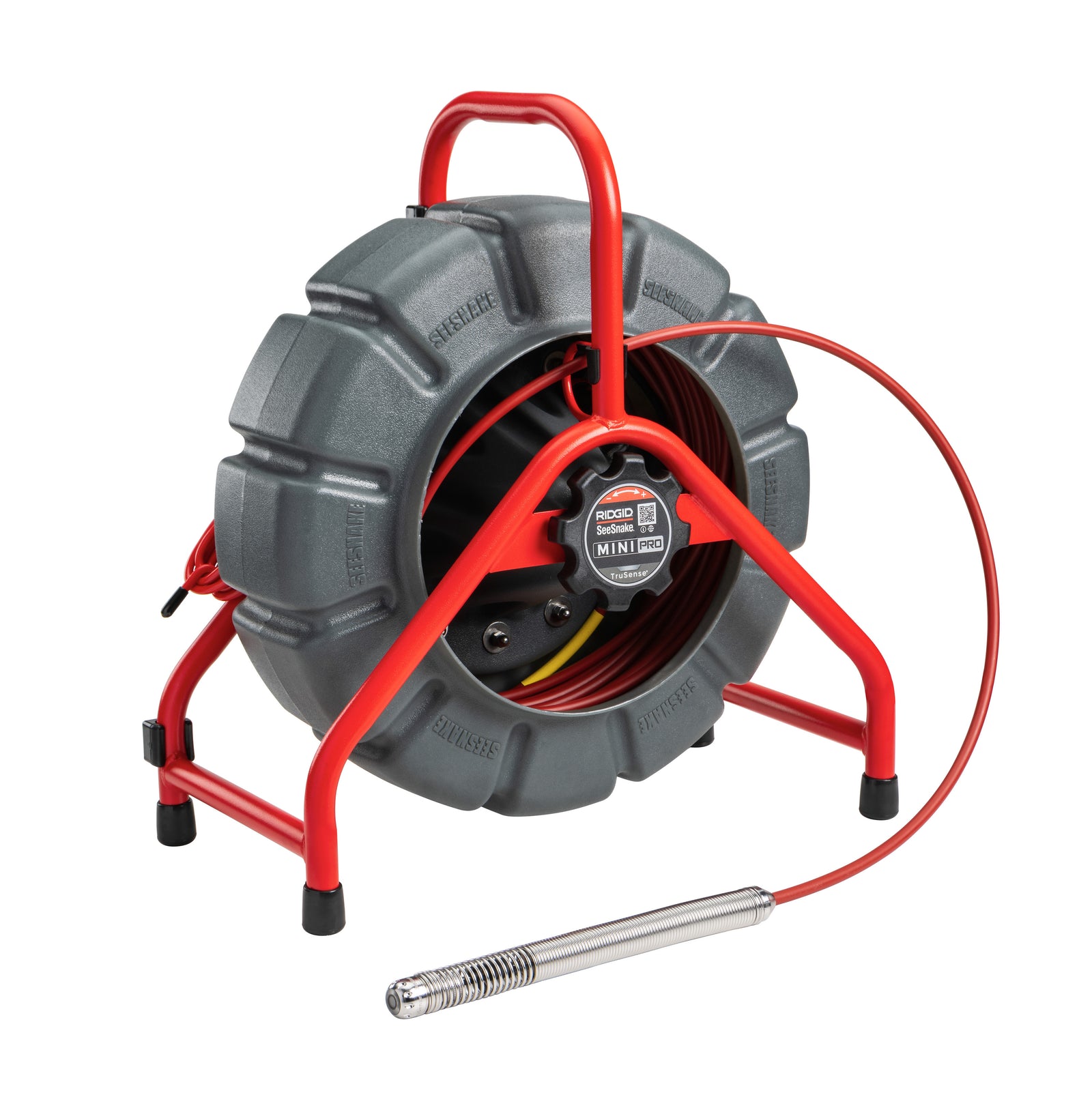

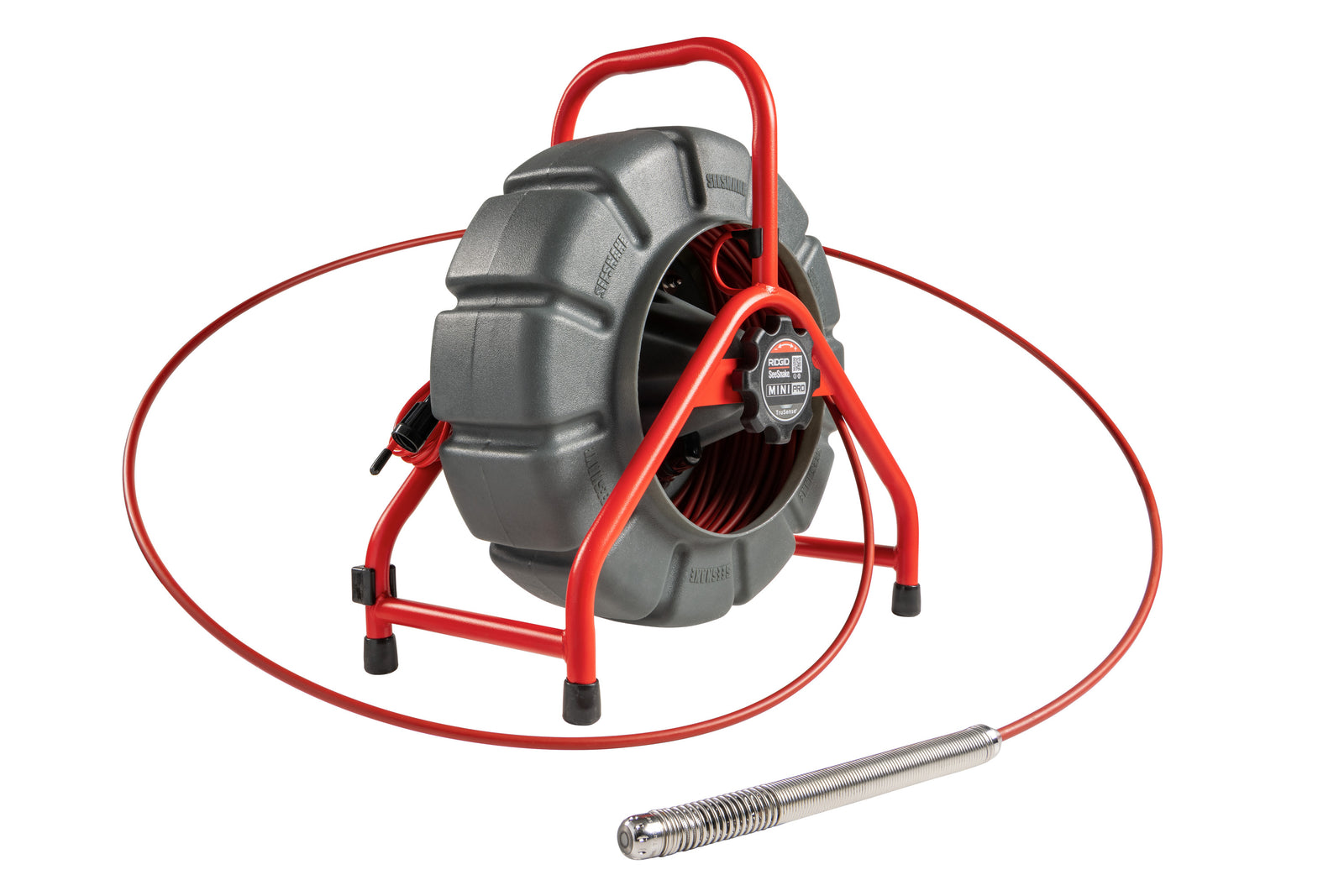

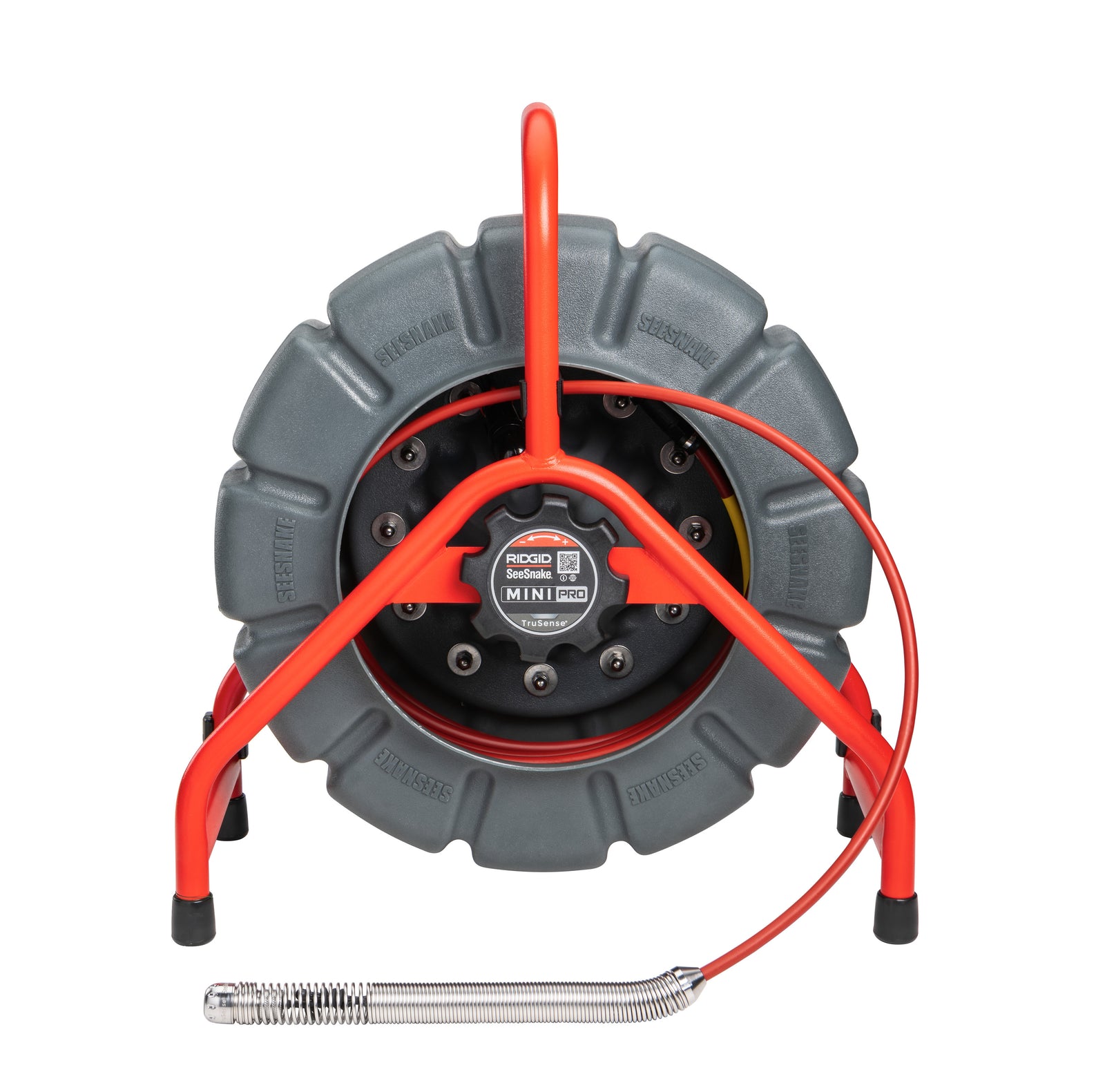

RIDGID SeeSnake Mini Pro Inspection Camera with TruSense Technology

RIDGID SeeSnake Mini Pro Inspection Camera with TruSense Technology is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

Digital Self-Leveling - Ultra-smooth digital self-leveling keeps image upright with no moving mechanical parts.

For lines 1 1/2" to 8" (38mm to 203mm).

Key features

• Camera Diameter 25 mm
• Camera Type Digital Self-Leveling
• Resolution 640 x 480 pixels
• Line Capacity 1 1/2 to 8" (38 mm to 203 mm)
• Push Cable Length 200 ft (61 m)
• Push Cable Diameter 0.36 in (9.1 mm)
• Cable Flexibility Mid Stiff
• Push Cable Minimum Bend Radius 3 in (76 mm)
• Sonde 512 Hz, FleXmitter®
• Weight 26 lb (11.8 kg)
• Length 20.4 in (519 mm)
• Width 11.3 in (288 mm)
• Height 22 in (560 mm)
• Drum Diameter 18.2 in (462 mm)

Product information

The RIDGID® SeeSnake® Mini Pro is our newest TruSense-enabled diagnostic inspection reel. With our smallest and most rugged 25 mm self-leveling camera and mid-flex push cable, the Mini Pro is designed to navigate hard 90° bends and inspect up to 61 m (200'). When used with a TruSense-capable monitor, the Mini Pro’s innovative self-leveling technology produces the most stable in-pipe view, without mechanical rotation. This greatly enhances the longevity and durability of the camera, while lowering the service calls. The TruSense enhanced camera brings valuable in-pipe data to enhance pipe inspections in the field.

TruSense Technology - When paired with a TruSense enabled monitor, advanced sensors on the camera head convery valuable information about the in-pipe environment including digital self-leveling, high dynamic range, a TiltSense Inclinometer, and digital pan/zoom.

Digital Self-Leveling - Ultra-smooth digital self-leveling keeps image upright with no moving mechanical parts.

High Dynamic Range - Offers superior clarity and detail of the in-pipe image displayed on a TruSense enabled monitor.

TiltSense™ Inclinometer - Provides the degree of tilt of the camera head while in-pipe and displays it on a TruSense enabled monitor.

Digital Pan & Zoom - Adds the ability to focus on a single point of interest.

Navigation Flexibility - Equipped with a rugged 25 mm diameter, 0.7 in (18 mm) long camera head and mid-flexibility push cable, this reel is flexible enough to navigate sharp bends while stiff enough to travel long distances in 1 1/2 - 8" (40 - 200 mm) lines.

Traceability - A built-in 512 Hz FleXmitter® sonde preserves the flexibility to clear tight runs.

Product identification

• Brand: RIDGID
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
