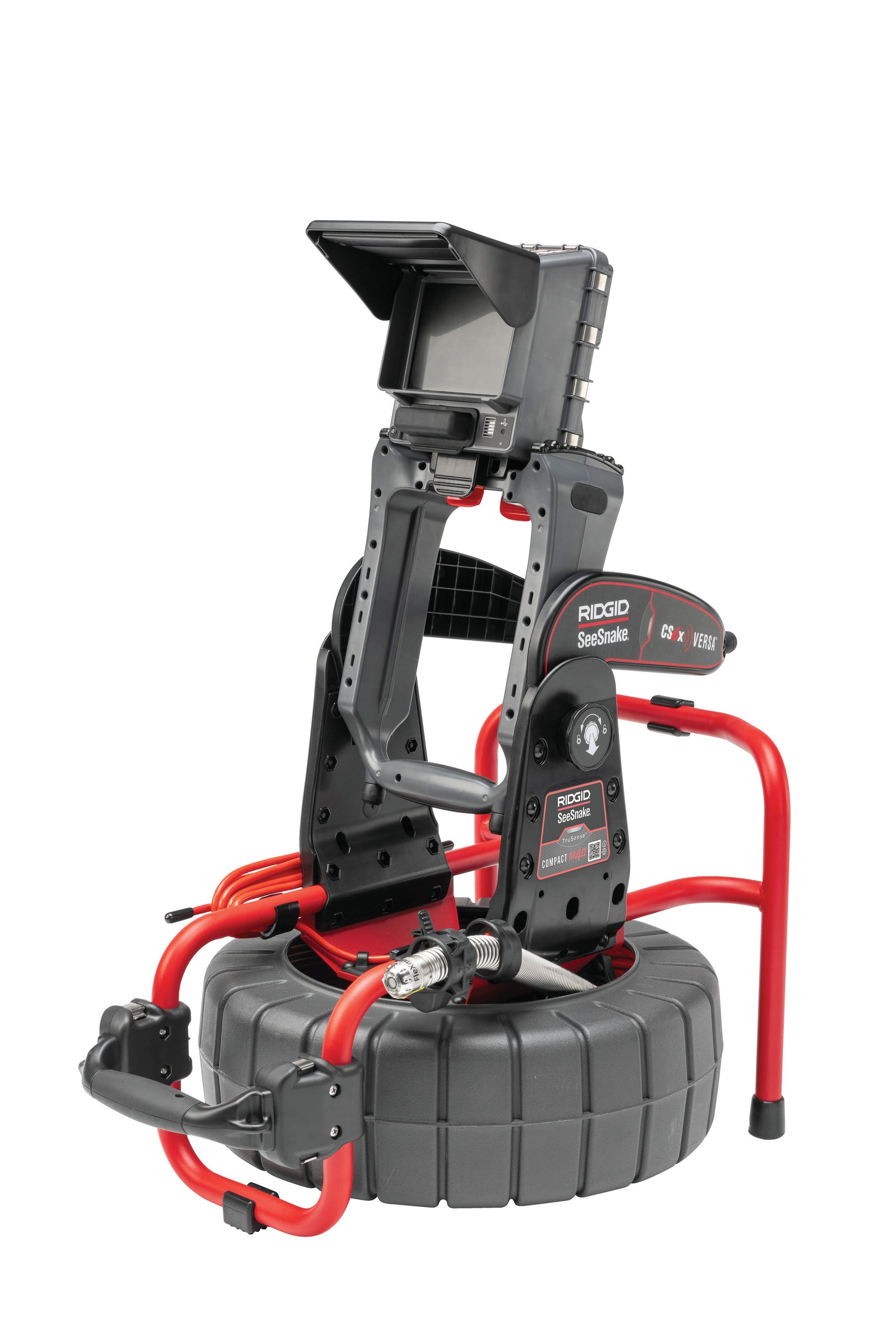

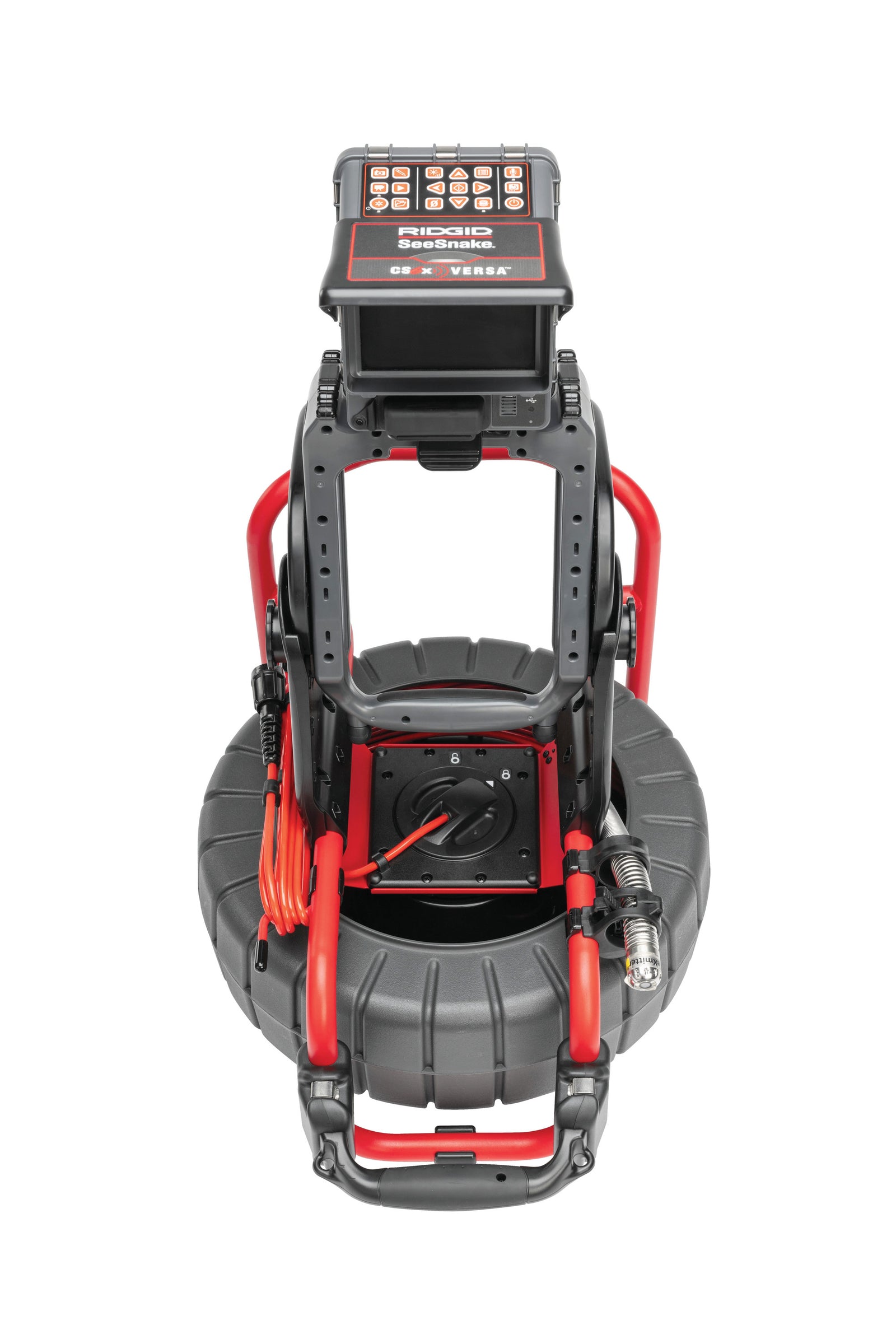

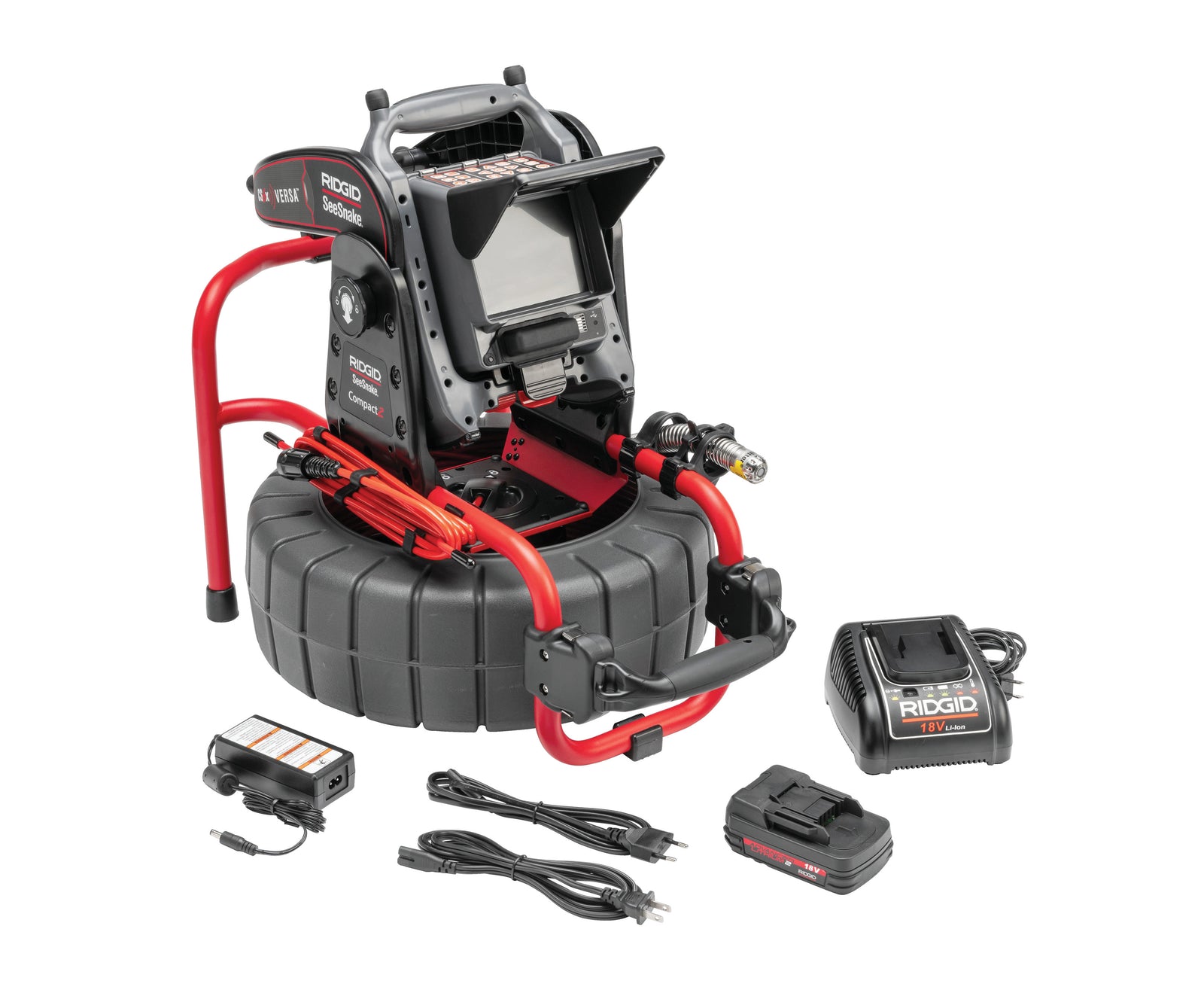

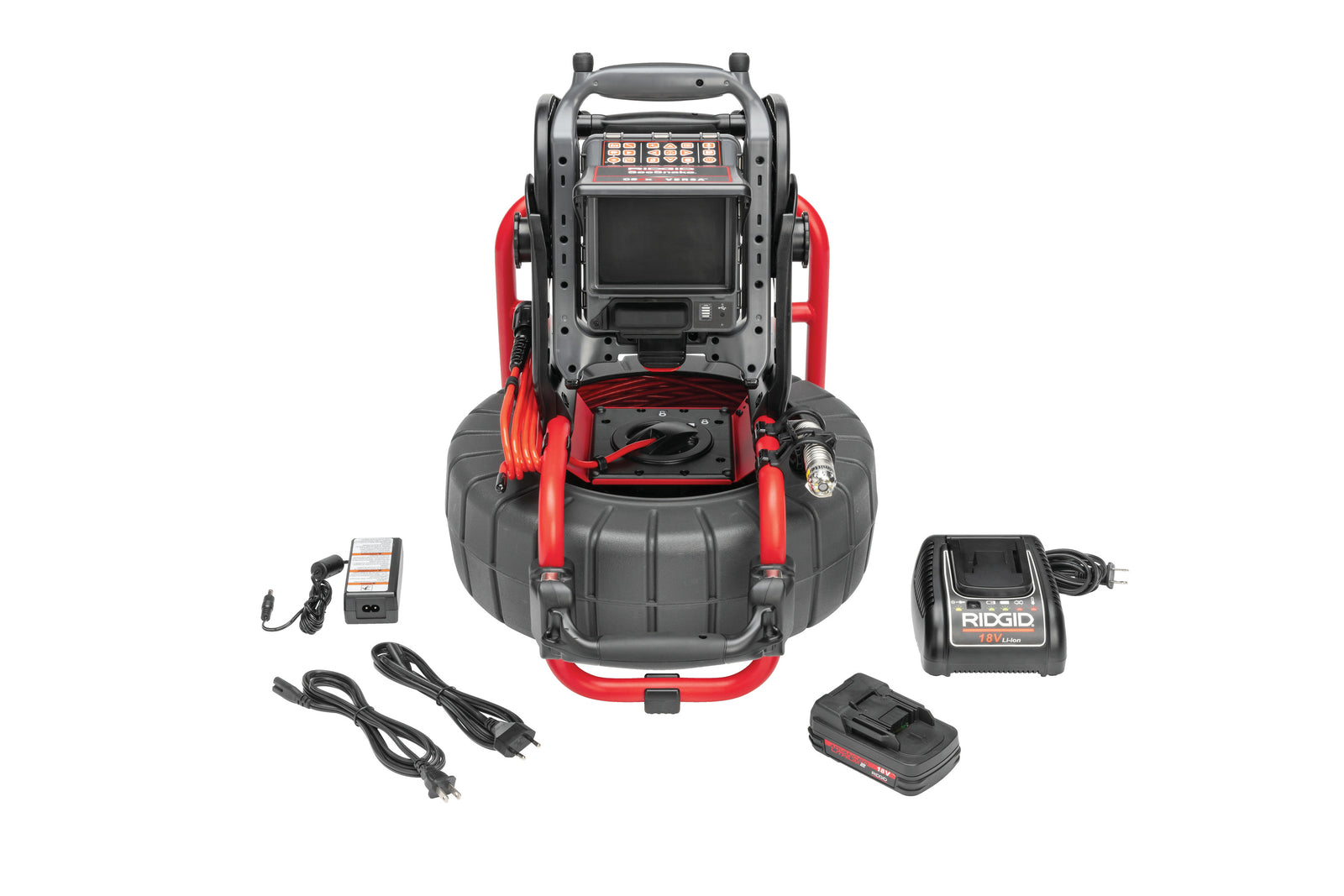

RIDGID SeeSnake CompactM40 Camera System | 64213

RIDGID SeeSnake CompactM40 Camera System is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

The Compact M40 features a 40m push cable that is ideal for longer run expanding lateral lines with a few turns.

The Compact M40 offers similar performance to the SeeSnake Mini in the popular Compact form factor, combining a small package and all-in-one monitor capability. Now available with TruSense™ technology. The Compact M40 has 131' (40 m) of moderately stiff push cable, providing a good compromise between stiffness and the ability to navigate turns.

Key features

• 1 1/2" to 6" (40 - 150mm) lines up to 100' (30m) ideal for longer runs
• High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions
• TiltSense displays the camera's angle in a pipe on a connected SeeSnake CSx series monitor
• Download the free
• HQx Live
• RIDGID HQx Live
• Line Capacity 1.5" to 8" (38 mm to 203 mm)
• Push Cable Length 131' (40 m)
• Push Cable Diameter 0.36" (9.1 mm)
• Push Cable Core 0.14" (3.5 mm)
• Fiberglass Push Cable Bend Minimum Radius 3" (76 mm)
• Weight (without batteries) 22 lbs. (10 kg)
• Size Length 25" (63.5 cm)
• Width 14" (35.6 cm)
• Height 17" (43.2 cm)
• Camera Type 1" (25 mm)
• Frequency 512 Hz
• Operating Temperature 14°F to 122°F (-10°C to 50°C)
• Storage Temperature 14°F to 158°F (-10°C to 70°C)
• Ingress Protection (without Monitor) IPx5

Product information

The Compact M40 features a 40m push cable that is ideal for longer run expanding lateral lines with a few turns.

Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.

Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.

Powerful FleXmitter® sonde has long range and preserves the camera's ability to make turns.

app to view and record inspection jobs on your phone or tablet.

Use the high power FleXmitter 512 Hz sonde with a RIDGID receiver to locate the camera.

Introducing RIDGID HQx Live™, a new mobile platform that interfaces with RIDGID® SeeSnake Camera systems equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your phone or tablet. Sign up today to start working faster…and smarter..

RIDGID is the trademark of Emerson Electric Co. or its affiliates and is registered in the U.S. and elsewhere. All third-party trademarks are those of their respective owners.

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 64213
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
