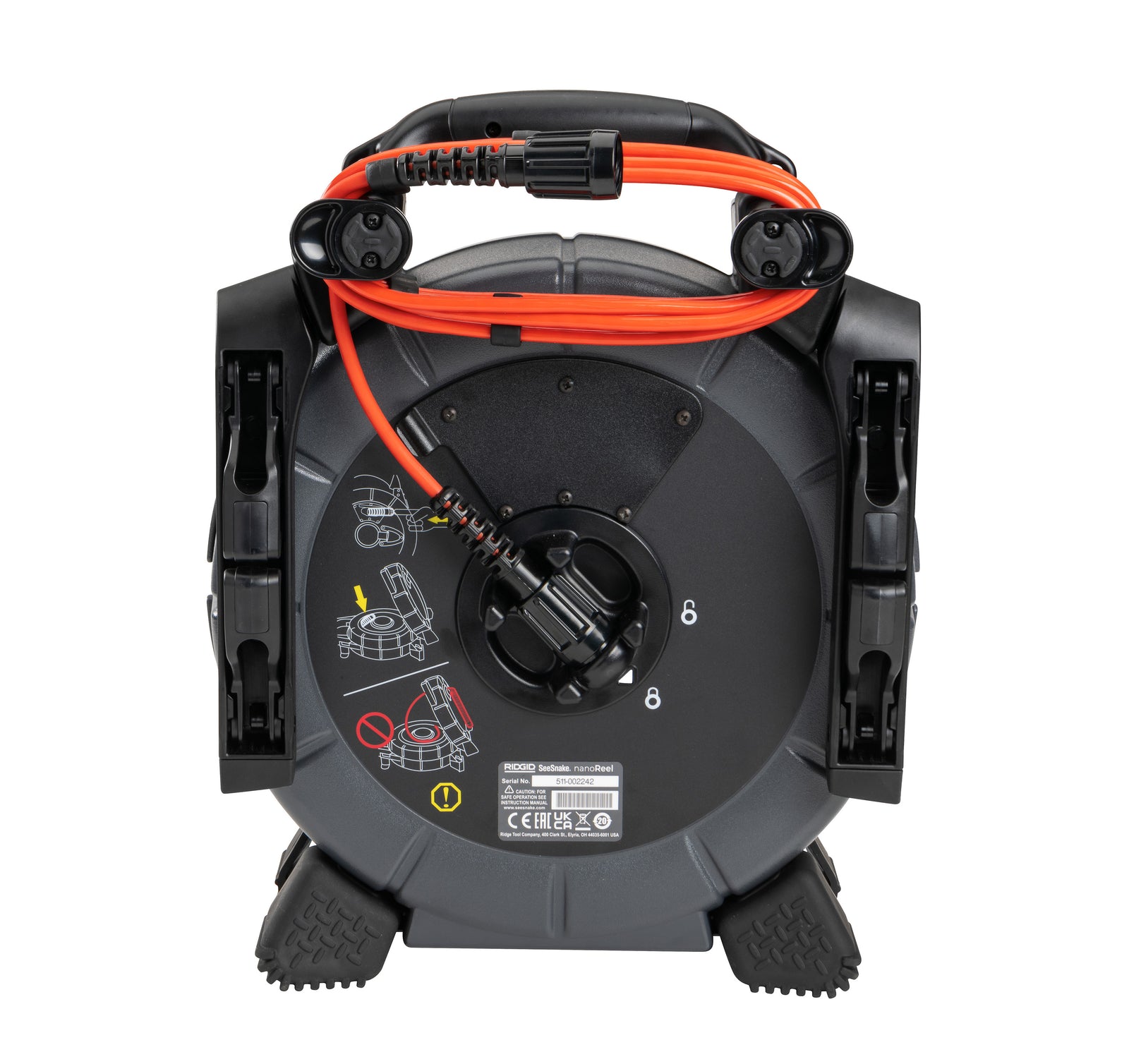

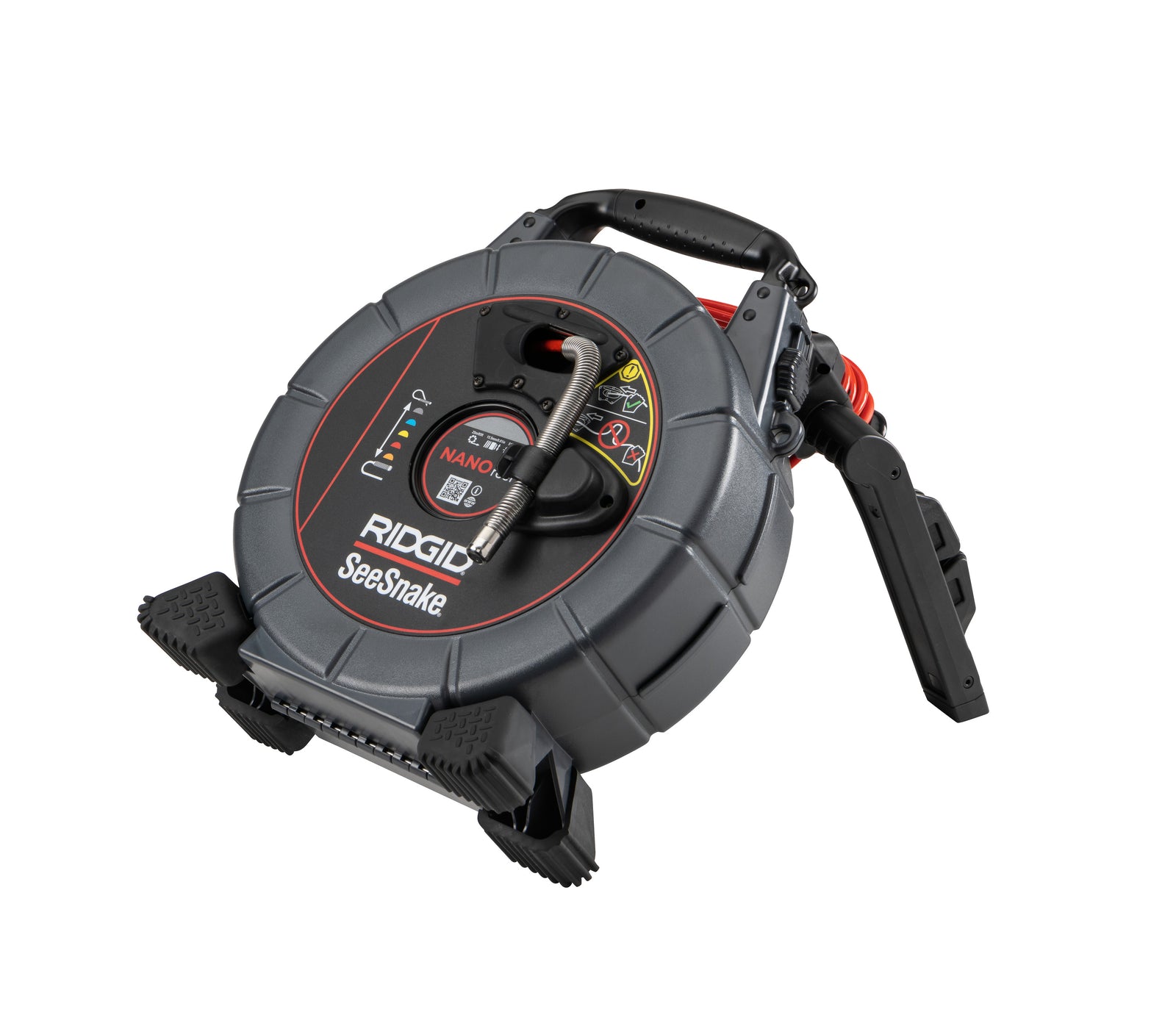

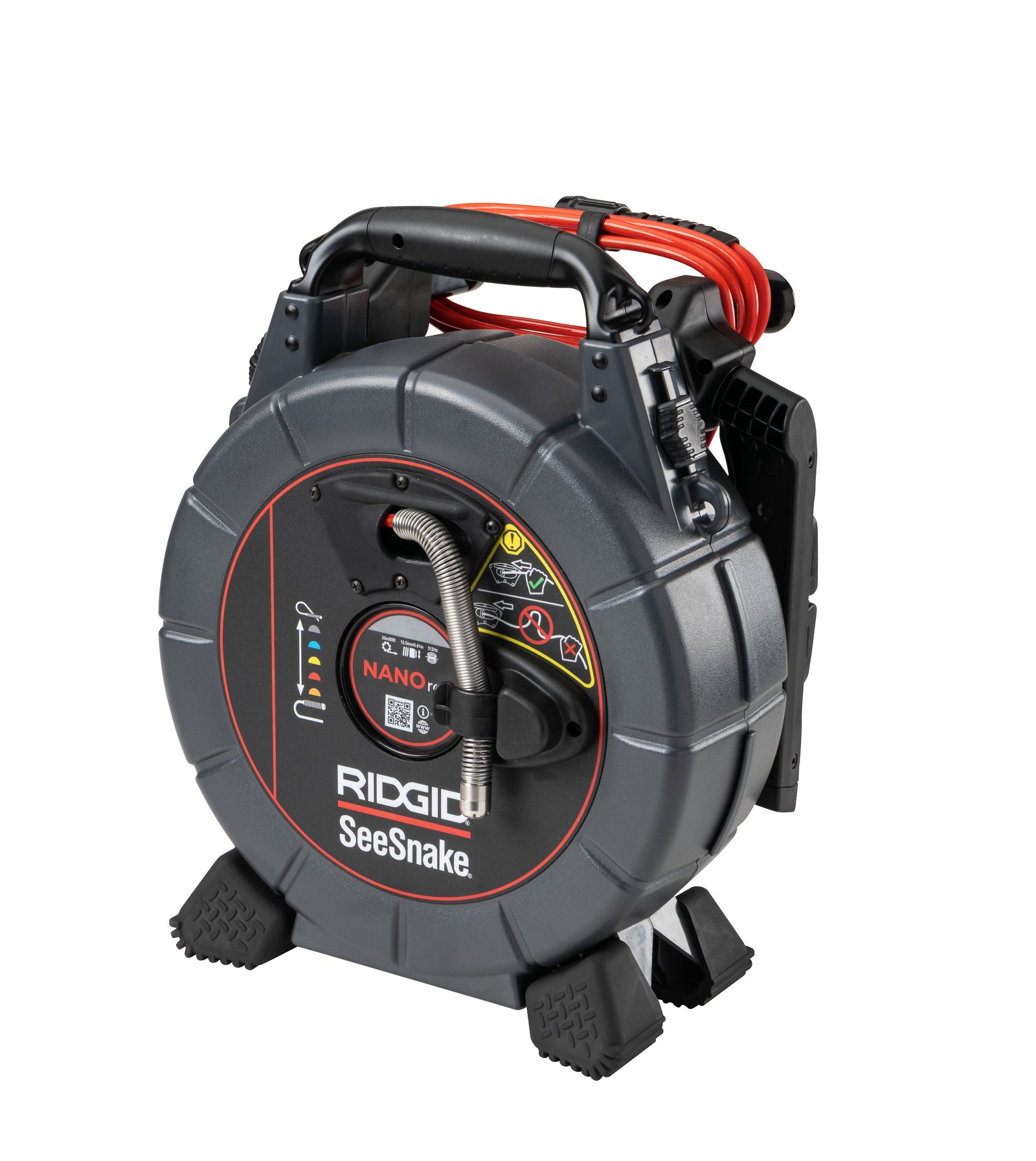

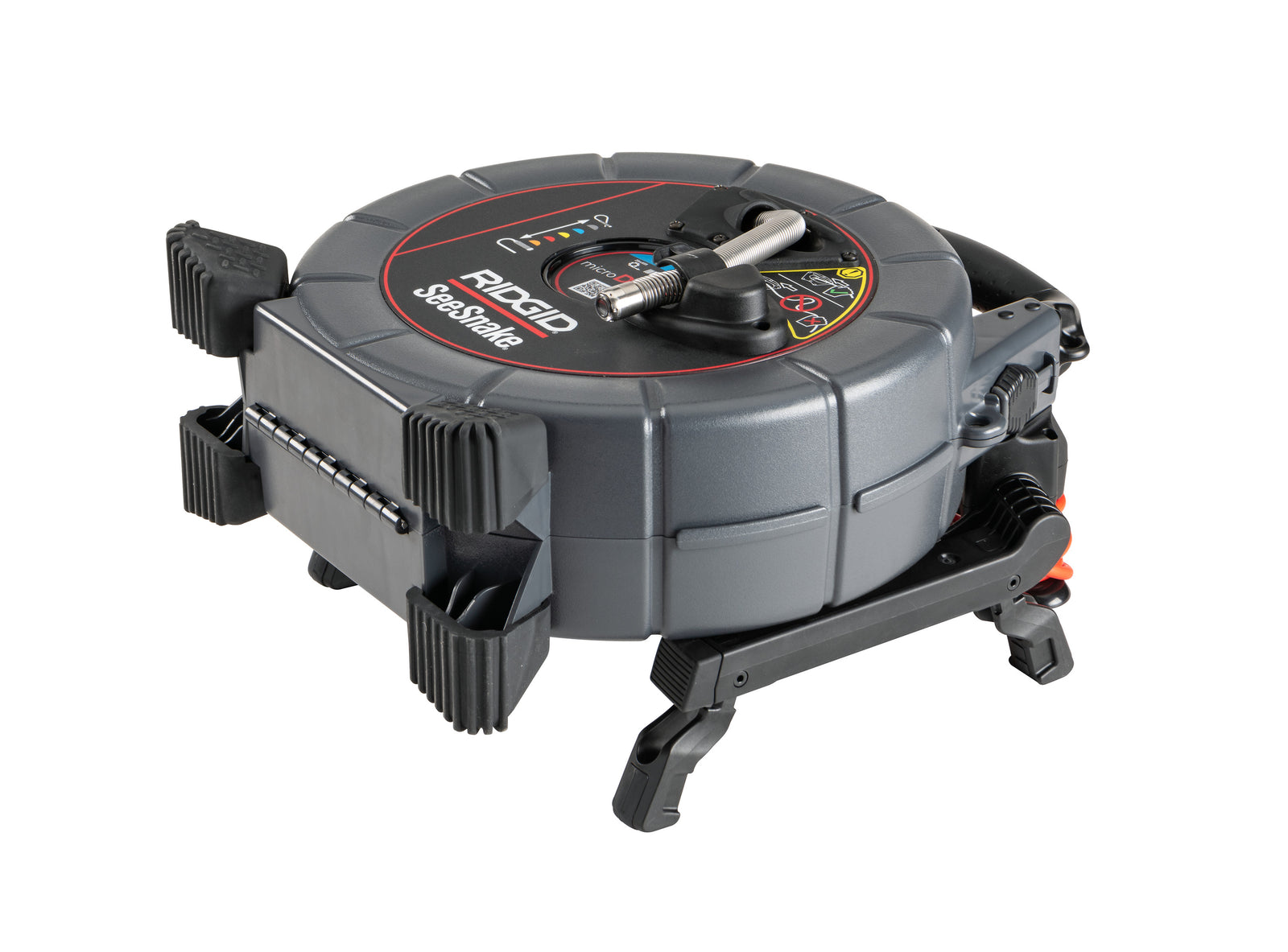

RIDGID nanoReel + CA350x Camera system | 77598

RIDGID nanoReel + CA350x Camera system is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

For 3/4" (20mm) to 2" (50mm) pipes, passes 90° bends in most 30mm lines.

For 3/4" (20mm) to 2" (50mm) pipes, passes 90° bends in most 30mm lines.

Key features

• RIDGID HQx Live
• RIDGID CA-350x Inspection Camera

Product information

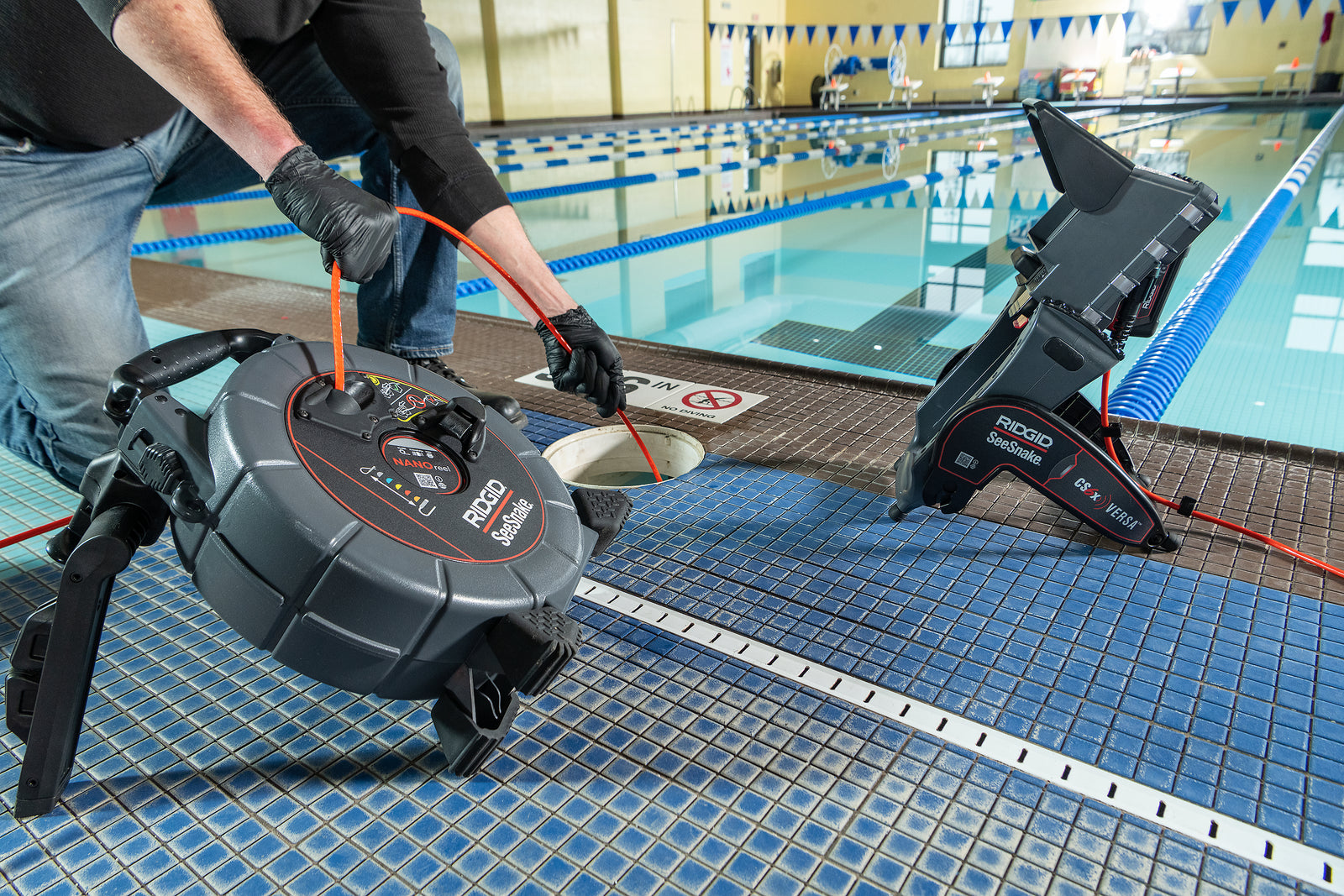

Applications where only borescopes could reach can now be inspected using the NanoReel. Boiler tubes, supply lines, sprinkler systems and a wide array of speciality applications can all be inspected using the NanoReel.

Small diameter and tight turn radius camera allows lines up to 25m to be inspected with tight turns in 25mm lines. The camera passes 90° bends from 30mm onwards in most pipes (depends on the conditions and pipe construction, this cannot be guaranteed).

Lightweight and compact unit allows for easy transport and efficient storage.

Connects to the micro CA-350x or any SeeSnake monitor.

Interchangeable drums let you change out the inner drum depending on the application.

Specification:

Camera Head: 0.62" (15.5mm)

Cable Length: 85' (25m)

Cable Diameter: 0.25" (6.3mm)

Line Capacity: ¾" to 2" (25mm to 50mm)

Weight: 9.5lbs (4.1 kg)

Length: 13.25" (33.7cm)

Width: 6.6" (16.8cm)

Height: 17.5" (44.5cm)

Resolution: 510 x 496 PAL

Ball Guide: 2 included

Sonde: 512 Hz

Waterproof Depth: 81m

Comes complete with the CA-350x Inspection Camera System.

* The NanoReel will traverse a 1" (25mm) straight pipe, but its ability to go past 90 turns will depend on the material and construction of individual pipes & joints. Test the material you intend to inspect to ensure the camera can pass through turns successfully. Some fittings in small diameter joints will allow passage of the camera in only one direction.

Introducing RIDGID HQx Live™, a new mobile platform that interfaces with RIDGID® SeeSnake Camera systems equipped with Bluetooth technology. Registration is quick and easy and the app provides valuable real-time data on your phone or tablet. Sign up today to start working faster…and smarter..

RIDGID is the trademark of Emerson Electric Co. or its affiliates and is registered in the U.S. and elsewhere. All third-party trademarks are those of their respective owners.

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 77598
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
