RIDGID SeeSnake microReel APX with TruSense Technology | 70808

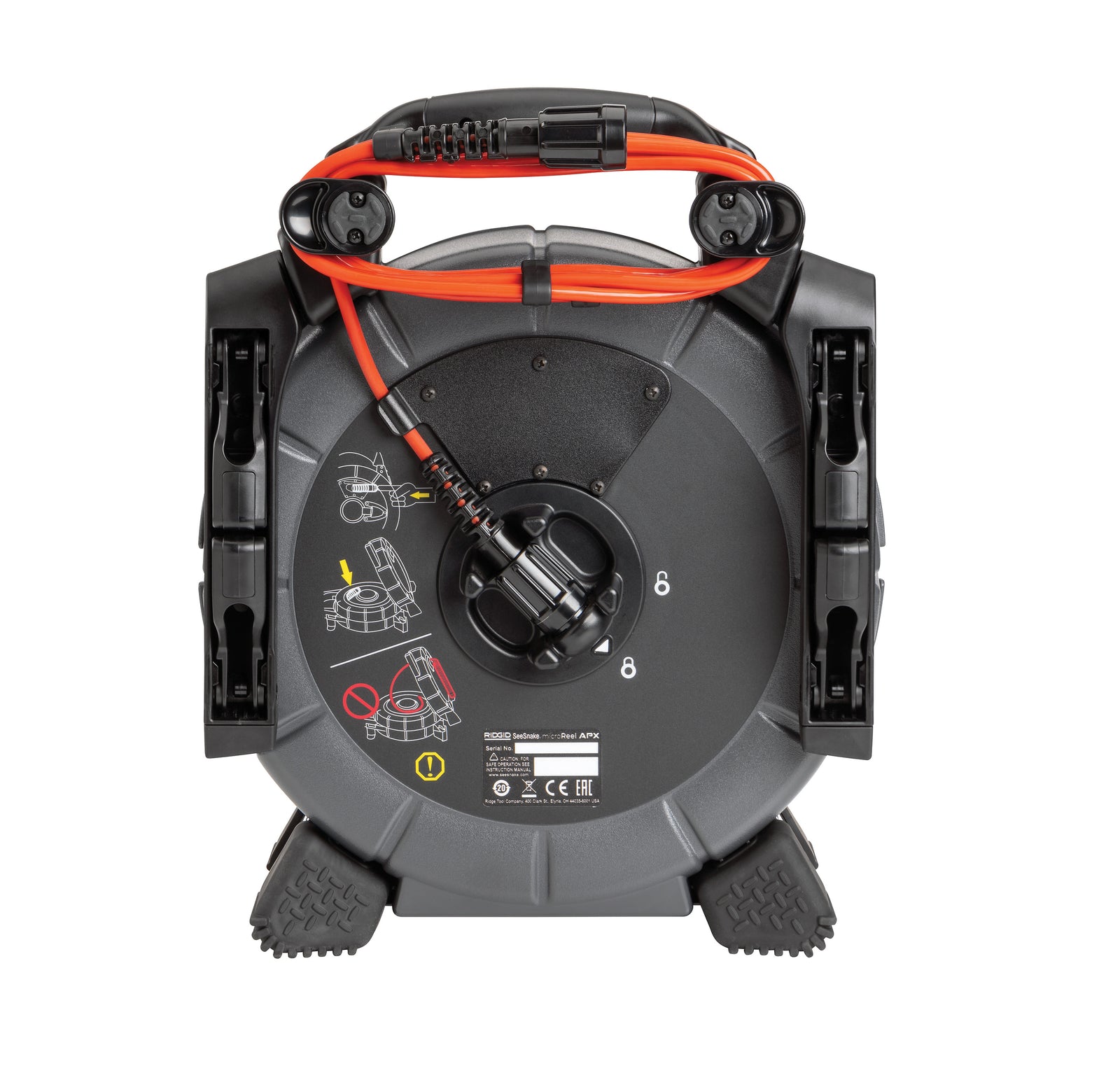

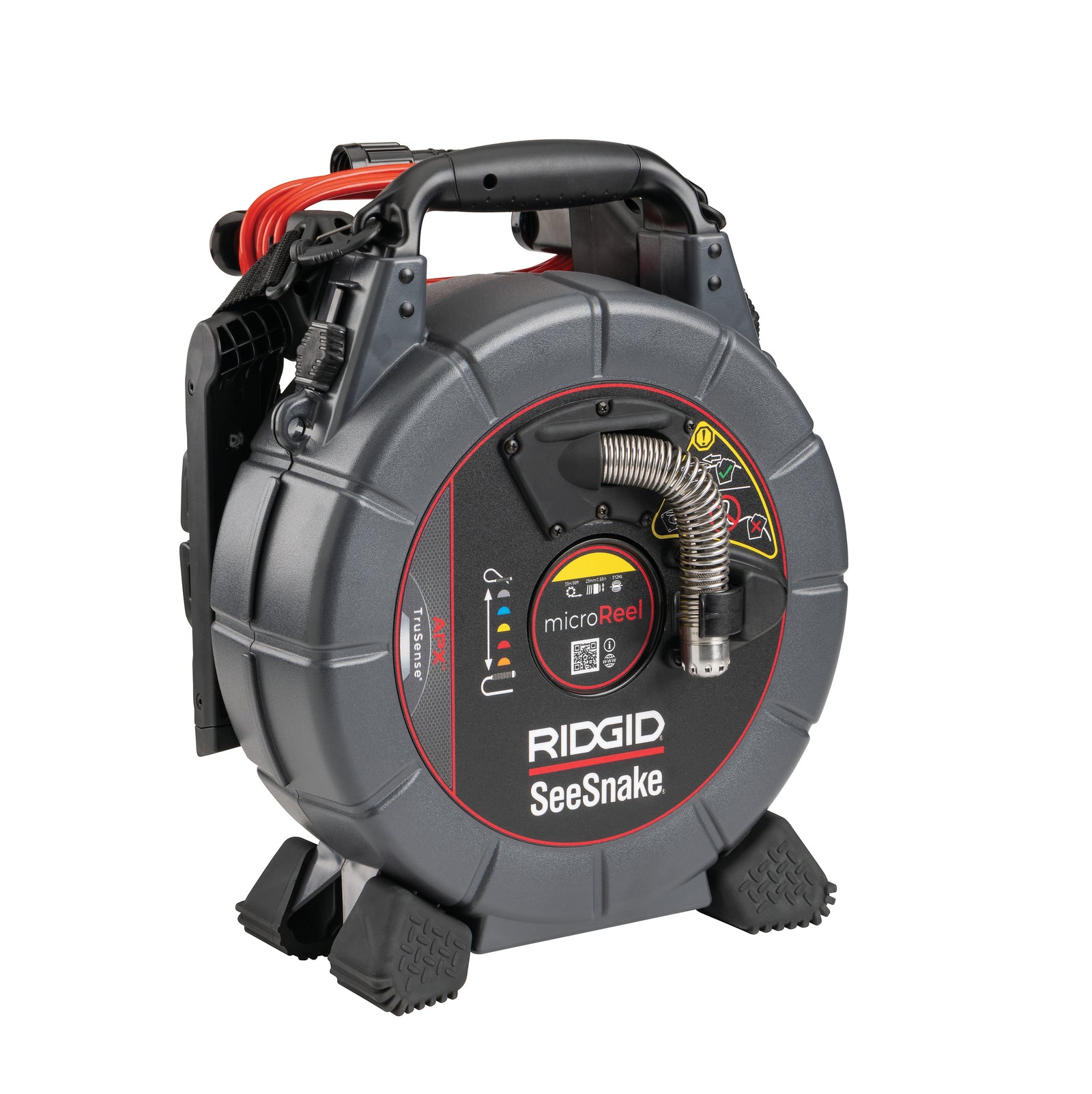

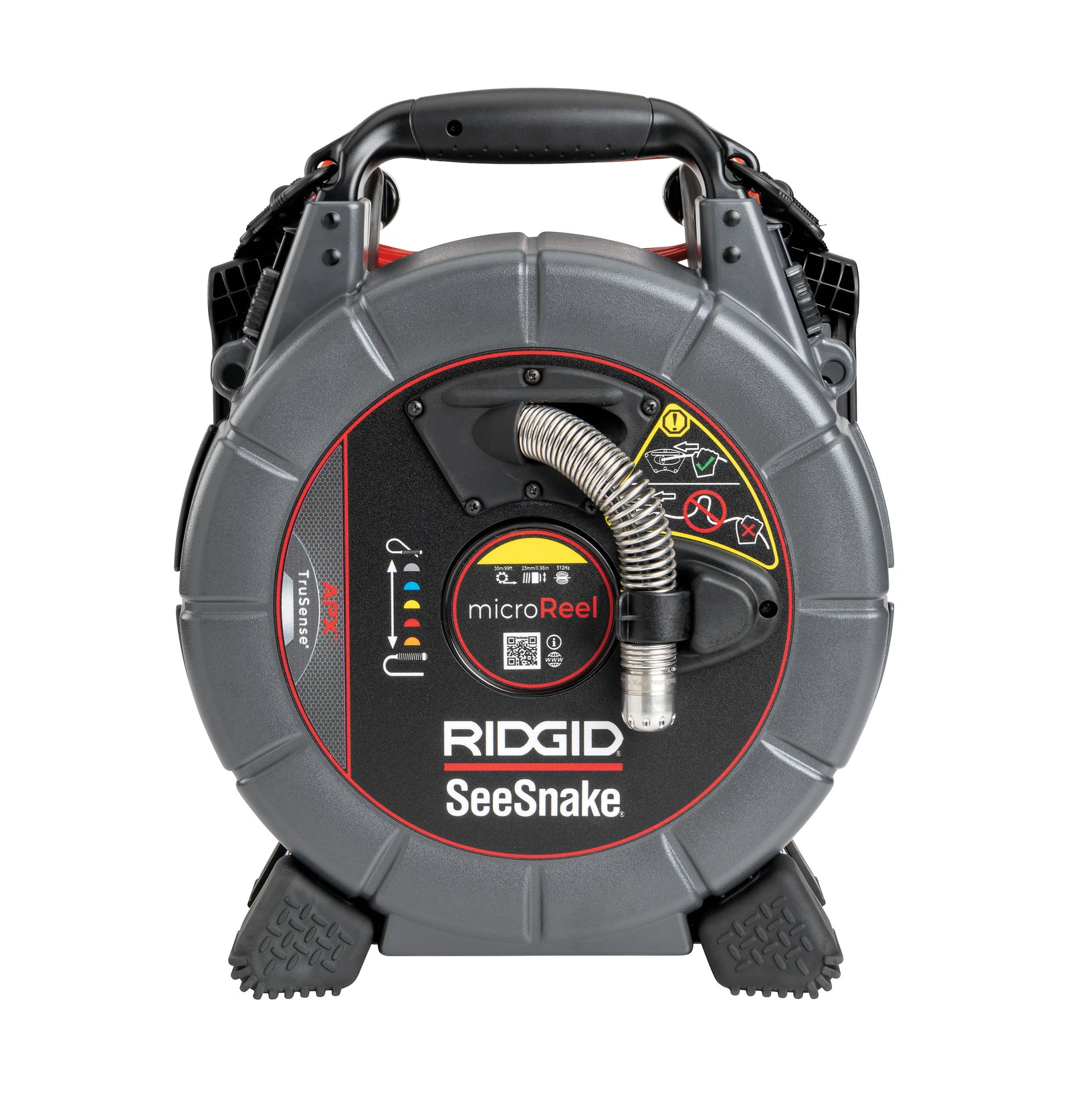

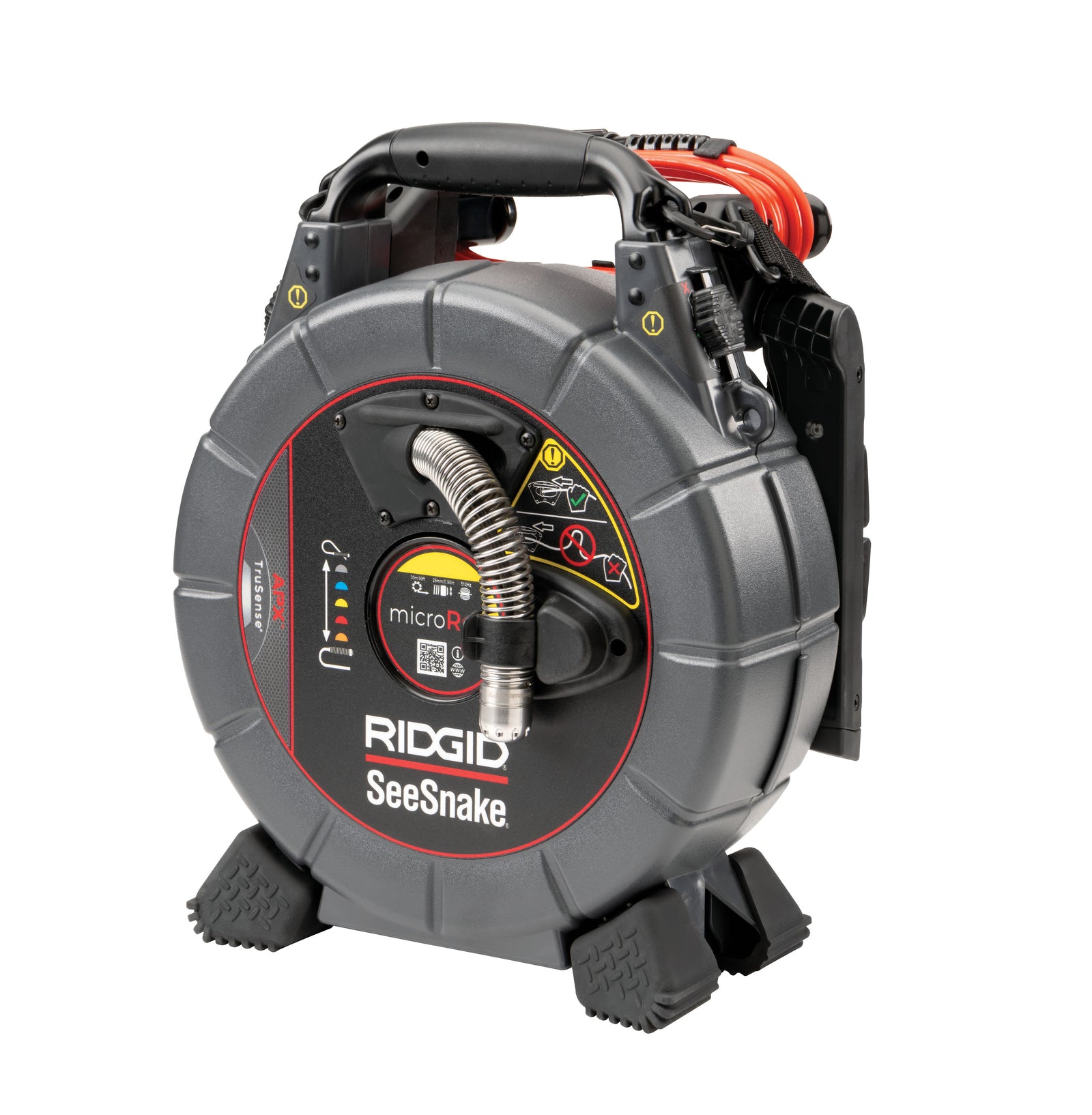

RIDGID SeeSnake microReel APX with TruSense Technology is a professional camera system for visual inspection of drains, pipes and confined internal spaces.

Key features

The RIDGID SeeSnake microReel APX with TruSense is a lightweight, compact and portable diagnostic inspection camera. It offers enhanced camera functionality including TruSense technology and auto-image rotation for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microReel APX includes a kickstand for use with the CSx Via™, and offers enhanced stability and usability when positioned at a 45° angle.

• Enhanced camera functionality- APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.

• Auto-image flip – Rotates camera image without any moving parts.

• Durability- Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.

• Portability- Lightweight and compact carrying case design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.

• Versatility- Multi-monitor compatibility with existing SeeSnake monitors.

• Visibility- Camera heads feature long-lasting high-efficiency LEDs that deliver better in pipe visibility and higher color accuracy.

• Traceability- Integrated 512 Hz sonde allows for easy line tracing and locating.

• Easy navigation- Mid-flex push cable ideal for small diameter (1 1/2″ to 4″ / 40 to 101 mm) and tight-turn radius inspections up to 100′ (30m)

Specifications

• Weight – 12.7 lbs (5.8 kg)

• Length – 13.3 in (337 mm)

• Width – 8.8 in (224 mm)

• Height – 16.2 in (411 mm)

• Drum Diameter – 12 in (305 mm)

• Camera Diameter – 25 mm

• Type – Fixed

• Resolution – 640 x 480

• Line Capacity – 1 1/2″ to 4″ (40 mm to 101 mm)

• Push Cable Length – 100 ft (30 m)

• Push Cable Diameter – 0.27 in (6.7 mm)

• Push Cable Minimum Bend Radius – 2.5 in (64 mm)

• Sonde – 512 Hz, Integrated

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 70808
• UPC / GTIN: 095691708083
• Product type: Drain Inspection Camera

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
