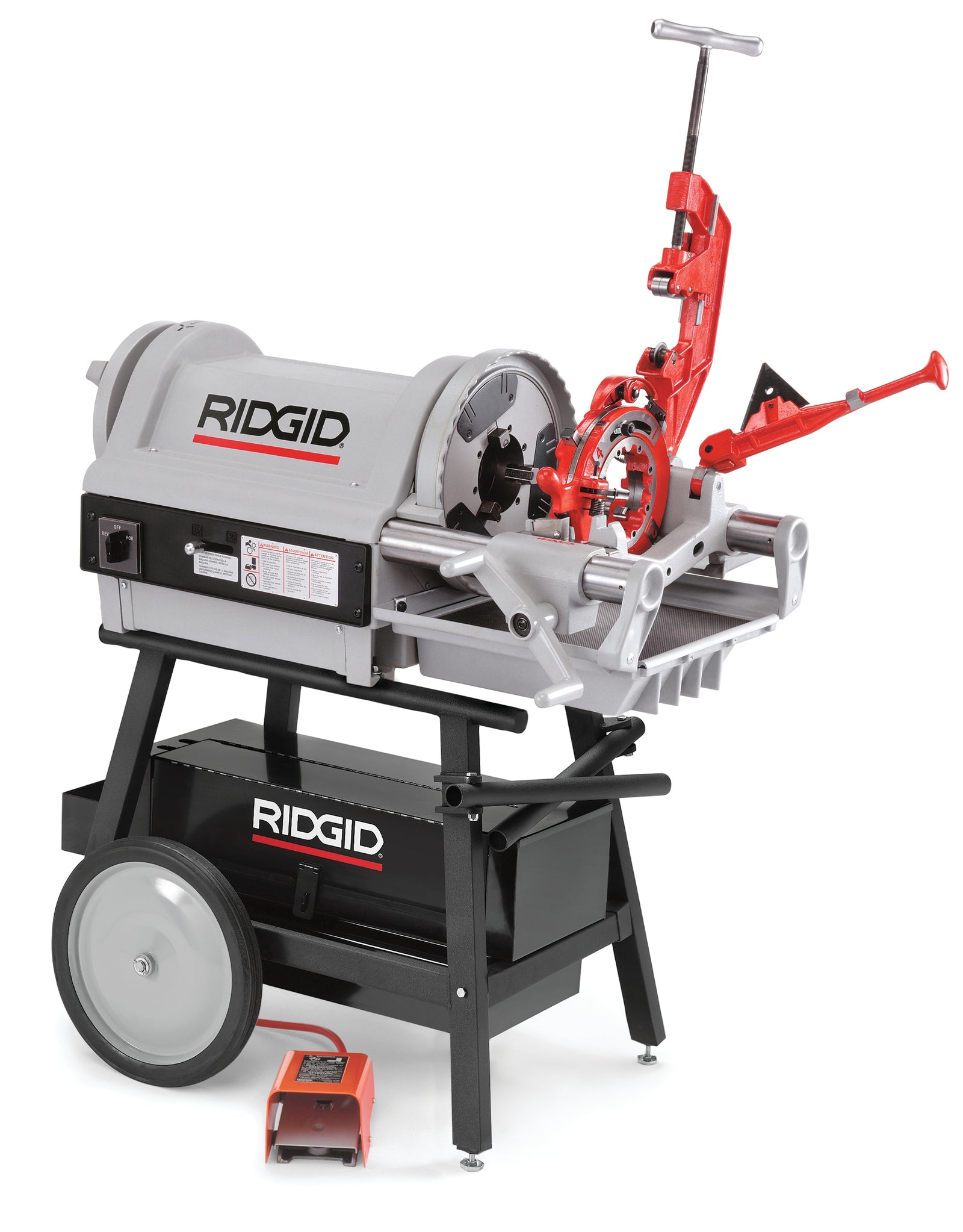

RIDGID 1224 115 V, 50 Hz Induction (BSPT) | 26112

RIDGID 1224 115 V, 50 Hz Induction (BSPT) is professional equipment for preparing and threading pipe.

Key features

RIDGID Model 1224 Threading Machine. 115 V, 50 Hz Induction (BSPT).

Capacities

• Pipe: 1⁄4 – 4″ (8 – 100 mm) 4 – 6″ (100 – 150 mm) with 161 Geared Threader.
• Bolt: 1⁄4 – 2″ (6 – 52 mm).

Features

• Threads 1⁄4 – 2″ pipe at 36 RPM and 21⁄2 – 4″ at 12 RPM.
• The Model 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
• An induction motor insures sound levels well within the limits set by the regulating authorities.
• A special capacitor-start / capacitor-run motor allows the Model 1224 to thread a full range of material where voltage drop is experienced.
• 1⁄4 – 2″ Universal Die Head; 21⁄2 – 4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
• Constant and proper lubrication of dies and workpiece with through-head oiling.

Technical Specifications

• Motor: 1,1 kW, single-phase, 50 Hz induction type.
• Switches: Reverse / Off / Forward, heavy-duty, rotary-type and integral foot switch.
• Spindle Speed: 36/12 RPM.
• Gear Box: Two-speed gear box 3:1 ratio.
• Chuck: Hammer-type with replaceable rocker-action jaw inserts.
• Rear Centering Device: Cam action.
• Cutter: Model 764 full-floating, self-centering 1⁄4 – 4″ with F-229 cutter wheel.
• Reamer: Model 744, 1⁄4 – 4″ blade-type.
• Oiling: Through die head.
• Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow.

Product identification

• Brand: RIDGID
• Manufacturer part number / MPN: 26112
• UPC / GTIN: 095691261120
• Product type: Threading Machine

UK supply and support

Rausch UK is a RIDGID Authorised Repair Centre and provides UK technical support, service and after-sales assistance for professional RIDGID equipment.
