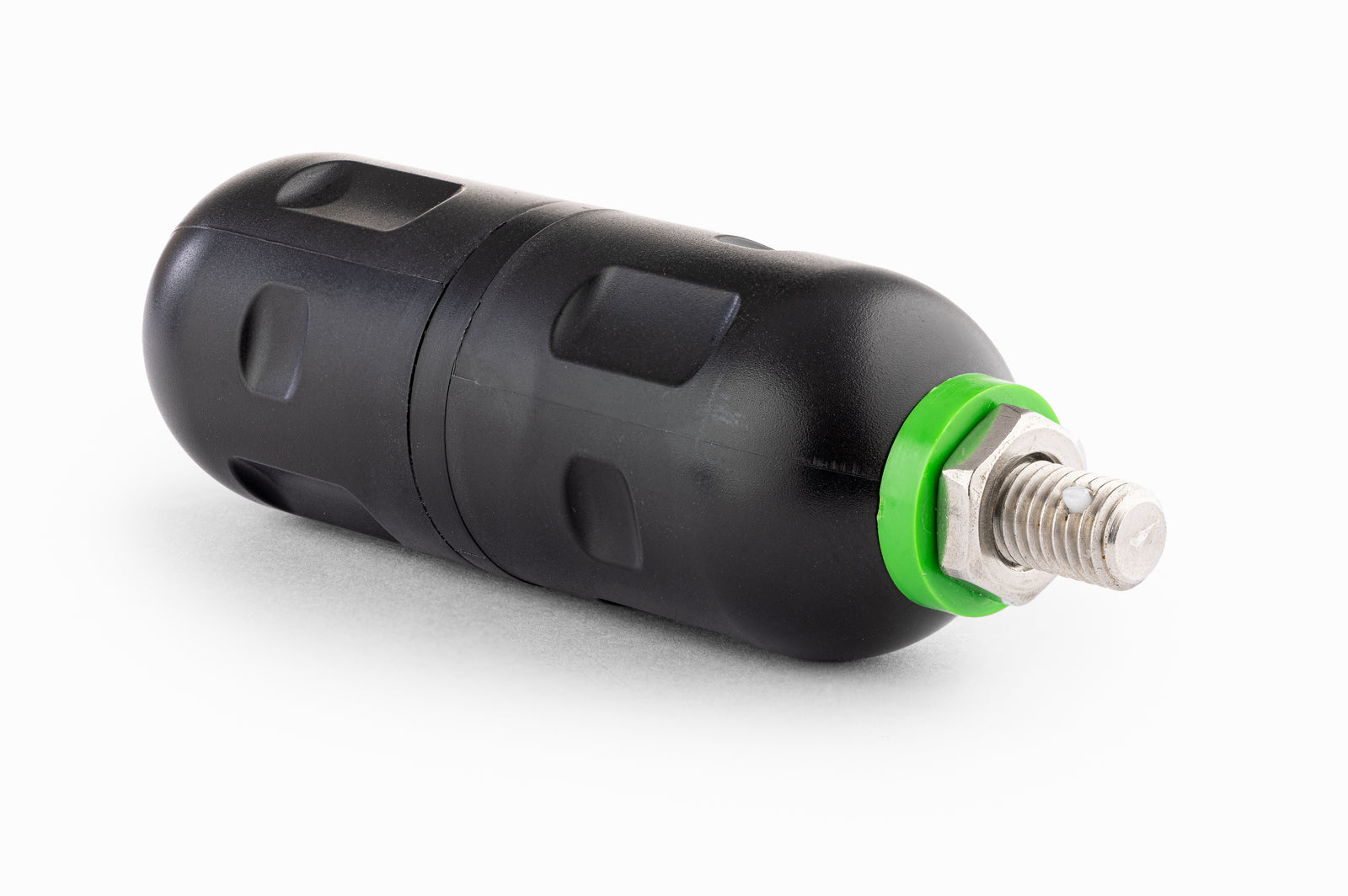

Rausch 8kHz Rodding Sonde – Alternative Frequency Pipe Locator | 370-101

The Rausch UK 8kHz Rodding Sonde is a robust, self-contained and waterproof locating transmitter designed for tracing underground pipes, drains and ducts and pinpointing the position of blockages, collapses and other underground features.

Operating at 8.192kHz, this version provides a useful alternative where the standard 33 kHz locating signal is difficult to detect due to the pipe construction, surrounding ground conditions or other interference.

The sonde can be attached to Cobra Rods, Flex Rods, Drain Rods and other suitable push-rod systems using its M10 threaded connection. Once inside the pipe or duct, it transmits a continuous 8kHz signal which can be located from above ground using a compatible receiver operating at the same frequency.

Why Choose the 8kHz Sonde?

The 8kHz model is designed for applications where a conventional 33 kHz sonde signal is weak, difficult to distinguish or unsuitable for the locating conditions.

• 8.192kHz locating frequency
• Ideal when 33 kHz locating is difficult
• Useful where pipe or surrounding ground conditions affect the locating signal
• Suitable for tracing underground drains, sewers, pipes and ducts
• Helps pinpoint blockages, collapses and other underground features
• Compatible with suitable 8kHz cable locators and receivers
• Can be attached to Cobra Rods, Flex Rods and Drain Rods

Key Features

• 8kHz continuous transmitting signal
• Green colour codingfor easy frequency identification
• Male M10 threaded connectionwith Nyloc threadlock
• Up to7m (23ft) locating depth
• IP68 rated construction
• ABS plastic and stainless-steel construction
• Powered by a single AA alkaline battery
• 100+ hours battery lifeat 18°C
• Compact 38mm diameter body
• Designed for demanding professional locating applications

Typical Applications

• Tracing underground drainage pipes
• Locating buried ducts and pipework
• Locating where a 33 kHz signal is difficult to detect
• Pinpointing underground blockages or collapses
• Establishing pipe routes before excavation
• Locating the position of a Cobra Rod or push rod underground

Technical Specification

How It Works

Attach the sonde to a compatible Cobra Rod, Flex Rod, Drain Rod or other suitable push rod and feed it through the pipe or duct. The sonde continuously transmits an 8.192kHz signal which can then be detected from above ground using a compatible locator.

Following the signal allows the operator to establish the route of the underground pipe and pinpoint the sonde's position. This makes it easier to locate blockages, collapsed sections, connections and other areas requiring investigation before excavation or repair work begins.

Robust Site Construction

Rausch UK Rodding Sondes are designed for professional site use. The sonde features a durable ABS plastic and stainless-steel construction, an IP68 environmental rating and an M10 connection fitted with a Nyloc insert to help prevent the sonde unscrewing during normal operation.

The sonde is also designed to withstand drops of up to 1 metre onto concrete or similar surfaces.

Available Accessories

• 3-46-SA– Sonde Adapter, M5 / M10
• 3-911-SA– Sonde Adapter, M10 / M12
• 3-9-FM10EF– Female M10 End Fitting for 9mm Cobra Rods
• 3-BR-SA– Universal Drain Rod Sonde Adapter, Uni / M10

Other Frequencies Available

Rausch UK Rodding Sondes are available in three locating frequencies, allowing the appropriate sonde to be selected for the application:

• 370-100 – 33 kHz Rodding Sonde:Orange. The standard UK frequency for general-purpose underground location.
• 370-101 – 8kHz Rodding Sonde:Green. Designed for applications where locating at 33 kHz is difficult.
• 370-102 – 512 Hz Rodding Sonde:Red. Particularly suited to locating blockages within cast iron pipes.

Always use the sonde in accordance with the manufacturer's instructions and with locating equipment capable of receiving the selected transmission frequency.
